Description

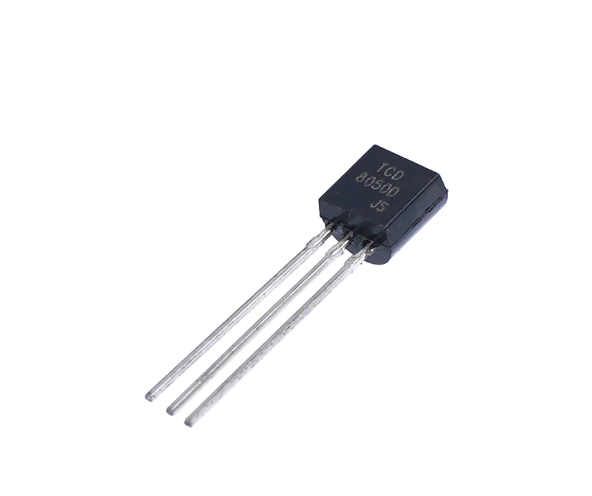

It's a CD 8050 CDIL NPN Transistor. This is a NPN type 2A 40V high quality transitor. This Transistor has a very low fall time making it suitable for switching‚ for converter and inverter applications. It's collector-Base‚ collector-Emitter and Emitter- Base voltage is respectively 40V‚ 25V‚ 6V and It's collector current is 2A.
Features
- It is a NPN Transistor
- It's Collector -Base Voltage is 40V
- It's Collector -Emitter Voltage is 25V
- It's Emitter Base Voltage is 6V
- It's Collector Current is 2A
- It's Collector Power Dissipation is 1W
- It's Operating And Storage Junction Temperature Range is -55 to +125 Degree C
| Specifications | |
|---|---|
| Origin | India |
| Part Number | CD 8050 |
| Mounting Style | Through Hole |
| Power Dissipation | 1W |
| Current | Collector Current- 2A |
| Voltage | Collector -Emitter Voltage 25V |
| Brand | CDIL |
| Type | NPN Transistor |
| Package | 8050 |
