CAPUF Embedded ESP32 Programmer V2 USB to UART Controller Board

Save 8%
Sold By: HatchnHackSKU: J06-52

Price:
Sale price₹ 389.00 Regular price₹ 424.00

Tax included Shipping calculated at checkout

Min Qty:

Description

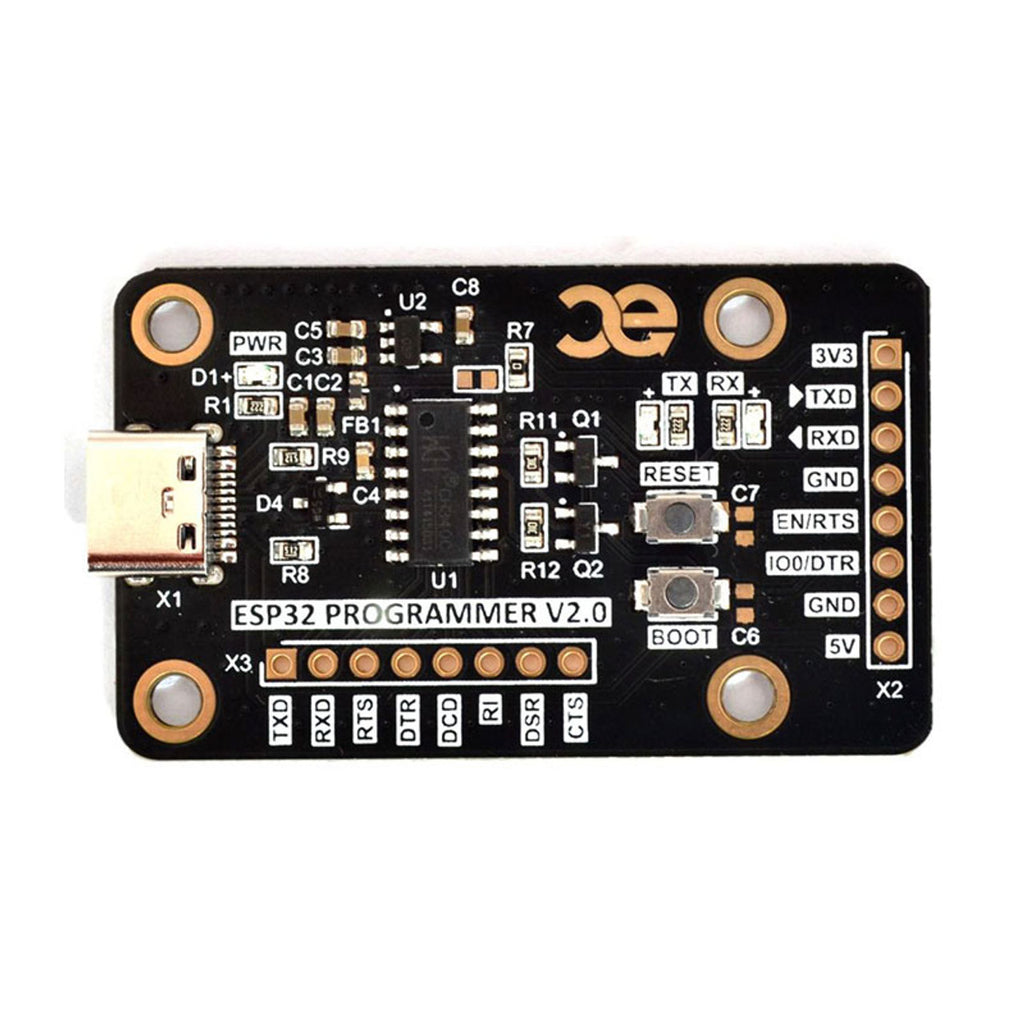

The ESP32 Programmer V2 USB-C offers a convenient and safe method to program and reprogram microcontroller units (MCUs) in various settings, including production and field environments. This tool effectively mitigates the potential hazards linked to direct USB to UART connections on customized hardware. With its USB-C interface, this programmer enables effortless connectivity in any orientation using either a USB-A to USB-C cable or a USB-C to USB-C cable. Additionally, it features LEDs that display power, RX, and TX status, along with a switch for reset and boot functions.

Features:

  • Secure Programming: The programmer prioritizes security to prevent unauthorized access or meddling, ensuring a controlled MCU programming process.
  • 6-Pin Connector: Comes with a standardized 6-pin connector (RX, TX, 3.3V, GND, EN, IO0) for a reliable and consistent connection.
  • CH340C: Employs the reliable CH340C USB to UART Bridge for efficient communication.
  • Voltage Options: Supports both 3.3V and 5V, providing flexibility to accommodate varying voltage needs.
  • Included Header: Features a 2.54mm pitch header for easy connectivity (sold separately).
  • Optional X3 Connector: Offers an extra X3 connector to expose essential signals as needed.
