Description

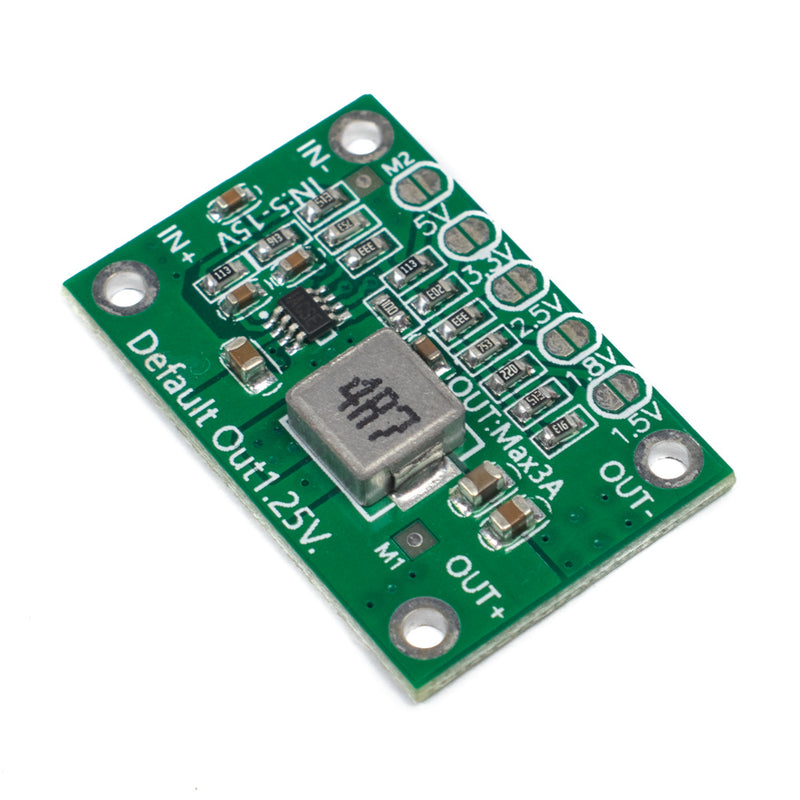

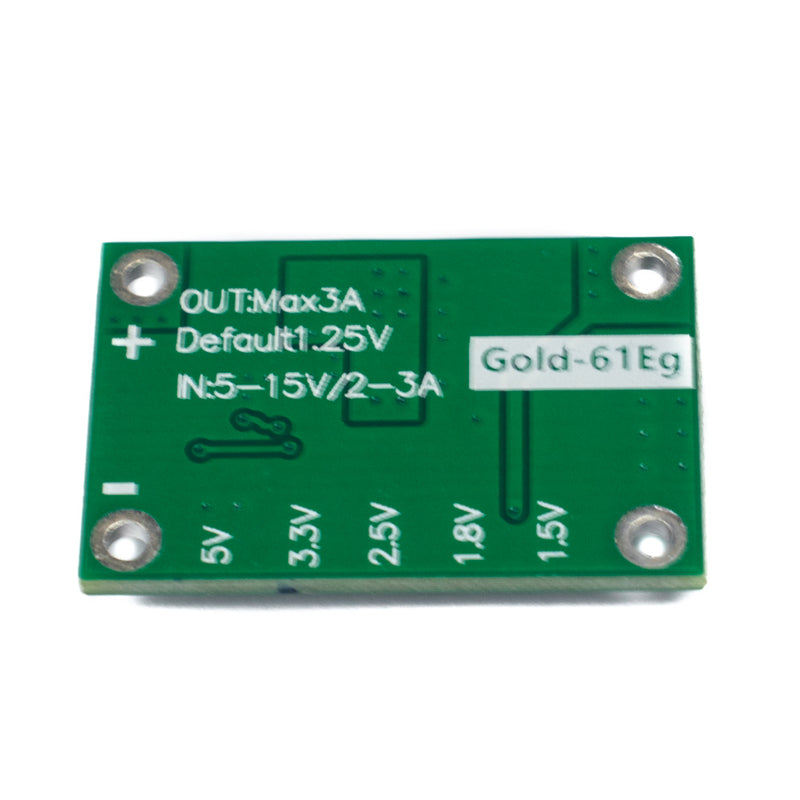

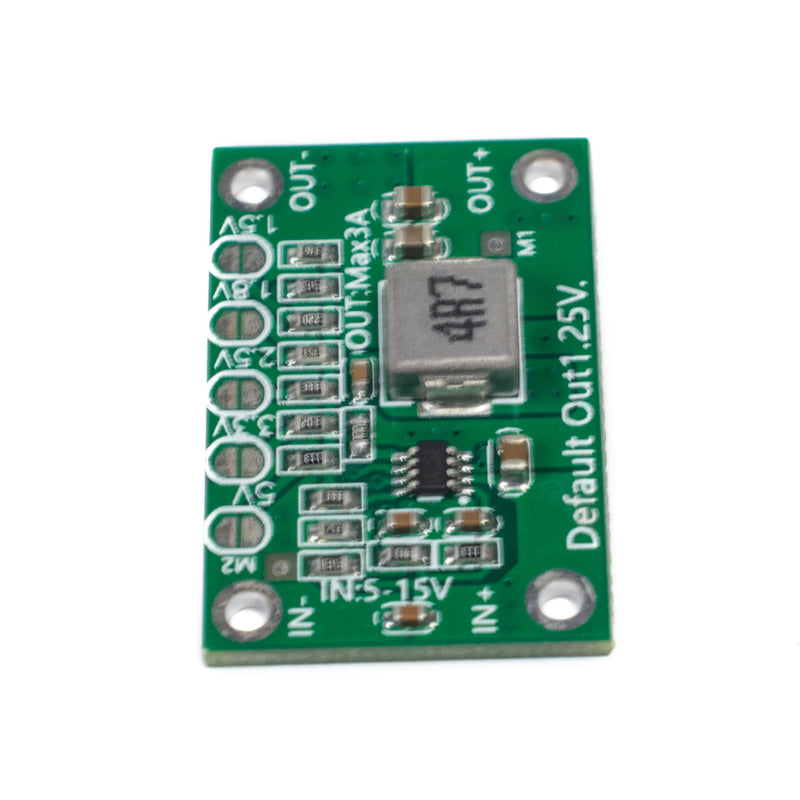

This adjustable CA-1235 dc to dc converter module uses MP1495 chip, synchronous rectifier output. 5-16V voltage input, 1.25V 1.5V 1.8V 2.5V 3.3V 5V output, 3A current output, short-circuit point for output voltage adjustment, default output voltage 1.25V. Three lines of power maintenance are suitable for a variety of small-signal LCD TV power supply replacements. The power efficiency is up to 90%.
Specifications
| Model | CA-1235 |
| Product Type | DC-DC Buck Converter |
| Input Voltage Range | 5V-16V DC |
| Output Voltage | 1.25V, 1.5V, 1.8V, 2.5V, 3.3V, 5V |
| Max. Output Current | 3A |
| Dimensions | 30x20x4.4mm |
