Description

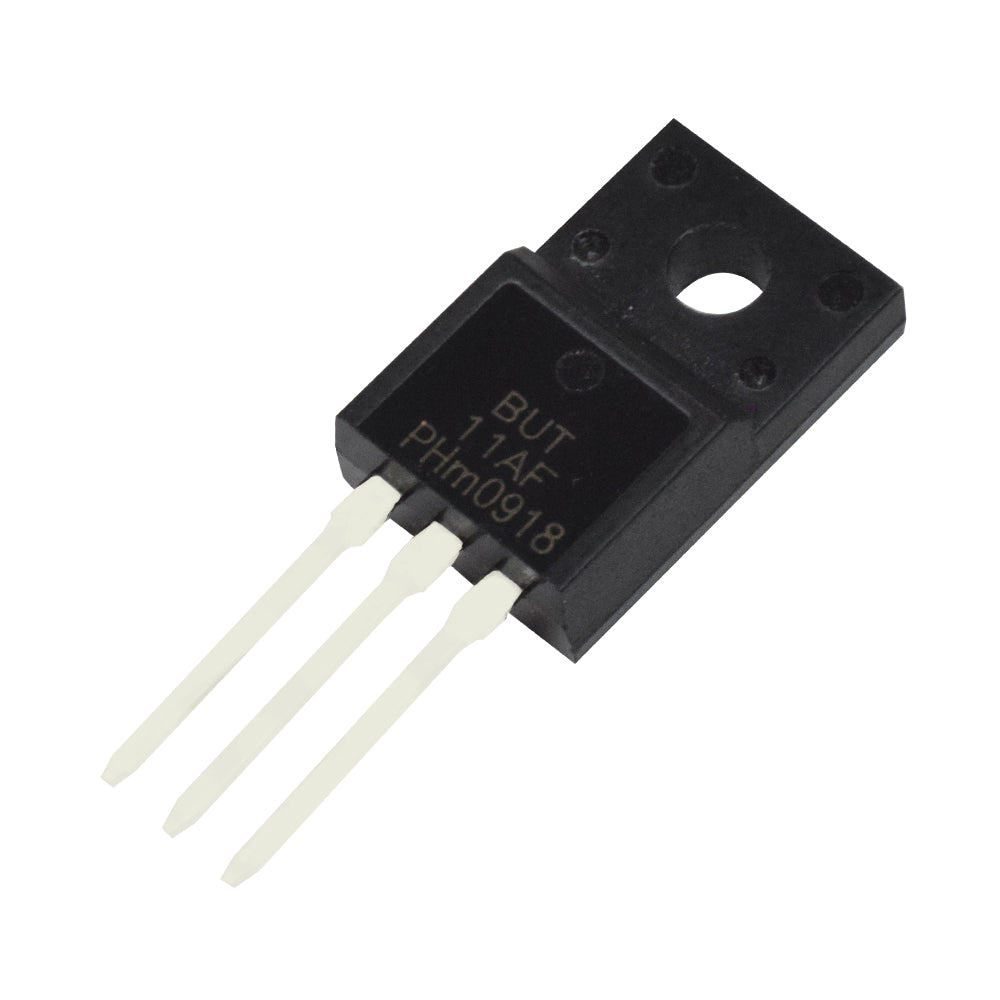

BUT11AF is a High-voltage, high-speed glass-passivated NPN power transistor in a SOT186 envelope with an electrically insulated mounting base, intended for use in converters, inverters, switching regulators, motor control systems.
Features:
- High Voltage, High Speed
- With TO-220Fa Package
Applications:
- Converters
- Inverters
- Switching Regulators
- Motor Control Systems
Specification:
| Model | BUT11AF |
| Type | Power Transistor |
| Mounting Type | Through Hole |
| Transistor Material | Si |
| No. of Pin | 03 |
| Collector-Base voltage | 1000 V |
| Collector-emitter voltage | 450 V |
| Collector current (DC) | 5A |
| Collector current peak value | 10A |
| Total power dissipation (Ths < 25 °C) | 20W |
| Package | TO-220F |
| Country of Origin | China |
