Description

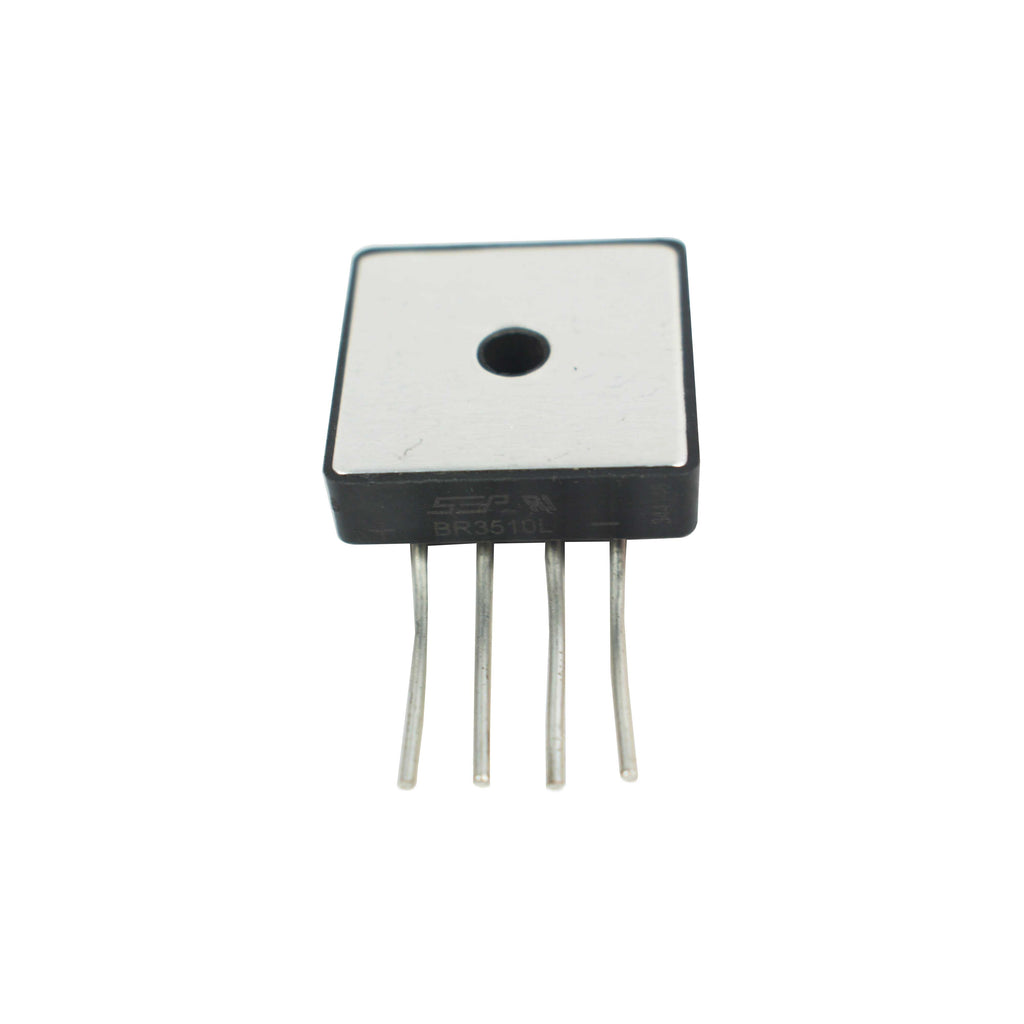

The BR3510 is a bridge rectifier diode commonly used for single-phase applications. The maximum AC voltage that this IC can withstand is around 700V hence can be used for a broad range of applications. The maximum DC current that this IC can handle is 35A. This IC has a reverse breakdown voltage of 1000V and a low forward voltage drop of 1.V. It has high efficiency and a high surge current capability of 400A. If you are looking for a compact IC for rectification application this can be a good choice.
Features
- Superior thermal design
- 400A surge rating
- ¼ “ universal faston terminals
- Hole thru for #8 screw
Specification
| Model | BR3510 |
| Type | Bridge rectifier diode |
| Working Peak Reverse Voltage | 1000 V |
| RMS Reverse Voltage V(RMS) | 700 V |
| Average Forward Rectified Output Current | 35 A |
| Peak Reverse Current at 25°C | 10µA |
| Operating and Storage Temperature Range | -55°C to 150°C |
| Quantity | 50 |
| Country of Origin | China |
