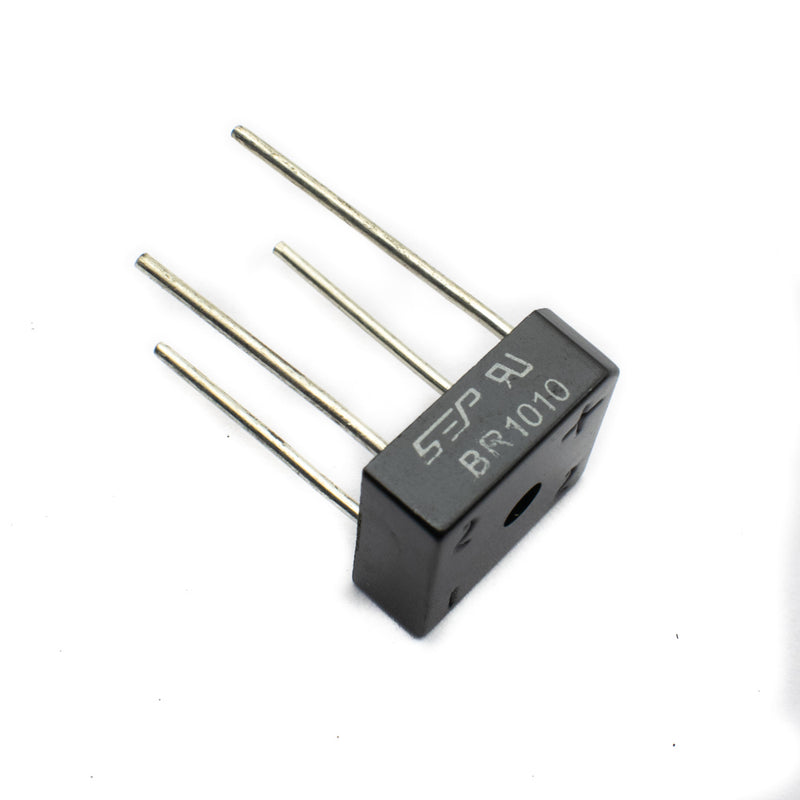

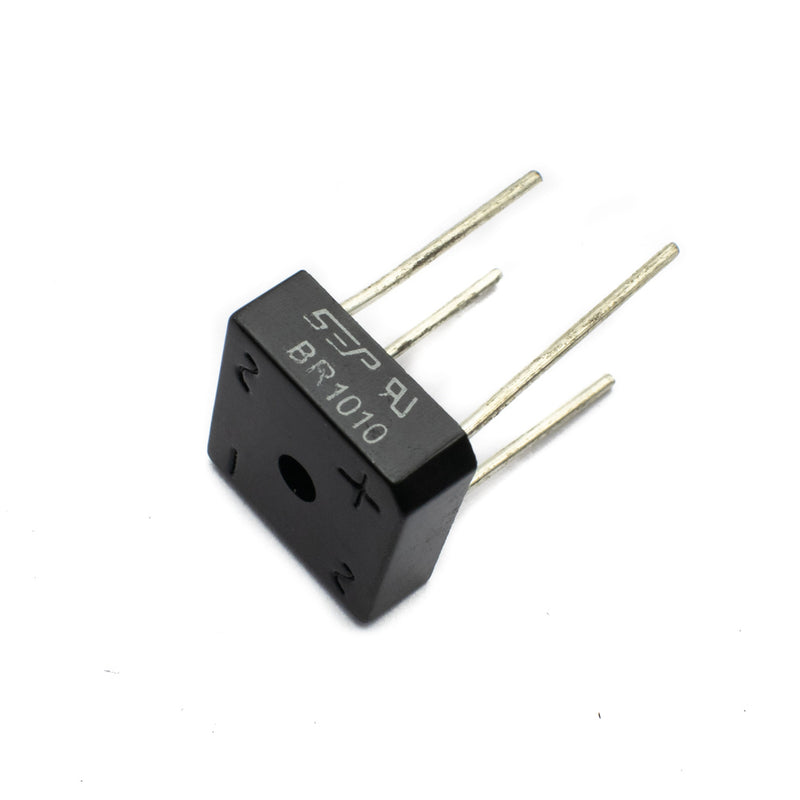

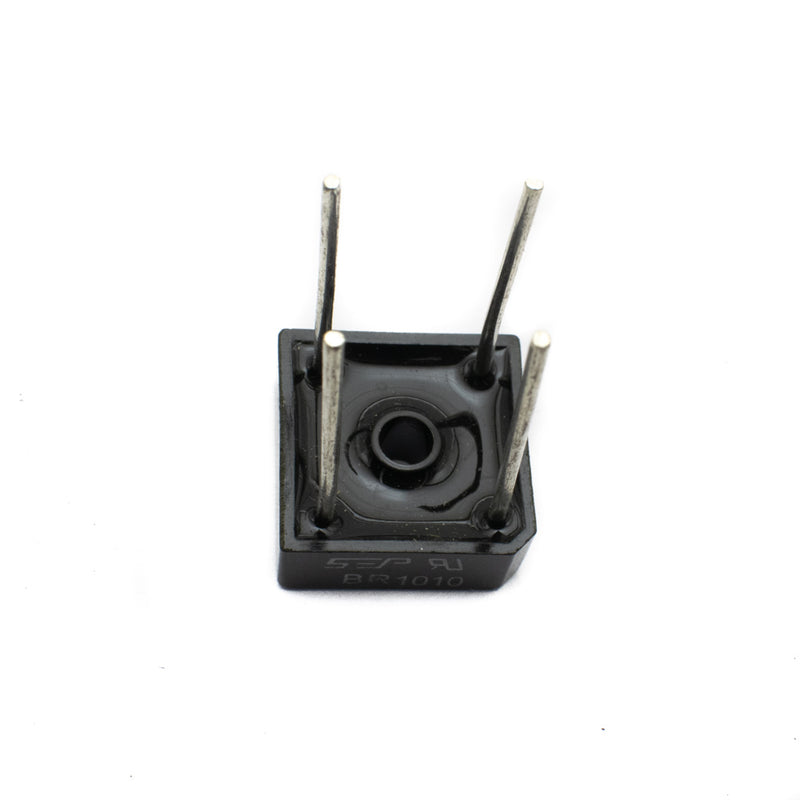

BR1010 10A 1000V Single-Phase Silicon Bridge Rectifier

Sold By: HatchnHackSKU: 9R18

Price:
Sale price₹ 22.00

Tax included Shipping calculated at checkout

Min Qty: 1

Description

The BR1010 is a bridge rectifier diode commonly used for single-phase applications. The maximum input AC RMS voltage of this IC is 700V hence can be used for a broad range of applications. The maximum DC current that this IC can handle is 10A. This IC has a reverse breakdown voltage of 1000V and a low forward voltage drop of 1.1V. It has high efficiency and a high surge current capability of 200A. If you are looking for a compact IC for rectification application this can be a good choice.

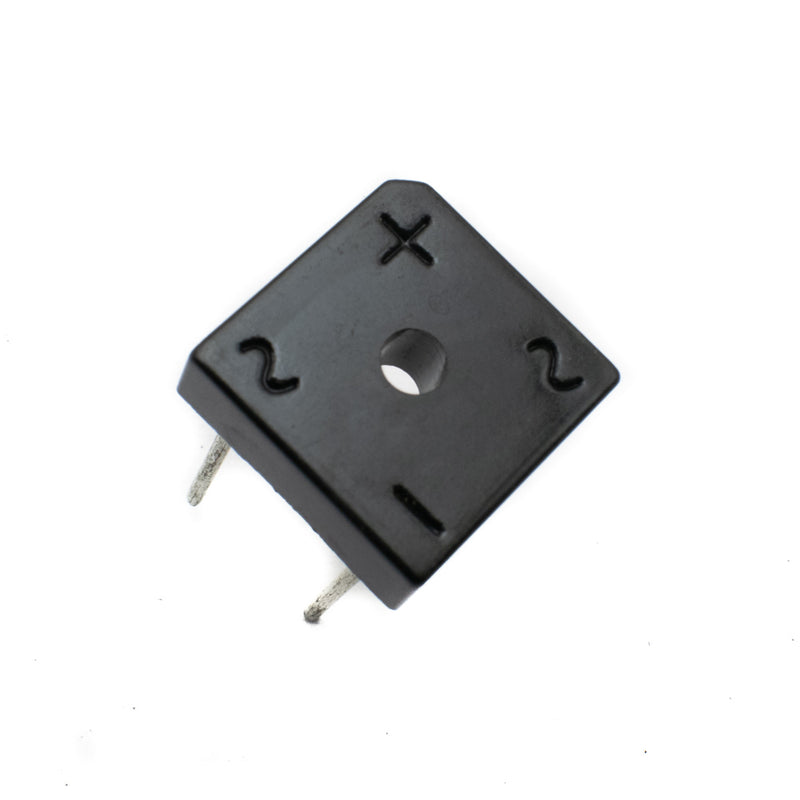

PINOUT

Pin Number

Pin Name

Pin Description

1

Positive

Positive of Rectified Output

2

AC Input

AC Input

3

Negative

Negative of Rectified Output

4

AC Input

Ac Input



FEATURES

  • 200 forward surge current capability
  • Low forward voltage drop



Specifications
Input Voltage 50-1000V
Maximum RMS Bridge Input Voltage 700V
Maximum DC Blocking Voltage 1000V
Maximum Average Forward Output Current  10A at 50C, 6A at 100C
Maximum Forward Voltage 1.1V
Operating Temperature Range -55°C to +150°C
Dimensions  19mm x 19mm x 7.2mm
