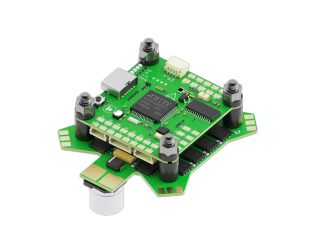

BLITZ ATF435 Stack (E55S 4-IN-1 ESC)

The BLITZ ATF435 Stack (E55S 4-IN-1 ESC) is a high-performance flight controller and ESC stack designed for racing and freestyle drones. This stack combines the ATF435 Flight Controller with the E55S 4-IN-1 ESC, providing a compact and efficient solution for drone builds requiring powerful control and stability.

Features:

1. Powerful AT32F435RGT7 MCU and ICM42688 gyro for precise flight control and stability.
2. 32MB Blackbox flash memory for logging and tuning flight performance.
3. DPS310 barometer for accurate altitude sensing.
4. AT7456E OSD chip for on-screen telemetry display.
5. 6 UART ports for versatile peripheral connectivity.
6. 4 motor outputs with SH1.0 connectors for easy motor connection.
7. SmartAudio/IRC Tramp VTX protocol support for video transmitter control.
8. LED controller for customizable lighting effects.
9. Beeper pad for audible alerts during flight.

Package Includes:

1 x BLITZ  ATF435 Flight Controller

1 x BLITZ E55S 4-IN-1 2-6S ESC

1 x wire harness for ATF435 Flight controller

1 x silicon grommets
