Description

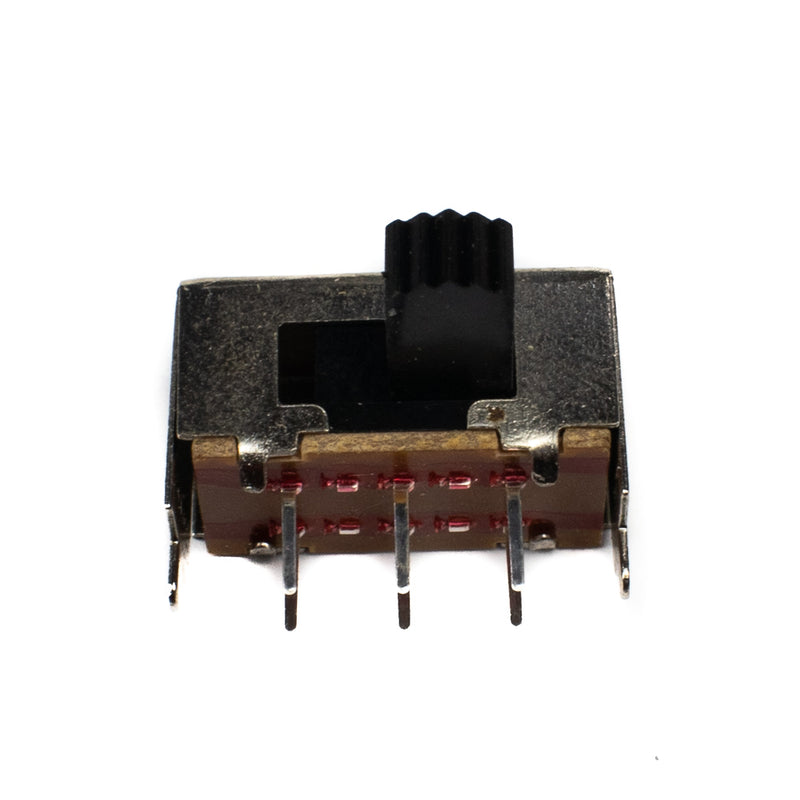

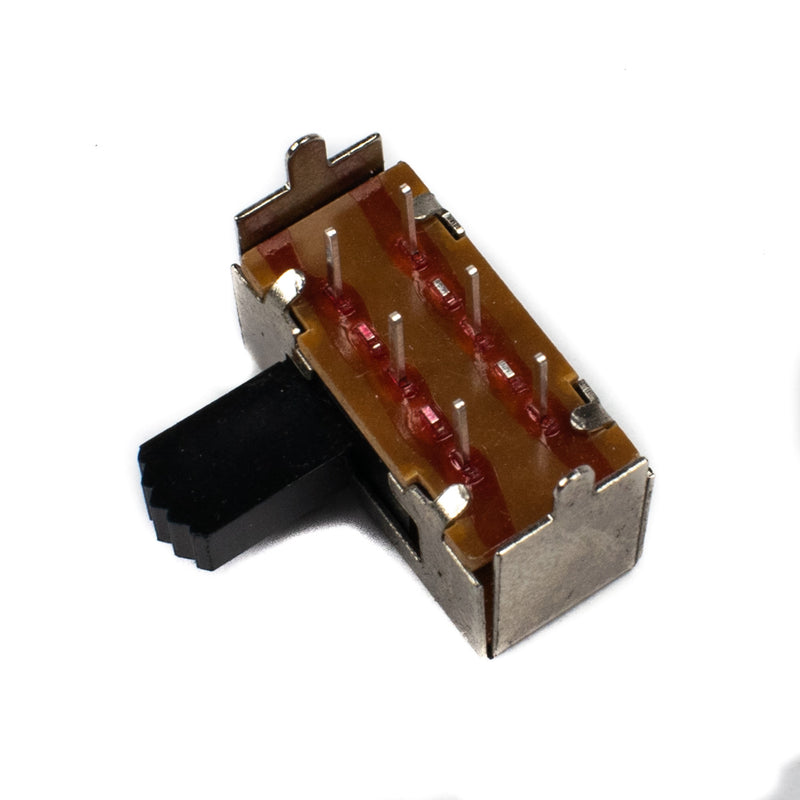

This is a big size multipurpose DPDT Slide Switch perfect for mounting on circuit boards. It is an ON-ON type switch that can be used as a general-purpose ON/OFF switch. This switch can also be used to control the direction of rotation of a DC Motor.
Specifications
| Rating | 3A @250V |
| Contact Resistance | <50mΩ |
| Max. Voltage | 500V |
| Type | DPDT |
| Function | ON-ON |
| No. of Pins | 6 |
| Size | 20x18.4x15.4mm |
| Country of Origin | China |
