Description

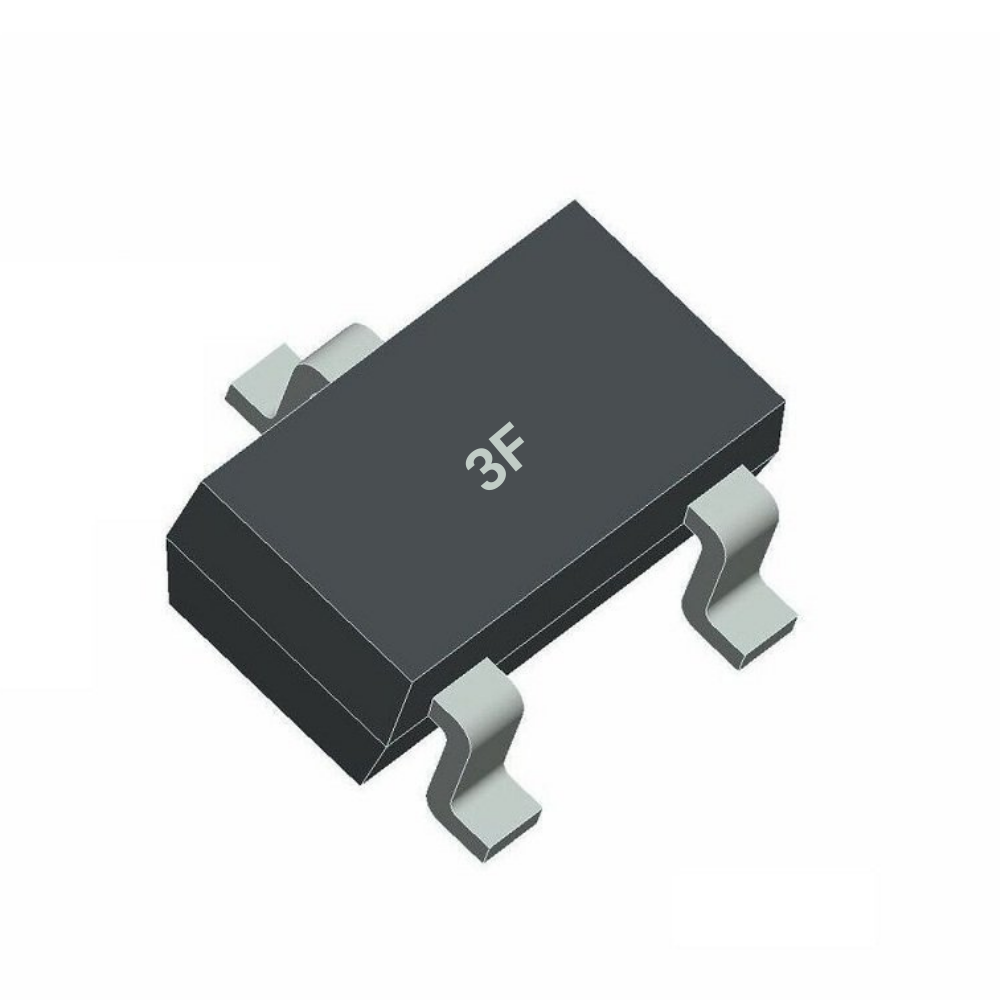

The BC857 transistor is a PNP general-purpose transistor. This transistor's primary uses are general-purpose switching and amplification. The BC857 PNP transistor is packaged in a tiny SOT-23 package. It operates on low current and voltage. It's an SMD version of the BC557 TH Transistor.
Features:
- Its general Purpose transistor
- Its mostly used in Switching Applications
- Its Mounting Style is SMD
Specifications
|
Part Number |
BC857 |
|
Mounting Style |
SMD |
|
Package |
SOT-23 |
|
Transistor Polarity |
PNP |
|
Collector-Emitter Voltage VCEO Max |
-45 V |
|
Collector-Emitter Voltage VCES Max |
-50V |
|
Collector-Base Voltage VCBO Max |
-50V |
|
Emitter-Base Voltage VEBO Max |
-5V |
|
Power Dissipation at Tamb=25C Ptot |
330mW |
|
Operating Temperature |
-55 to +150C |
|
Collector Cut-Off Current |
Max -15nA |
|
Transition Frequency |
150fT |
