Description

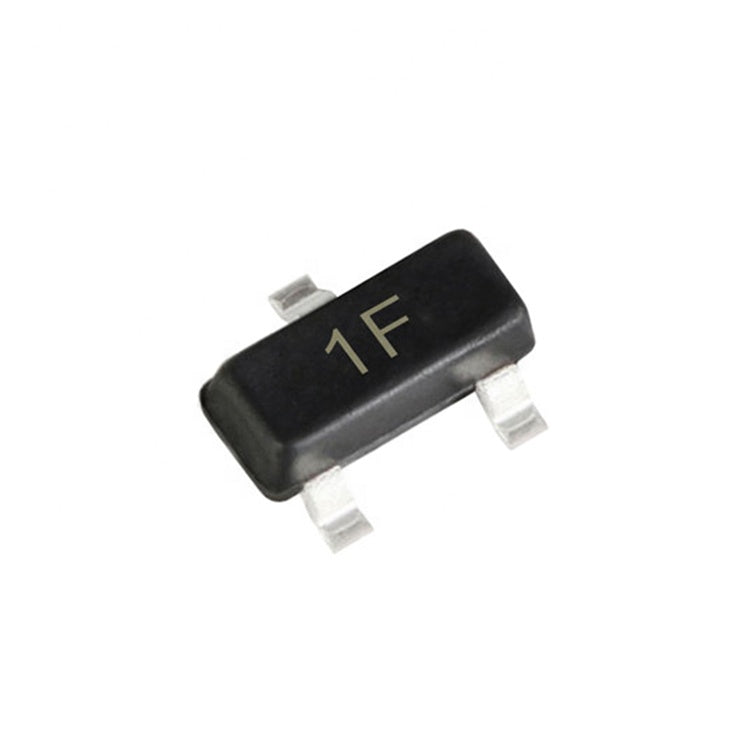

BC847B General Purpose Amplifier Transistor is widely used in transistor based amplifier and switching applications. This type of NPN general purpose transistor generally use in power supply, dc dc converter module .
Features:
- Its General purpose amplifier transistor
- Its used in switching applications
- Its polarity is NPN
- Its Collector emitter voltage is 45V
Specifications
| Part Number | BC847B |
| Transistor Polarity | NPN |
| Collector-Emitter Volt (Vceo) | 45V |
| Collector-Base Volt (Vcbo) | 50V |
| Collector Current (Ic) | 0.1A |
| hfe | 200-450 @100mA |
| Power Dissipation | 310mW |
| Current Gain Bandwidth | 300MHz |
| Package | SOT-23 |
| No. of Pins | 3 |
| Mounting Type | Surface Mount |
| Country of Origin | China |
