BBC Micro:Bit V2.2

BBC Micro:Bit V2.2 in India

If you are looking to start programming or would like an exciting device to get young people interested in coding – then the BBC micro:bit V2.2 is perfect for you!

Created by the BBC working in partnership with other brands, the micro:bit is a small, programmable computer that has been designed to inspire children and young people to learn about programming and electronics in a practical and fun way.

This single board computer has an impressive ARM Cortex m4 processor and 512KB of flash, making it a capable little device. The micro:bit comes in 4 colours and has various individually programmable inputs and outputs including a 5×5 LED matrix display, buttons, speakers, and microphone. The micro:bit also features a temperature sensor, accelerometer, touch-sensitive logo, and a built-in sleep/off mode.
It is compatible with lots of free online code editors designed for different knowledge levels across a number of different programming languages so you can find something to suit how you want to learn or teach. There are endless amounts of free projects, lesson plans and activities to try, so there is every reason to start your micro:bit journey today.

read more : Microbit vs Microbit V2

What's on Micro:Bit V2.2?

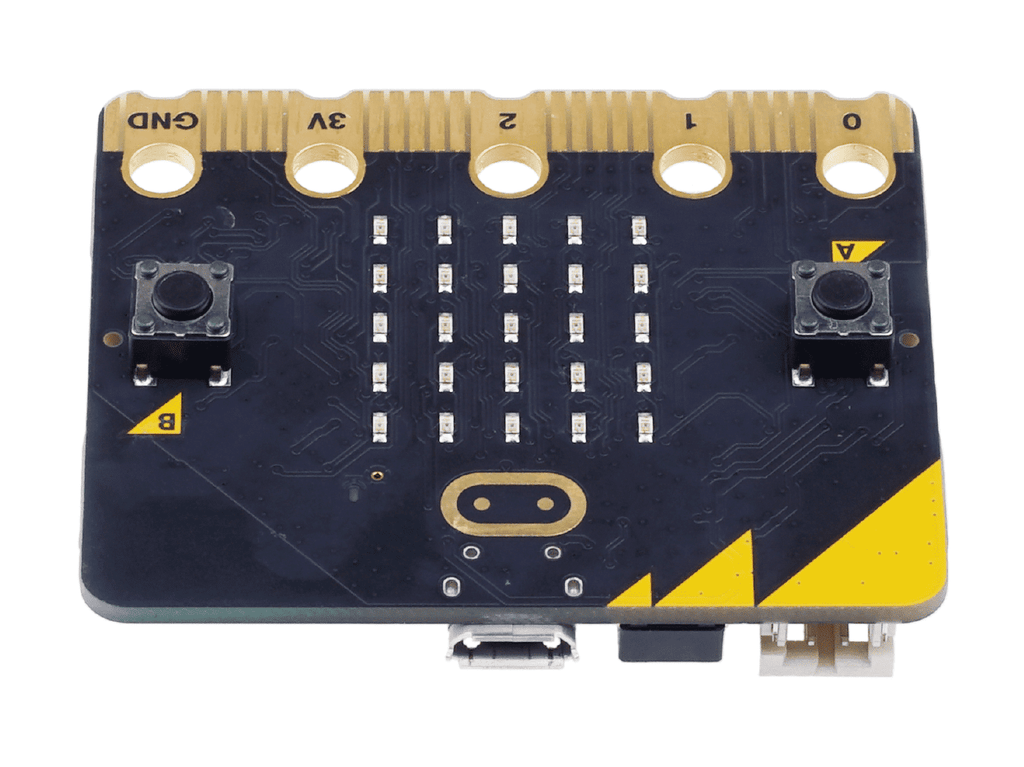

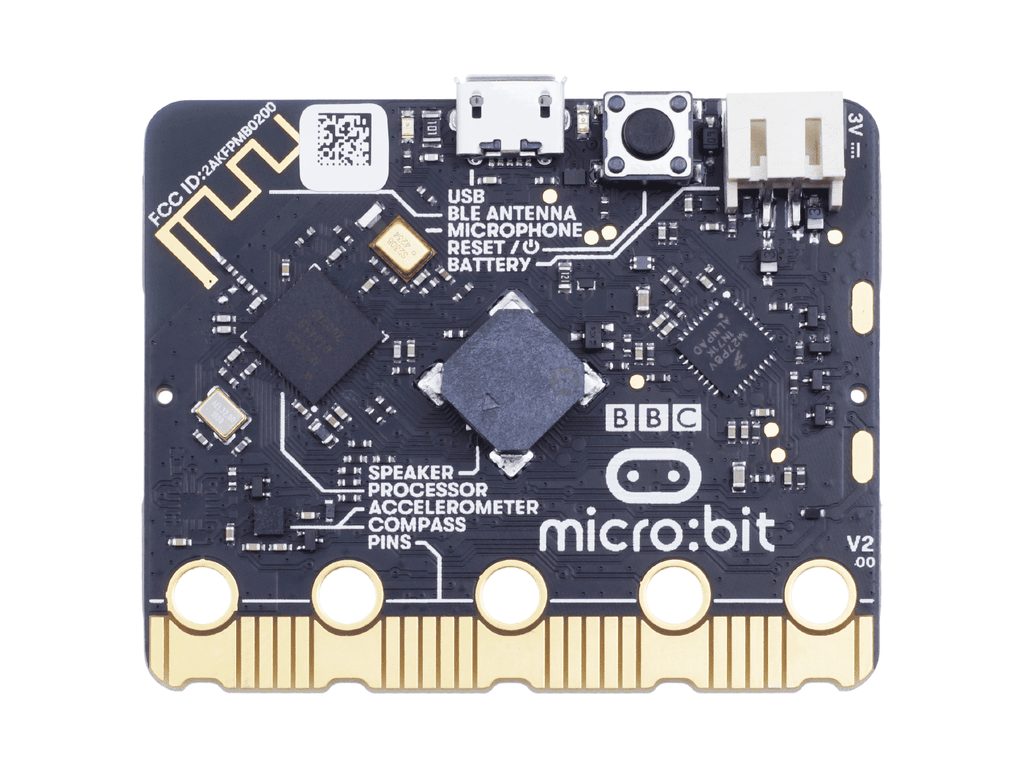

Parts of micro:bit Board

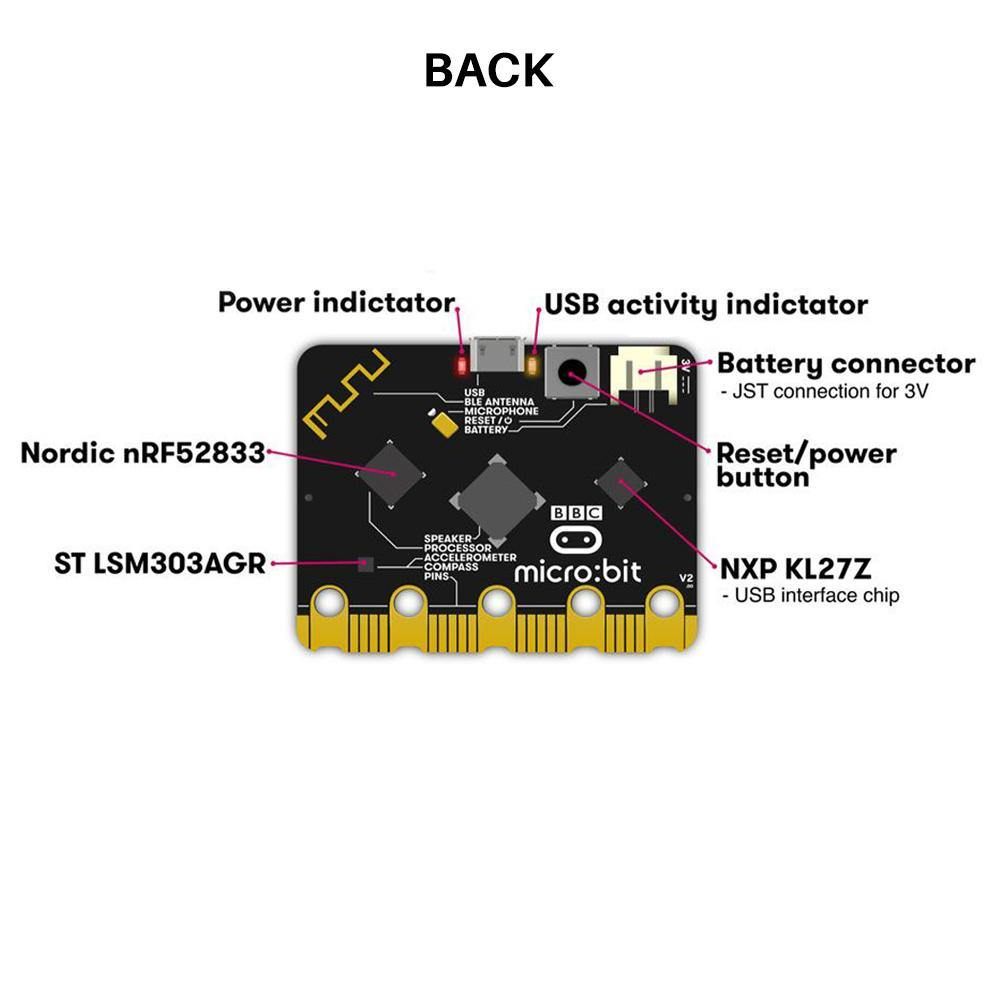

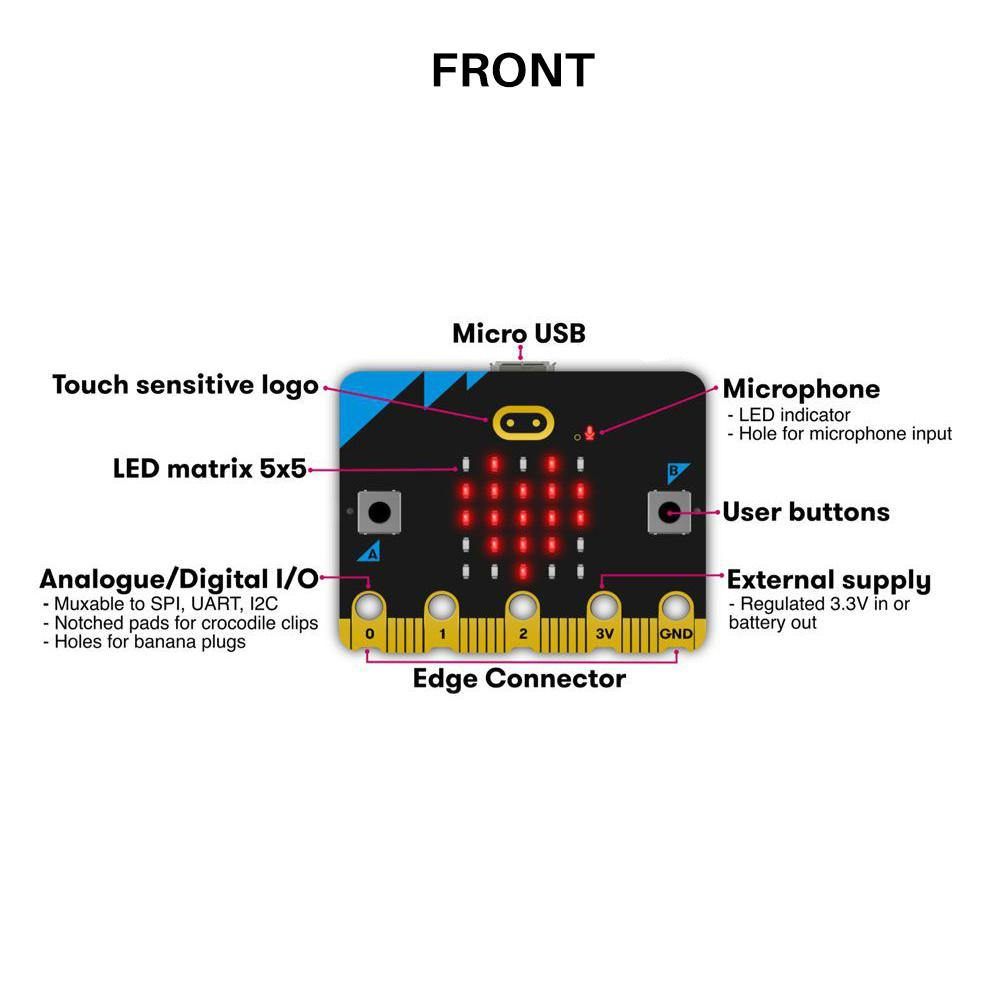

Microbit V2.2 on-board Pinout

 Micro:bit V2.2 Pinouts

Key features :

• 25 LED matrix on the board where you can scroll messages or display numbers
• Accelerometer to detect movement or tilting
• Compass
• Bluetooth connection to interact with the internet or other devices
• 2 user input buttons
• Micro USB connection to use with PC for programming
• Port for a battery pack
• ARM Cortex-M4 CPU
• Built-in speaker and microphone
• 20 pin edge connector along the bottom of the board

APPLICATIONS:

• Digital watch
• Fitness tracker
• Games console

Package Includes:

• 1 x Micro:Bit V2.2 Board
• 1 x Quick start guide

Specifications:
