Description

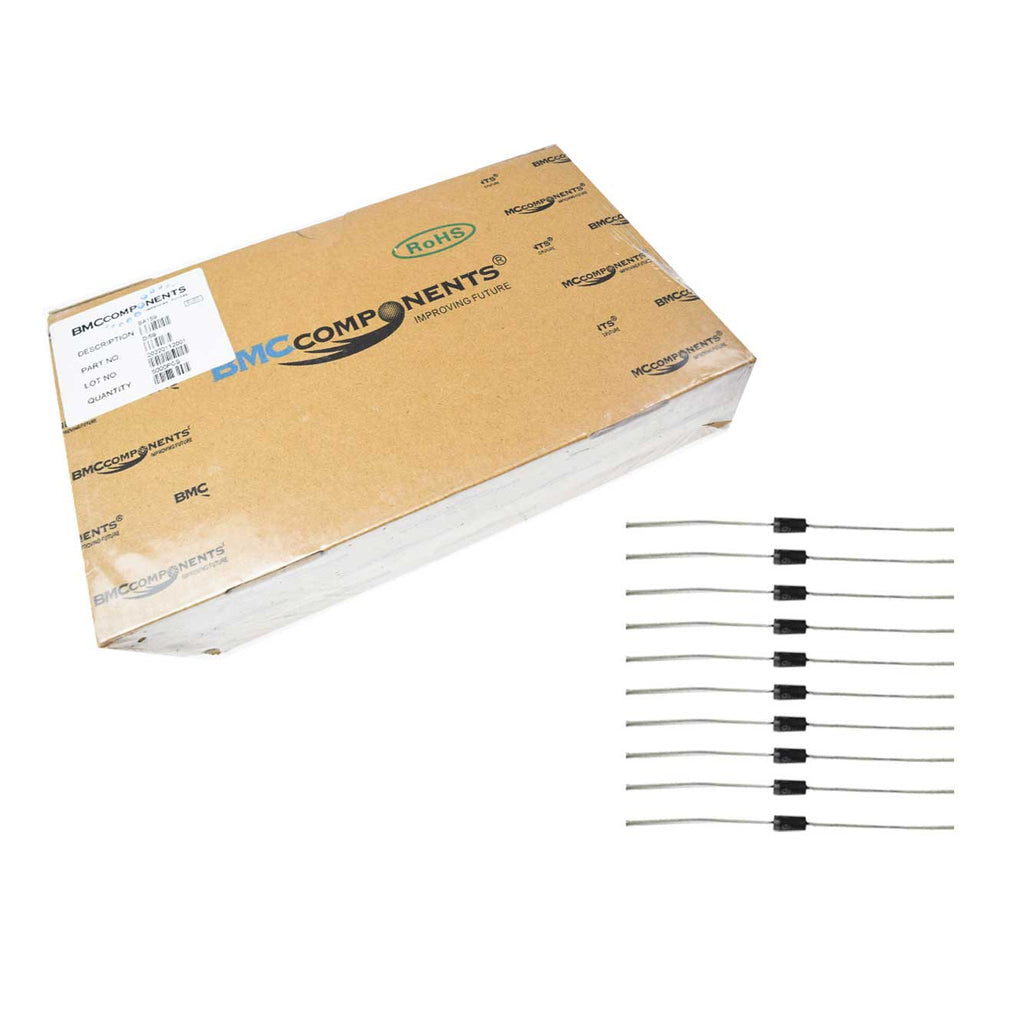

The BA159 is a 1.0 Amp Fast Recovery Rectifier Diode in the Do-41 Case Package. It is a two-terminal passive component with Axial leads that are solderable. The cathode end polarity is indicated by the colour band.
Features
- Fast switching for high efficiency
- Low forward voltage drop
- Low leakage current
- High forward surge capability
Specifications
| Model | BA159 |
| Make | BMC Components |
| Type | Fast Recovery Diode |
| Max. Average Forward Rectified Current | 1A |
| Max. Recurrent Peak Reverse Voltage | 1000V |
| Max. DC Blocking Voltage | 1000V |
| Forward Surge Current | 30A |
| Case | DO-41 |
| Mounting Type | Through Hole |
| No of Pin | 02 |
| Operating Temperature Range | -65 to +125 °C |
| Quantity | 5000 |
| Country of Origin | China |
