Description

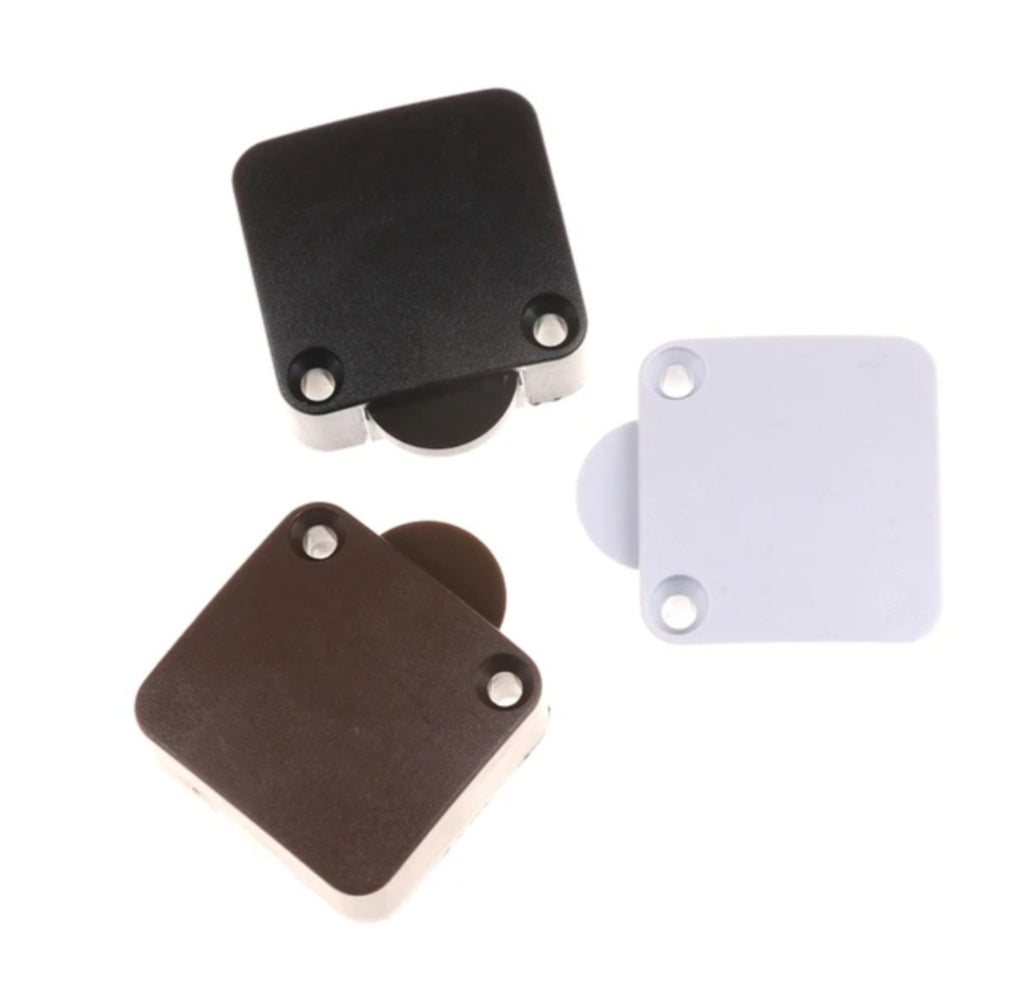

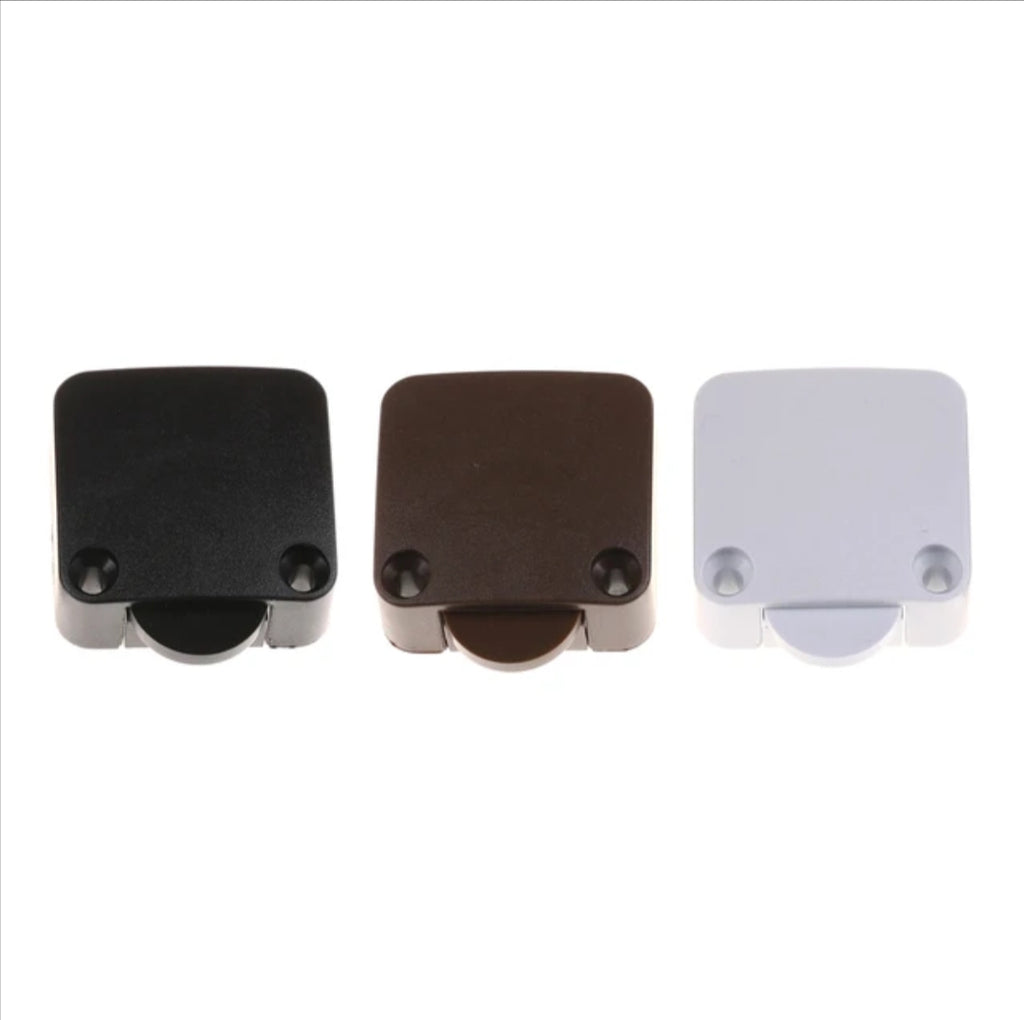

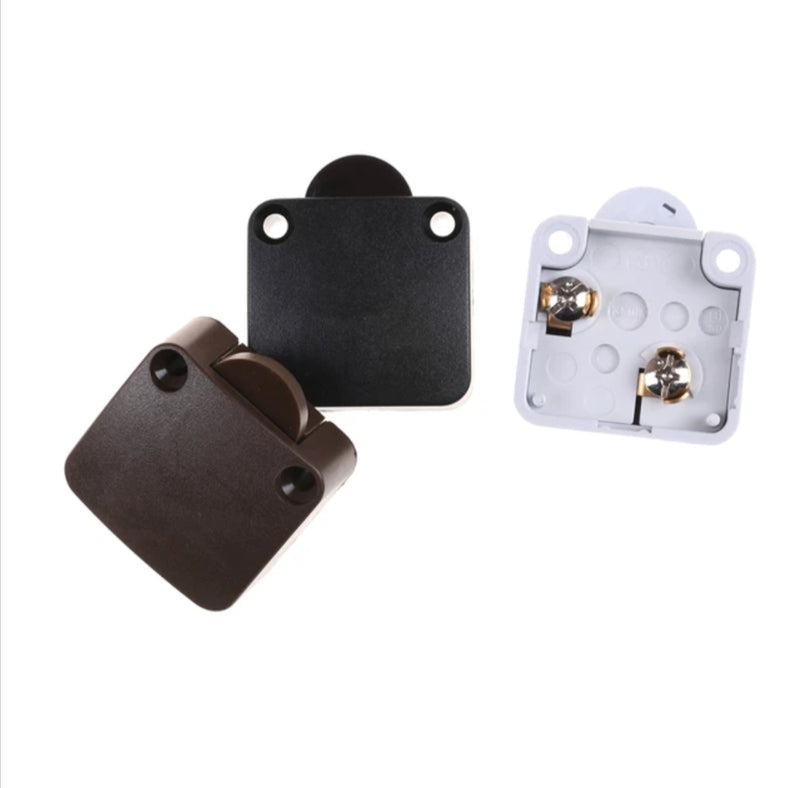

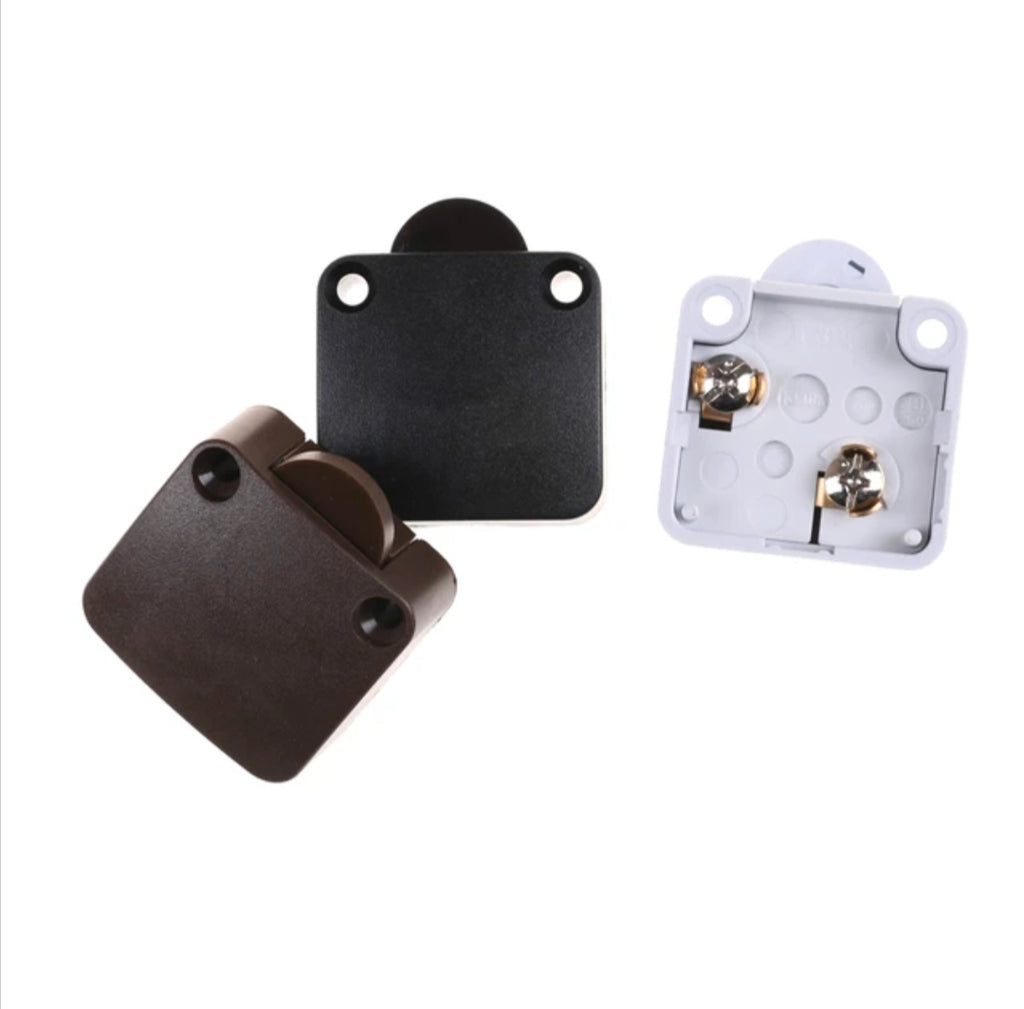

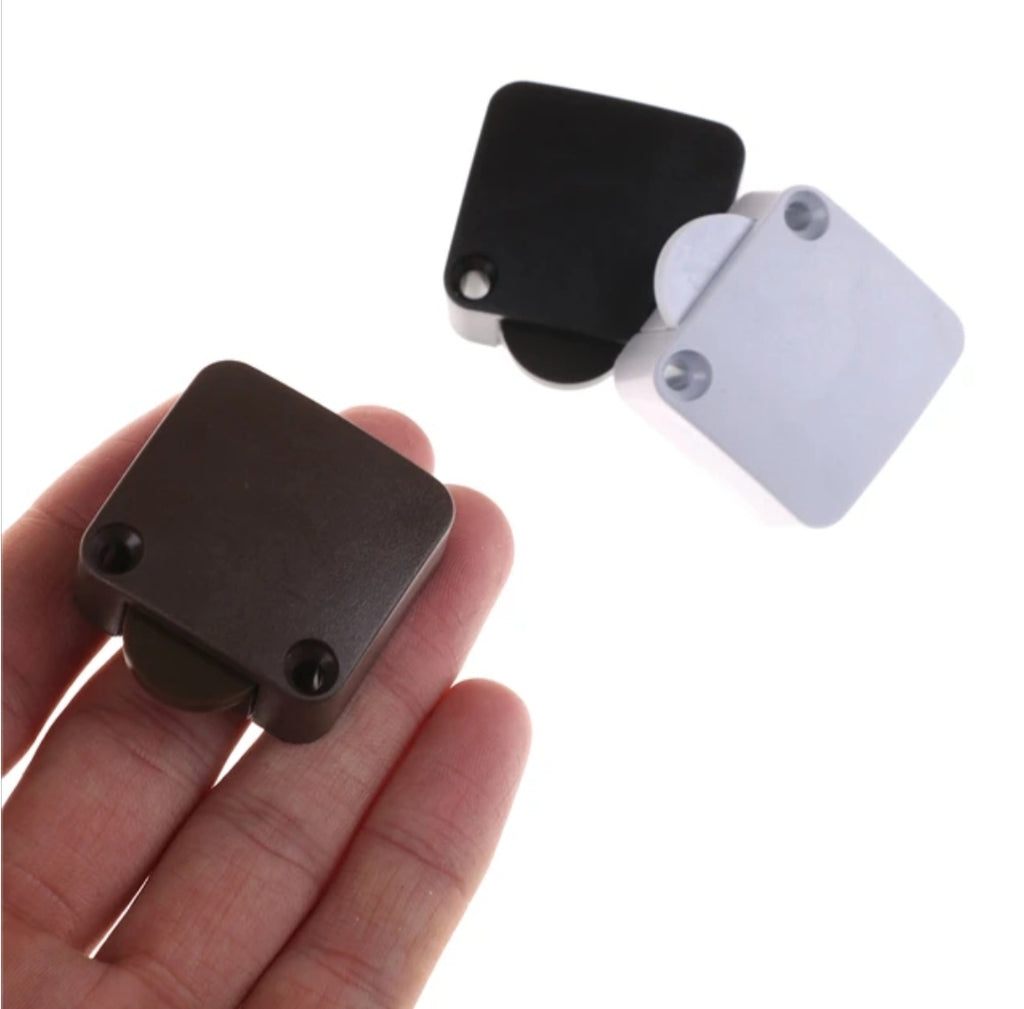

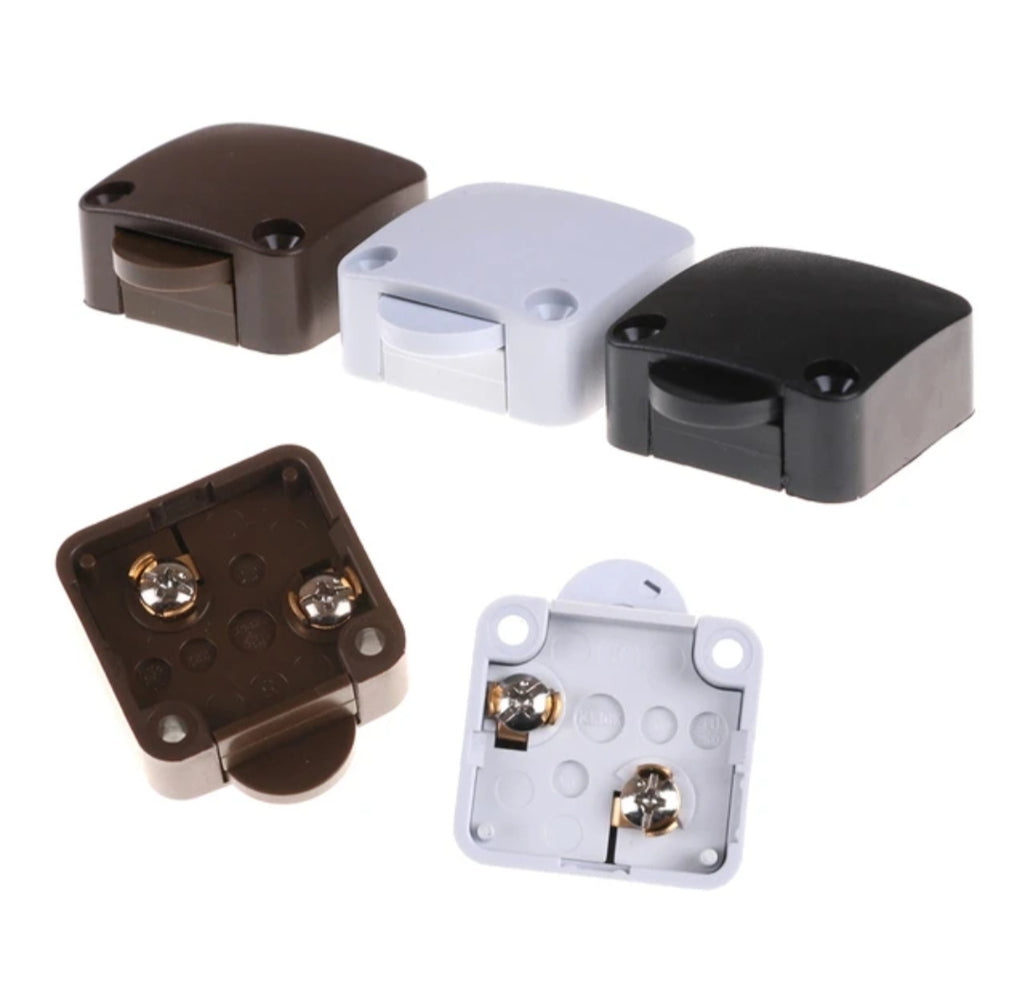

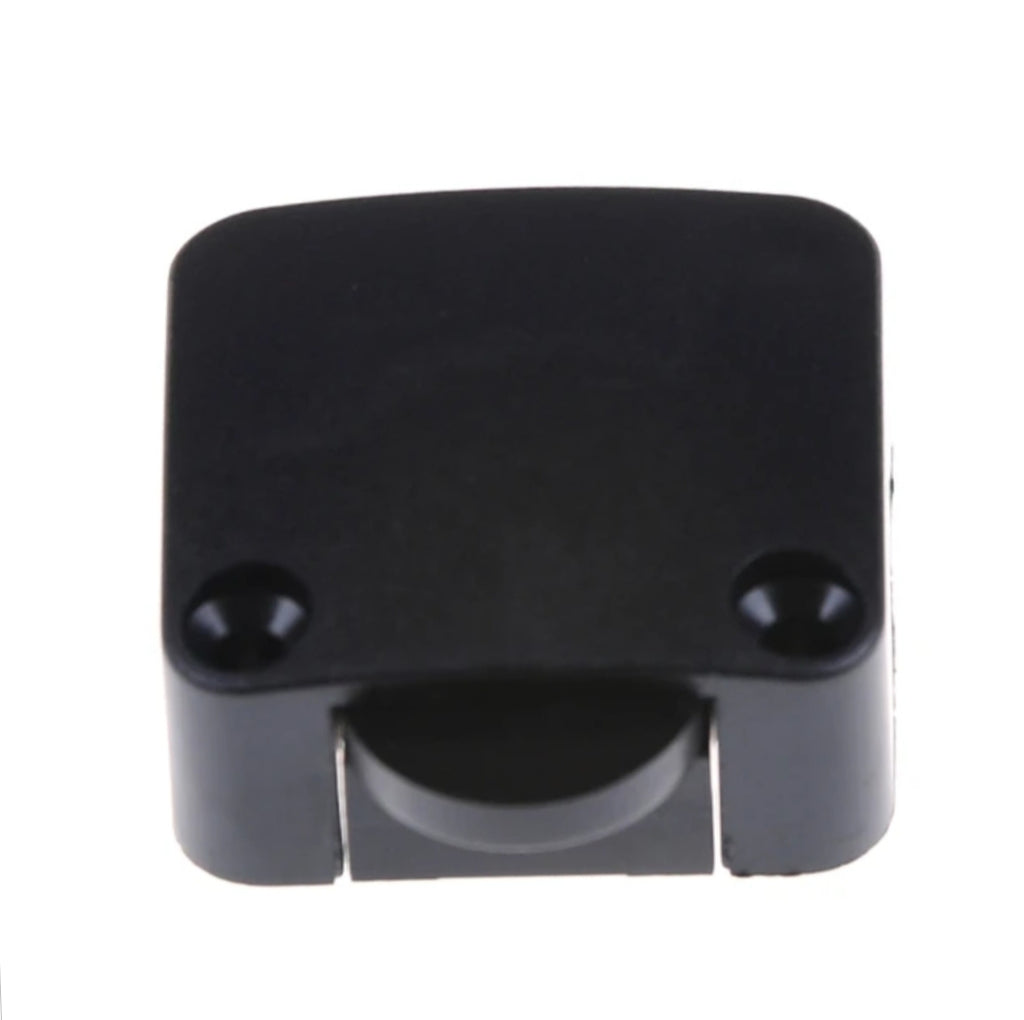

It's a Automatic Reset Switch Wardrobe Cabinet Door Light Switch Control Switch. It has good operating life. It can operate on the temperature range 40°C to 85°C and its insulation resistance is less than equal to 100mohm.
Specifications
| Colour | Beige |
| Dimension | 32x34x14.8mm |
| Contact Resistance | 0.02 ohm |
| Tensile Tests | 30n/min |
| Insulation Resistance | ≥100MΩ |
| Operating Life | 100000 times |
| Dielectric Strength | ≥1500V AC/min |
| Combustibility | UL94V2 level |
| Temperature | 40°C to 85°C |
| Withstand Voltage | 250V/5s/0.025mA |
| Rated Current | 2A 250V/ 500W |
| Impulse Voltage | 0.5NM ±0.04NM |
| Country of Origin | China |
