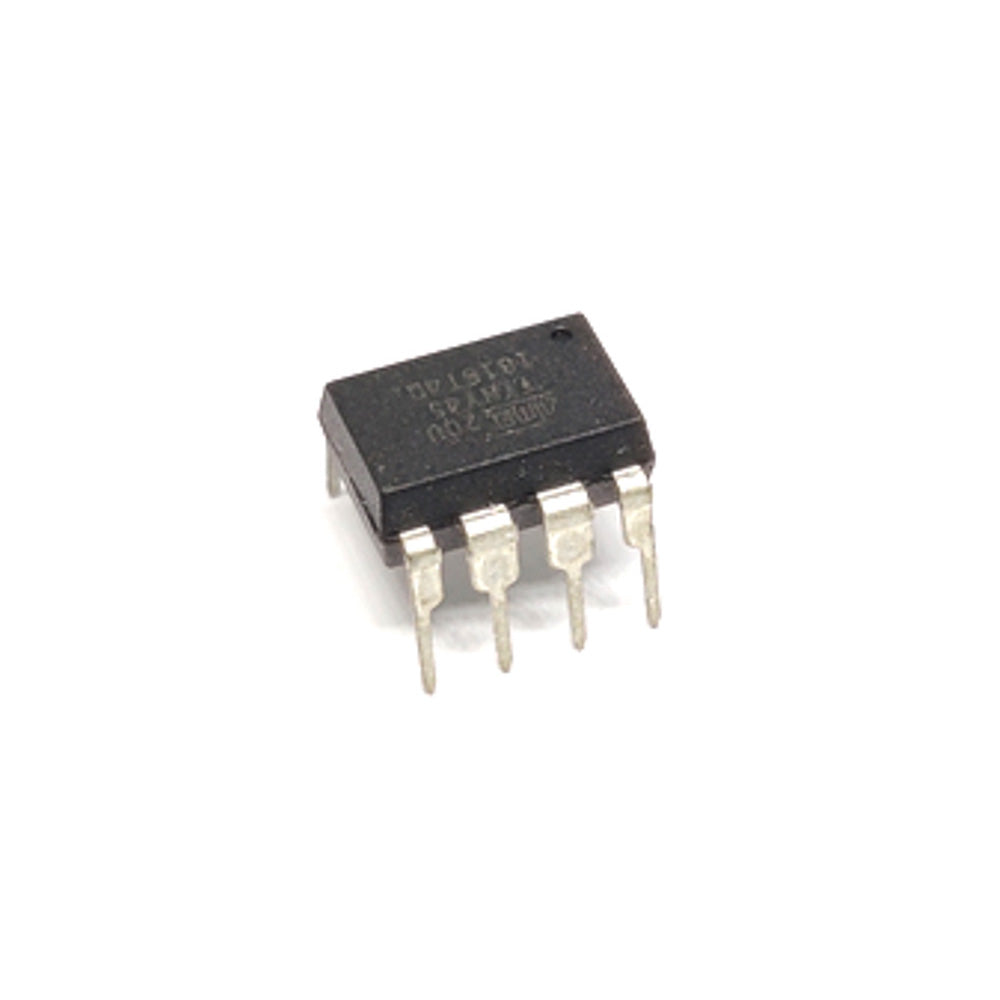

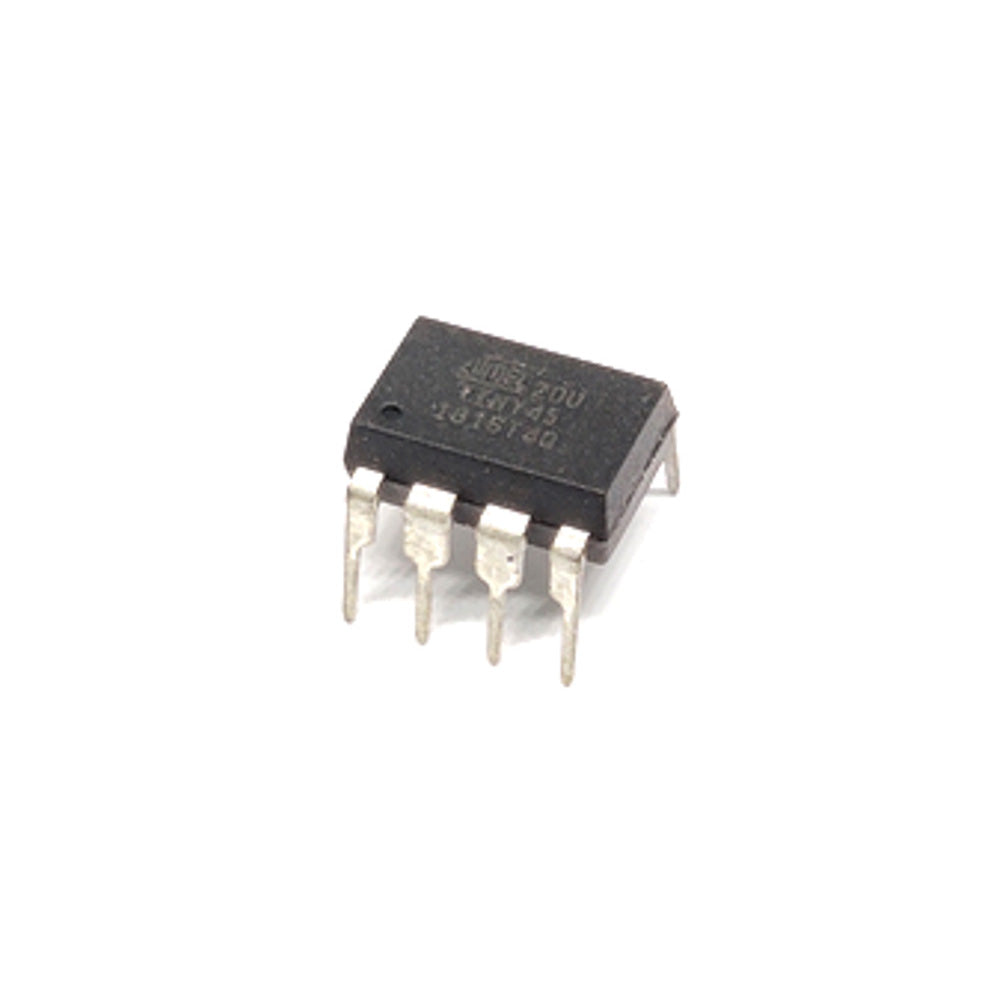

Attiny45 8 Pin AVR DIP Microcontroller IC
Rated 3.5/5 based on 11 customer reviews
Attiny45 8 Pin AVR DIP Microcontroller IC

Attiny45 8 Pin AVR DIP Microcontroller IC

  • Program Memory Size: 4KB
  • RAM Size: 256x8
  • Package: 8 Pin DIP
  • Number of I/O: 6
  • Speed: 20MHz
Out of Stock
Product SKU: 0T09g
149.00
₹ 126.27 + ₹ 22.73 (18% GST)
Successful pre-order.Thanks for contacting us!
  • Order within
  • Attiny45 8 Pin AVR DIP Microcontroller IC
    Attiny45 8 Pin AVR DIP Microcontroller IC ₹ 149.00
This product: Attiny45 8 Pin AVR DIP Microcontroller IC
₹ 149.00 14900
₹ 149.00

The high-performance, low-power Microchip 8-bit AVR RISC-based microcontroller combines 4 KB ISP flash memory, 256-Byte EEPROM, 256B SRAM, 6 general-purpose I/O lines, 32 general purpose working registers, one 8-bit timer/counter with compare modes, one 8-bit high-speed timer/counter, USI, internal and external Interrupts, 4-channel 10-bit A/D converter, programmable watchdog timer with internal oscillator, three software selectable power saving modes, and debugWIRE for on-chip debugging. The device achieves a throughput of 20 MIPS at 20 MHz and operates between 2.7-5.5 volts.

By executing powerful instructions in a single clock cycle, the device achieves throughputs approaching 1 MIPS per MHz, balancing power consumption and processing speed.

This is a great little microcontroller with an internal oscillator that runs at 8 MHz, SPI, I2C, or Serial Port interface, 4 K of flash program memory, 256 bytes of RAM, and 256 bytes of EEPROM.

Pin Configuration

 VCC Supply voltage
GND Ground
Port B [PB0:PB5] Port B is a 6-bit bi-directional I/O port with internal pull-up resistors
Reset Reset input





The high-performance, low-power Microchip 8-bit AVR RISC-based microcontroller combines 4 KB ISP flash memory, 256-Byte EEPROM, 256B SRAM, 6 general-purpose I/O lines, 32 general purpose working registers, one 8-bit timer/counter with compare modes, one 8-bit high-speed timer/counter, USI, internal and external Interrupts, 4-channel 10-bit A/D converter, programmable watchdog timer with internal oscillator, three software selectable power saving modes, and debugWIRE for on-chip debugging. The device achieves a throughput of 20 MIPS at 20 MHz and operates between 2.7-5.5 volts.

By executing powerful instructions in a single clock cycle, the device achieves throughputs approaching 1 MIPS per MHz, balancing power consumption and processing speed.

This is a great little microcontroller with an internal oscillator that runs at 8 MHz, SPI, I2C, or Serial Port interface, 4 K of flash program memory, 256 bytes of RAM, and 256 bytes of EEPROM.

Pin Configuration

 VCC Supply voltage
GND Ground
Port B [PB0:PB5] Port B is a 6-bit bi-directional I/O port with internal pull-up resistors
Reset Reset input





Manufacturer Microchip Technology
Series AVR® ATtiny
Core Size 8 bit
Speed 20 MHz
Number of I/O 6
Program Memory Size 4 KB
EEPROM Size 256 x 8
Package 8 Pin DIP
RAM Size 256 x 8
