Description

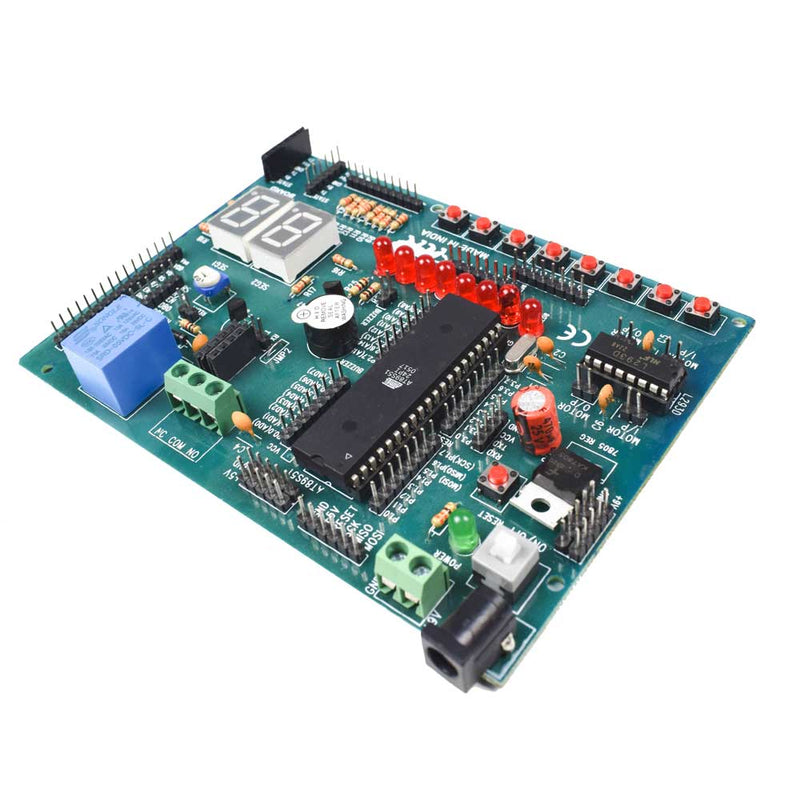

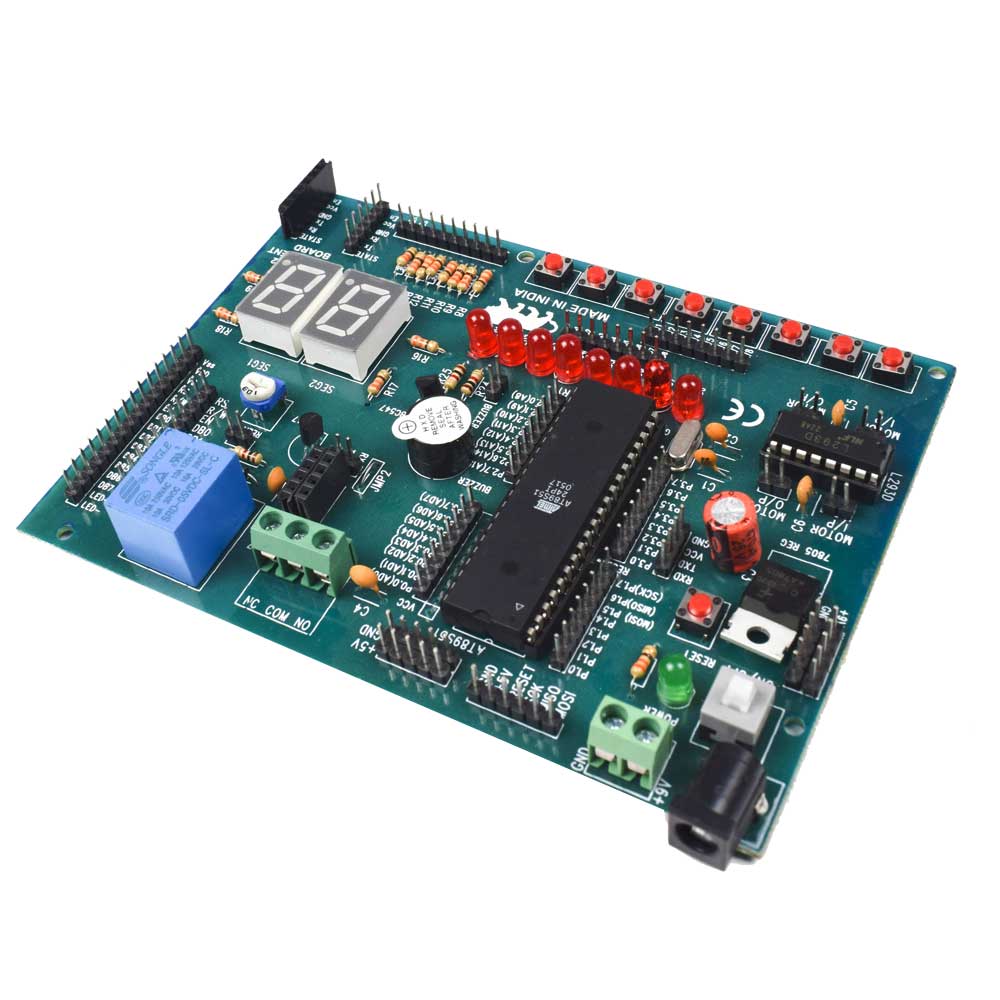

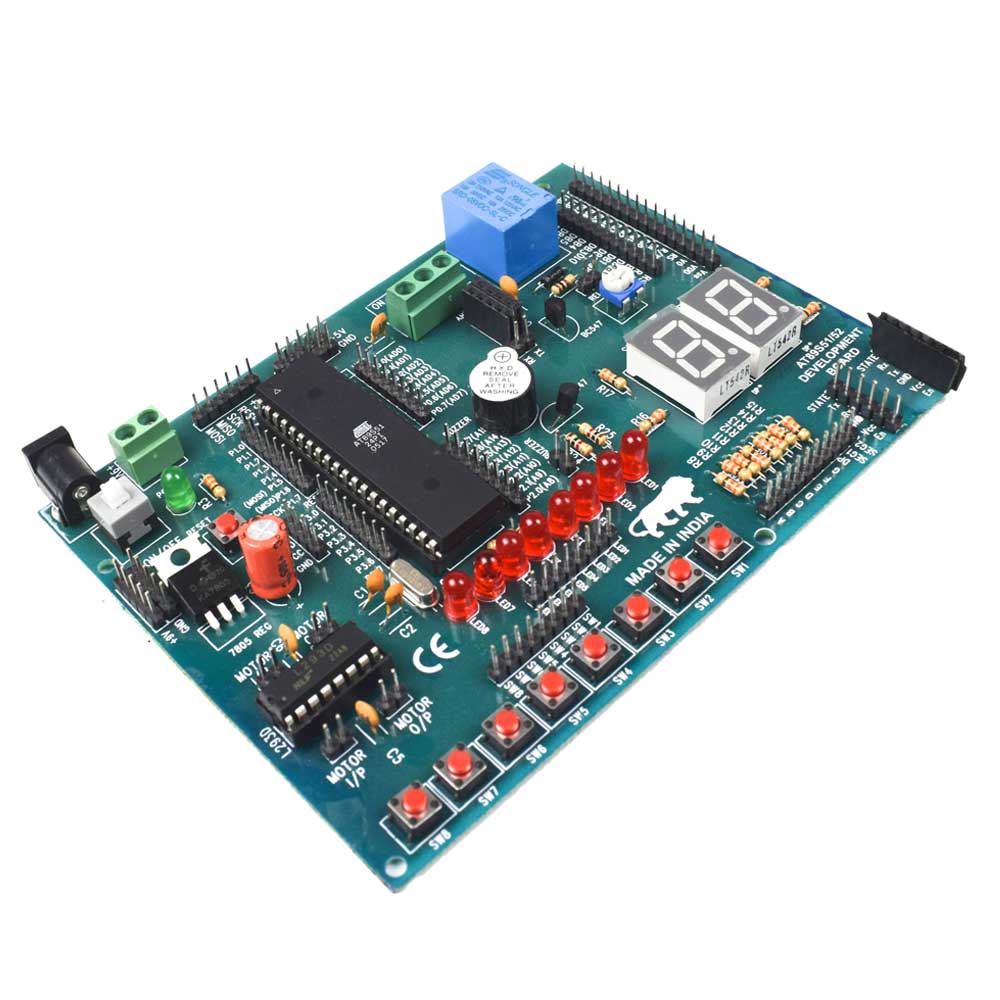

This is an AT89S51/52 Microcontroller Development Board. MCS-51 Series Development Board can be used to evaluate and demonstrate the capabilities of microcontrollers. It is a great way to start working with the all-time favourite range of microcontrollers the 8051 series. The board is designed for general-purpose applications and includes a variety of hardware to exercise microcontroller peripherals.
This MCU board's construction includes a relay, 2-seven-segment displays, a buzzer, an L293D motor driver, a Bluetooth insert port, an 8-input switch, with output indication etc.
Features
- Compatible with such Devices as a PC keyboard, GPS, GSM, Bluetooth, RF_ID, RF wireless, ZigBee, IoT, Switches, keypads, Dc motors, stepper motors, servo motors, DTMF, LED & LED matrix, buzzer, Alphanumeric LCD & Graphic LCD etc.
Specifications
| Product | AT89S51/52 Microcontroller Development Board |
| CPU Socket | DIP |
| Microcontroller | AT89S51/52 |
| Wireless | Bluetooth |
| Support Chip | AT89S51/52 |
| Dimension(mm) | 140*103 (mm) |
| Make | Make in India |
| Country of Origin | China |
