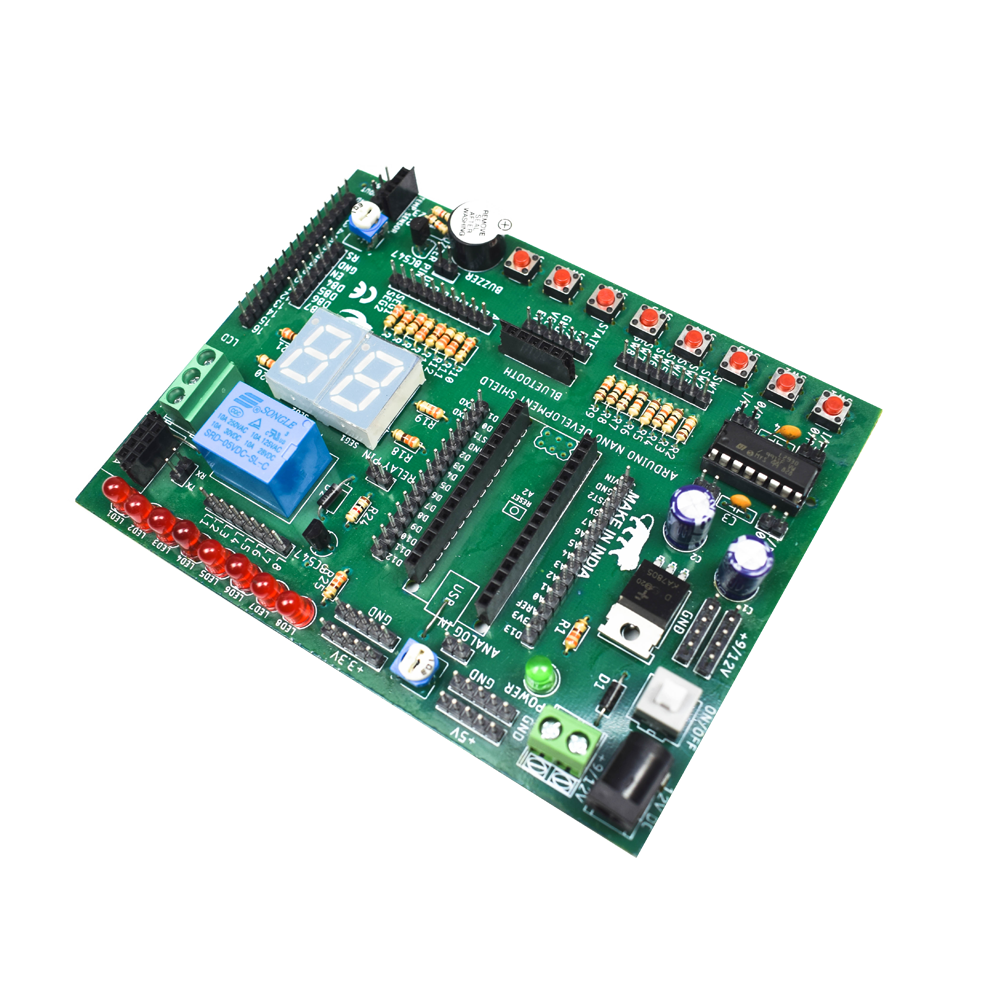

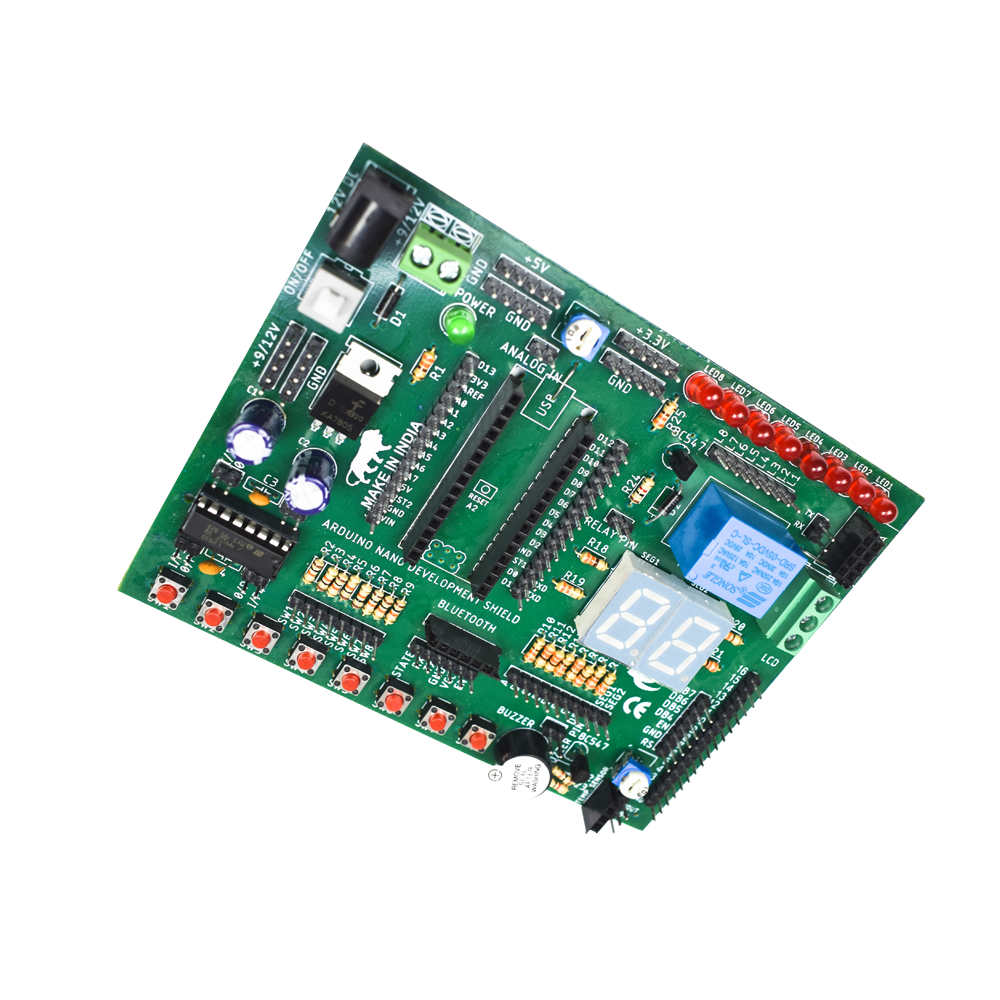

This is an Arduino Nano Development Shield Board. All Pins are Breakout Pins are available at Female bugs Connector, which can be used as the main board for developing applications. The most important feature of this board is that we can do as many practicals on a single board without a breadboard like IoT, sensors, gsm, GPS etc. This Nano Shield board's construction includes a relay, 2-seven-segment displays, a buzzer, an L293D motor driver, a Bluetooth insert port, an 8-input switch with output indication etc.
- Compatible with Arduino NANO.
- All digital and analog pins break out.
- Compact size.
- Dc Motor Operates with L293D IC
- Output Relay Control
- Seven-Segment Display
- BCD Converter
- Timer Control
- Timer Relay Control
- On/Off Switch with LED Indication
- LED Dimmer
- Timer Counter
- LED Fadness
- IR Transmitter & Receiver
- ESP Wireless
1 x NANO Development Board Shield
|Product||Arduino Nano Development Board Shield|
|Compatible Board||Arduino Nano|
|Output Voltage||+5V, +3.3V, +9V, +12V|
| Input Voltage
|Dimension (mm)||130 x 101 x 18(mm)|
|Make||Made in India|
