Description
Its AO4485 40V 10A P-Channel MOSFET‚ Its voltage is 40V and the current is 10A‚ It is a type of MOSFET IC which is mostly used in switching applications‚ It's used in DC-DC Converter Circuit‚ SMPS and many other Devices where general switching is needed. The AO4485 MOSFET is designed to handle a maximum drain-source voltage (VDS) of 40 volts. It has a maximum continuous drain current (ID) rating of 10 amperes. These ratings indicate the MOSFET's capabilities in terms of voltage and current handling. P-Channel MOSFETs like the AO4485 are commonly used in various electronic applications, including power management, battery protection, motor control, load switches, and DC-DC converters. They are particularly suitable for applications where low-side switching and control of higher voltages and currents are required.
Features
- Its used in DC converter
- Its voltage is 40V
- Its Drain source voltage is -40V
- Its avalanche current -28A
| Specifications | |
|---|---|
| Threshold Voltage | -2.5V |
| Output Capacitance | 260pF |
| Input Capacitance | 3000pF |
| Drain Current | -10A |
| Part Number | AO4485 |
| Operating Temperature Range | -55 To 150 |
| Mounting Style | SMD |
| Power Dissipation | 1.7W |
| Current | 10A |
| Voltage | 40V |
| Type | MOSFET IC |

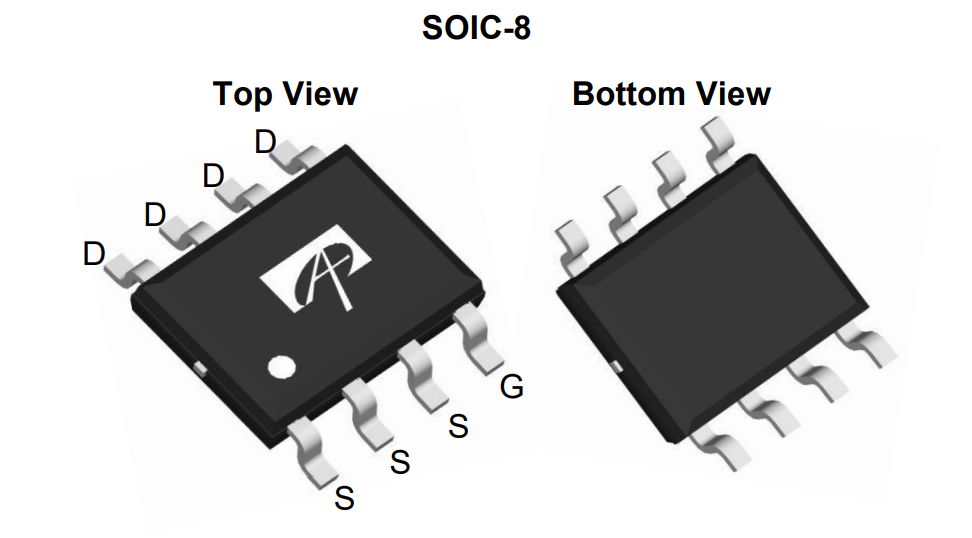

| Package | SOIC-8 |
