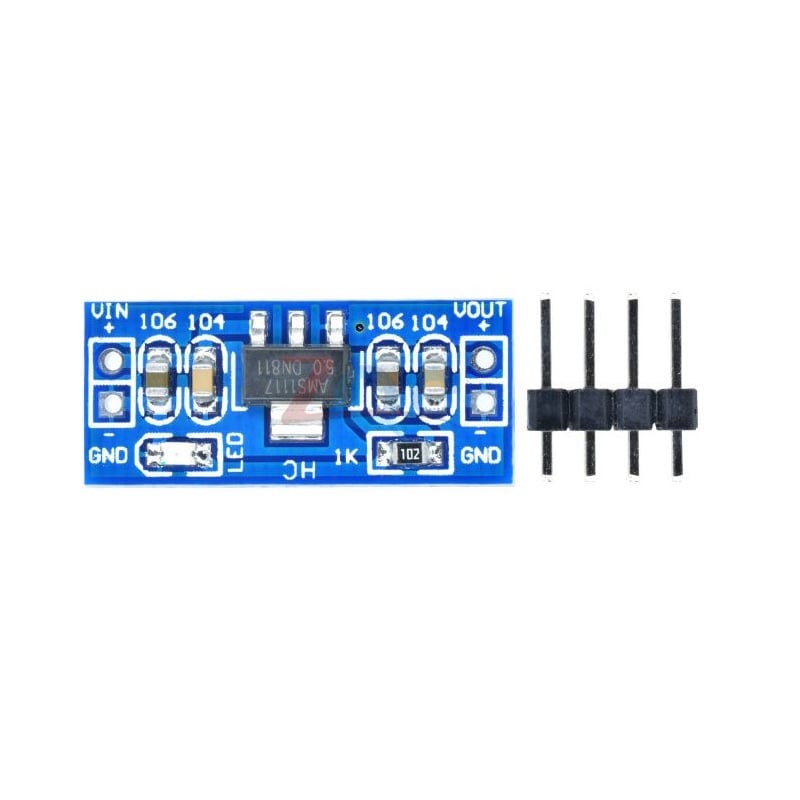

Description
- Input: DC 6.5V – 12V (input voltage must be more than output voltage (more than 1V))
- Output: 5.0V (+-0.05v error), 800mA (load current cannot exceed 800ma)
- Onboard AMS1117 chip.
- Onboard power indicator to indicate power is turned on: Red LED.
- Small Compact Size, 4Pin Type, Breadboard Friendly.
- Dual-panel design, the layout is nice
| IC Chip |
AMS1117 |
|---|---|
| Input Voltage (V) |
6.5 to 12 |
| Output Voltage(V) |
5 |
| Max. Output Current (A) |
0.8 |
| Length (mm): |
26 |
| Width (mm): |
12 |
| Height (mm): |
2 |
| Weight (g): |
0.6 |
| Shipping Weight | 0.085 kg |
| Shipping Dimensions | 6 × 3 × 1 cm |
