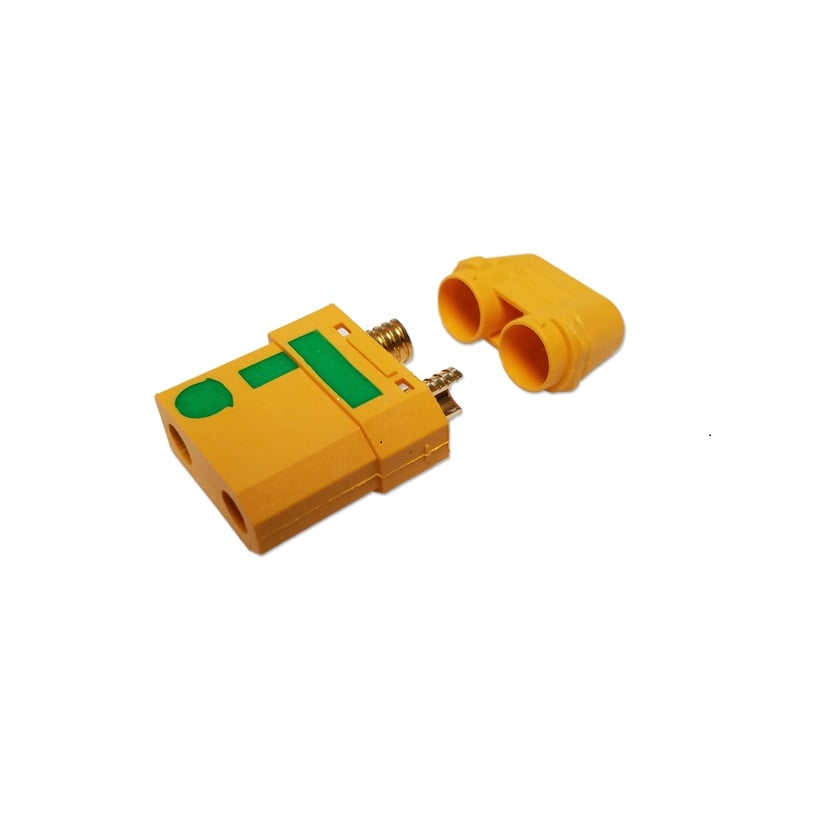

Description
- Connector Type: XT90-S
- Contact Positions: 2
- Gender: Female
- Metal connector size: 4.5mm
- Housing shape provides protection against shorting and reverse polarity
- Can accept up to 8AWG wires
- Semicircular solder terminals make it easy to install wires
- Able to sustain 90A+ continuous current
- Anti-Spark Protection
| Gender |
Female |
|---|---|
| Allowed Wire Size (AWG): |
14 ~ 8 |
| Rated Operating Voltage (VDC) |
500 |
| Current Handling Capacity (A) |
90 |
| No. of Contact Points |
2 |
| Connector Type |
XT90-S |
| Contact Material |
Brass |
| Contact Plating |
Gold flash |
| Metal Connector Size (mm) |
4.5 |
| Operating Temperature (°C): |
-20 to 120 |
| Flammability Rating | |
| Color: |
Yellow |
| Dimensions (mm) LxWxH |
49 x 21 x 10 |
| Weight (g): |
10 |
| Shipping Weight | 0.01 kg |
| Shipping Dimensions | 5 × 3 × 2 cm |
