Description
- Current Rating: 60A
- Rated Voltage: 500V
- Flammability Rating UL94V-0
- Operating Temperature -20…120°C
- Type of connector: DC supply

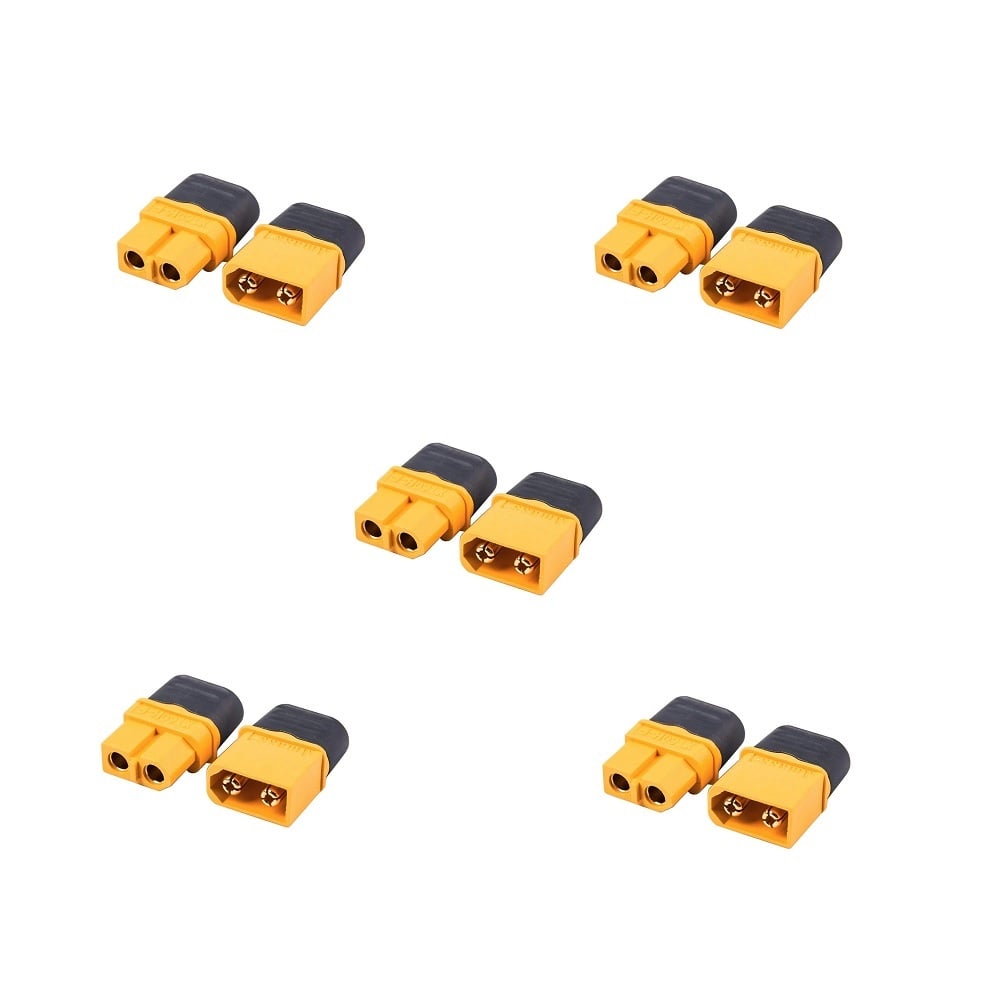

- Connector series: XT60H Pair
- Excellent connector solution for RC Quadcopters, Drones, UAVs,
- Airplanes and Jets, Cars and Trucks, as well as RC Boats.
| Gender |
Mail-Female Pair |
|---|---|
| Rated Operating Voltage (VDC) |
500 |
| Current Handling Capacity (A) |
60 |
| No. of Contact Points |
2 |
| Connector Type |
XT60H |
| Contact Material |
Brass |
| Contact Plating |
Gold flash |
| Metal Connector Size (mm) |
4.5 |
| Color: |
Yellow-Gray |
| Weight (g): |
6 each |
| Operating Temperature (°C): |
-20 to 120 |
| Flammability Rating | |
| Allowed Wire Size (AWG): |
14 ~ 12 |
| Shipping Weight | 0.05 kg |
| Shipping Dimensions | 7 × 5 × 4 cm |
