Description

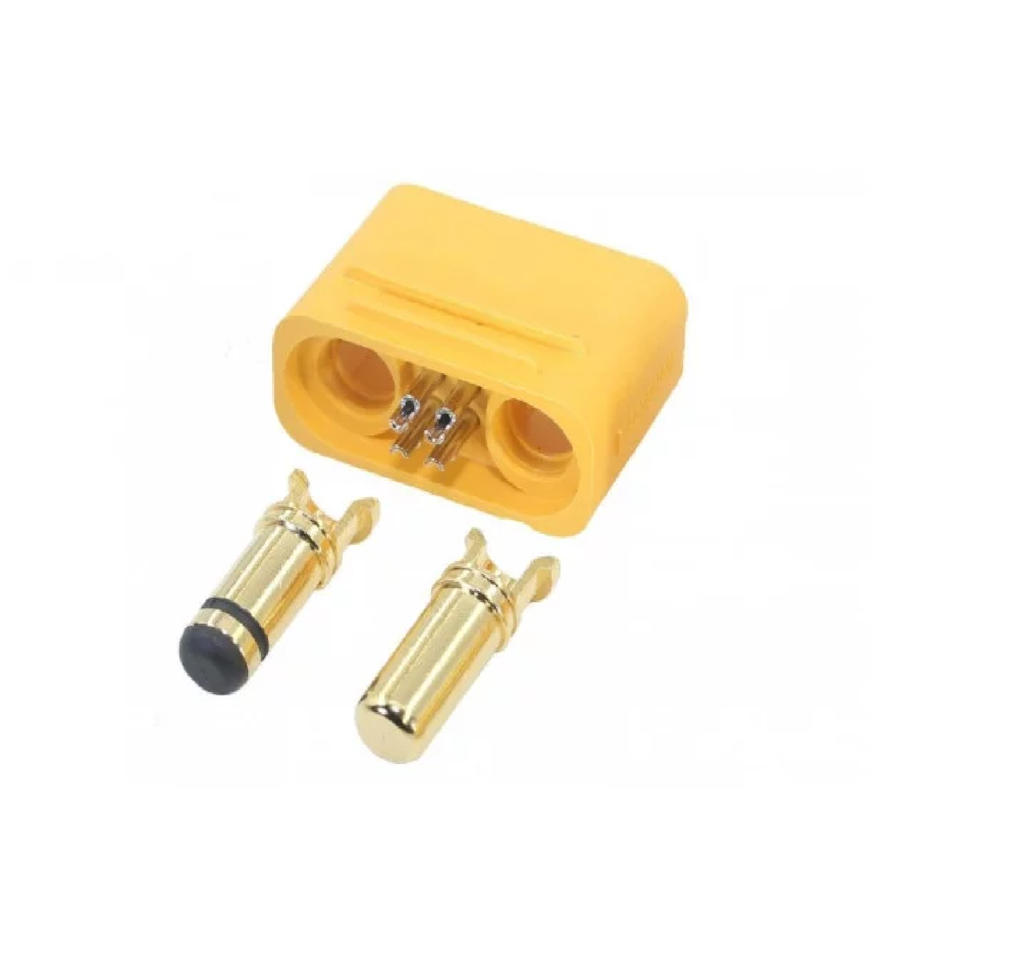

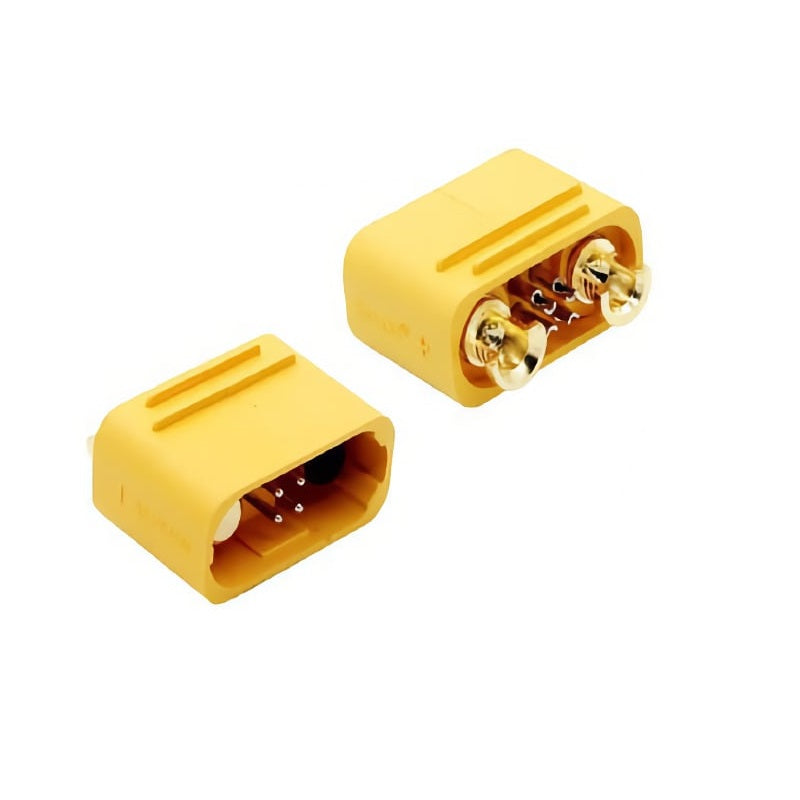

The Amass AS150U Male Connector is a high-current connector designed for RC models and drones. It supports up to 150A continuous current and features an anti-spark design to prevent electrical arcing during connection. The connector is made from durable materials, ensuring a secure and reliable connection.
Features:
- Instantaneous Current: 140A
- Rated Current: 75A
- Contact resistance: ≤0.8mΩ
- Rated voltage: DC 500V
- Flame Retardant Rating: UL94 V0
Specifications:
| Instantaneous Current |
140A |
|---|---|
| Rated Current |
75A |
| Contact resistance |
≤0.8mΩ |
| Rated voltage |
DC 500V |
| Flame Retardant Rating |
UL94 V0 |
| Recommended Use |
Lithium Battery, Controller, Charger |
| Metal Material |
Copper Plating |
| Recommended wire gauge |
8 AWG |
| Insulation Material |
PA6 |
| Operating Temperature |
-20°C to 120°C |
