Description

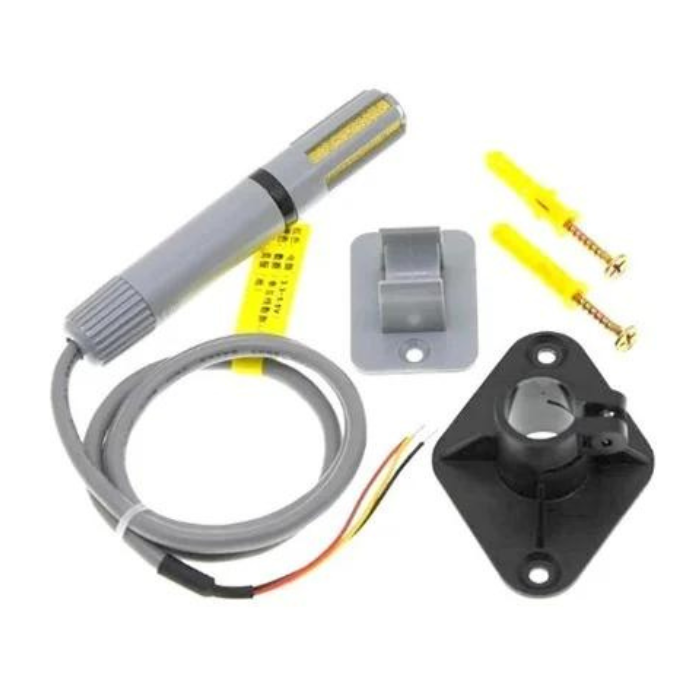

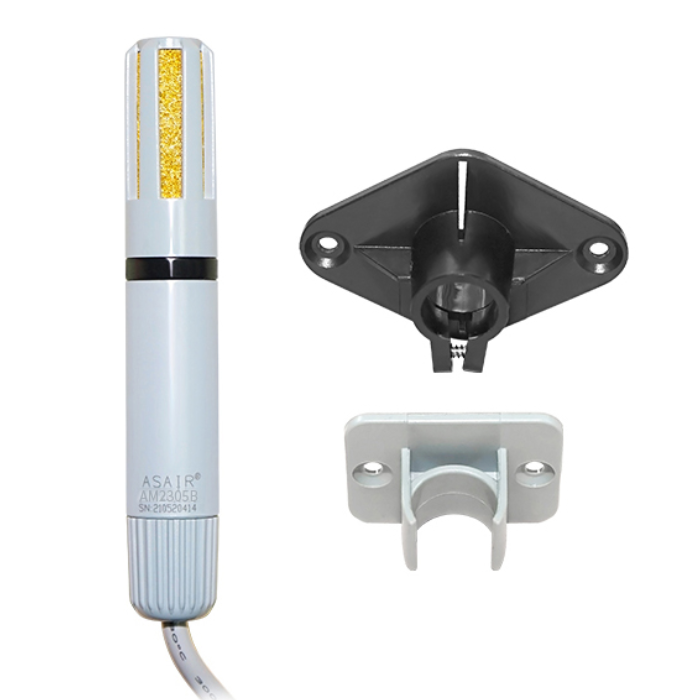

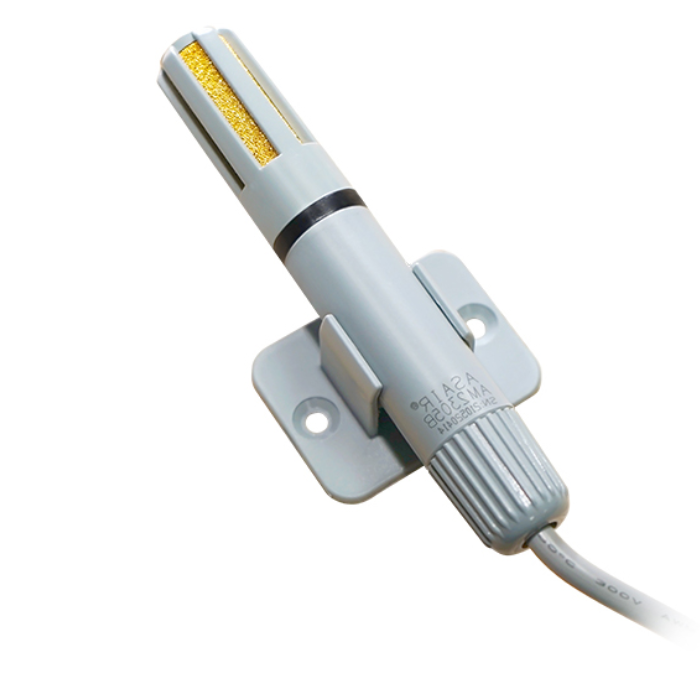

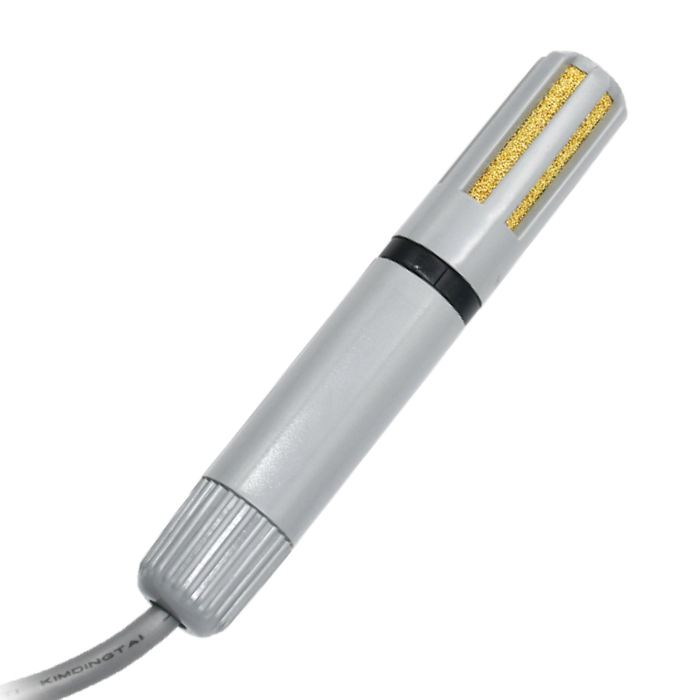

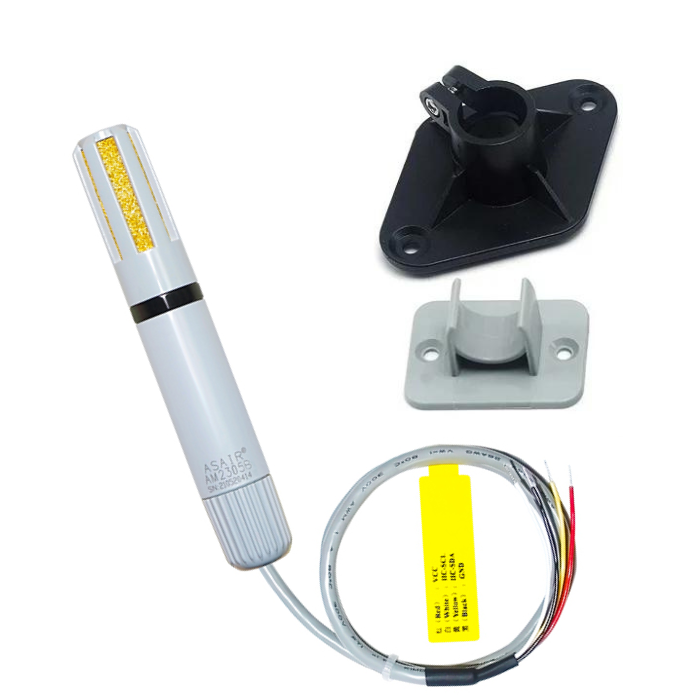

AM2305B Temperature and Humidity Sensor
The AM2305B Digital Temperature and Humidity Sensor is a great option if you’re looking for a reliable, easy-to-use sensor for your projects. It’s equipped with an all-new ASIC chip, an upgraded MEMS humidity sensor, and a standard temperature sensor, so you’re getting top-notch accuracy and performance, even in tough environments.
It comes fully calibrated and ready to go. You don’t need to worry about extra calculations or complicated setups. Plus, with its low power consumption and ability to transmit data over 20 meters, it’s perfect for remote monitoring. It measures temperatures from -40°C to 80°C and humidity from 0% to 99.9% RH, with high accuracy—±0.5°C for temperature and ±3% RH for humidity.
Whether you need to track environmental data or use it in a larger system, the AM2305B offers great stability and reliability, making it a strong choice for various applications.
Features:
- Excellent quality
- Fast response time
- Strong anti-interference capability
- Ultra-small size
- Low power consumption
Applications:
- HVAC systems
- Dehumidifiers
- Testing and inspection equipment
- Consumer products
- Automobiles
- Automatic control systems
- Data loggers
- Weather stations
- Home appliances
- Humidity control systems
- Medical equipment
Package Includes:
1 x AM2305B Digital Temperature and Humidity Sensor
Specifications:
| Specification | Details |
|---|---|
| Model | AM2305B |
| Supply Voltage (VDC) | 3.3 ~ 5.5 |
| Temperature Measuring Range (°C) | -40 to 80 |
| Interface | Digital |
| Accuracy | ±0.3°C |
| Features | Metal screen |
| Sensor Type | AHT10 integration sensor |
| Output | Digital Sensor |
| Humidity Range | 0 ~ 99.9% RH |
