Description

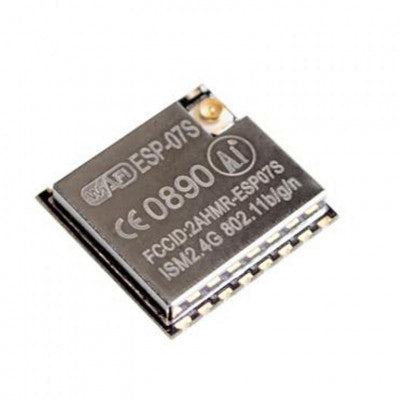

Ai Thinker ESP-07S ESP8266 Serial Wi-Fi Module is devoid of an integrated antenna! It has a U.FL antenna connector and is more compact than the ESP-12 modules (the bottom row of pads has been deleted). The module supports the full TCP/IP protocol stack and the standard IEEE802.11 b/g/n agreement. Users have the option of creating their own network controller or adding modules to an already-existing device. The use of the board remains unaffected as the removed pads (bottom row of ESP-12) primarily contained IO pins that were not usable by the user. The ESP-12F and ESP-12E modules are 100% pin-compatible with the remaining pins. This module can be soldered onto a board made for the ESP-12E or ESP-12F.
Features:
- Integrated PLL, regulators, and power management units
- Supports antenna diversity
- Wi-Fi 2.4 GHz, support WPA/WPA2
- Support STA/AP/STA+AP operation modes
- Support Smart Link Function for both Android and iOS devices
- SDIO 2.0, (H) SPI, UART, I2C, I2S, IRDA, PWM, GPIO
- Operating Current80 mA
- Operating Voltage3.0-3.6 V
- STBC, 11 MIMO, 21 MIMO
