Description

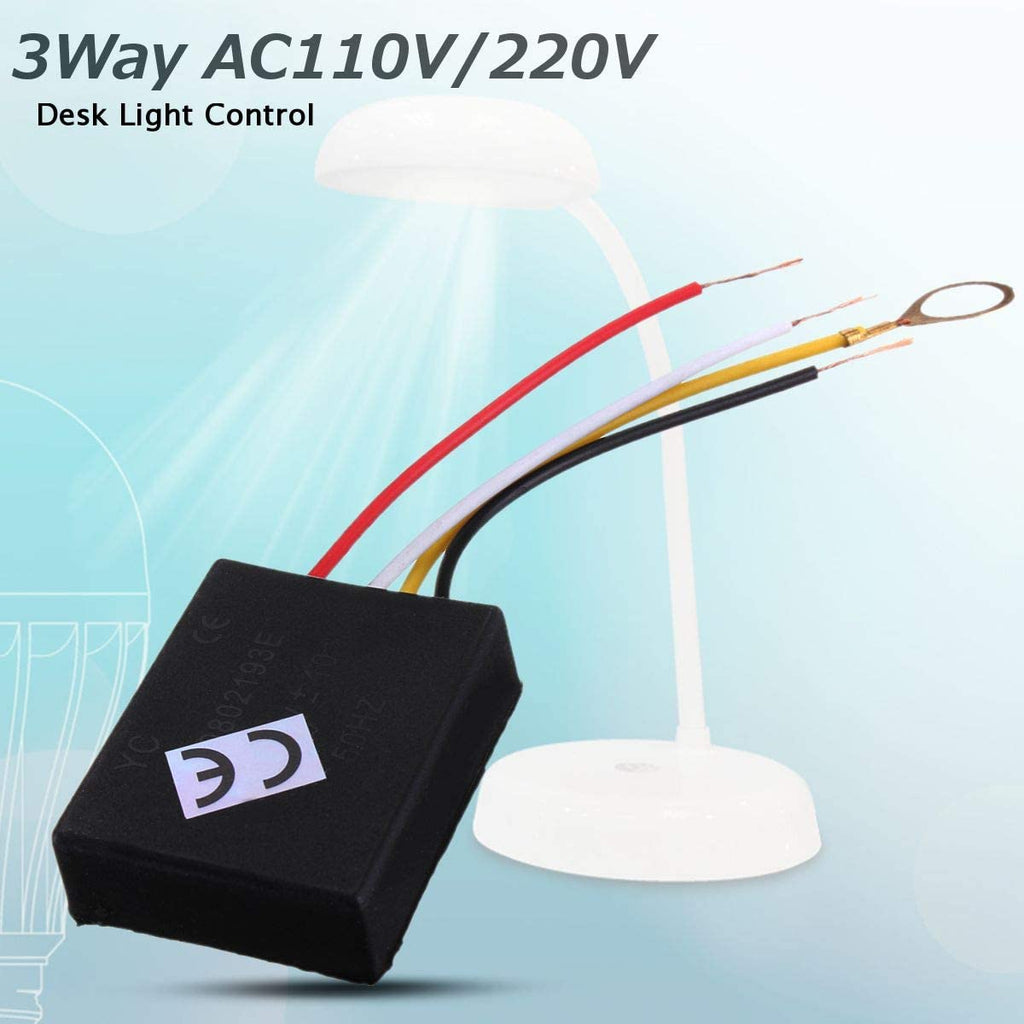

It's a AC 100-240V 3 Way Touch Sensor Switch Desk light Parts Touch Control Sensor Dimmer For Bulbs Lamp Switch. It is a high quality sensor and it's very easy to install. This is Fit for ordinary light bulbs, not suitable for LED bulb or energy saving lamps
Features
- Easy install,
- high quality
- The power of lamp can not exceed 60W
- The yellow line must connect with conductor, such as metal, can not connect with plastic or wood
- After install the touch device, dimming or open lamp can not allowed on power cord
- Fitment: Fit for ordinary light bulbs, not suitable for LED bulb or energy saving lamps

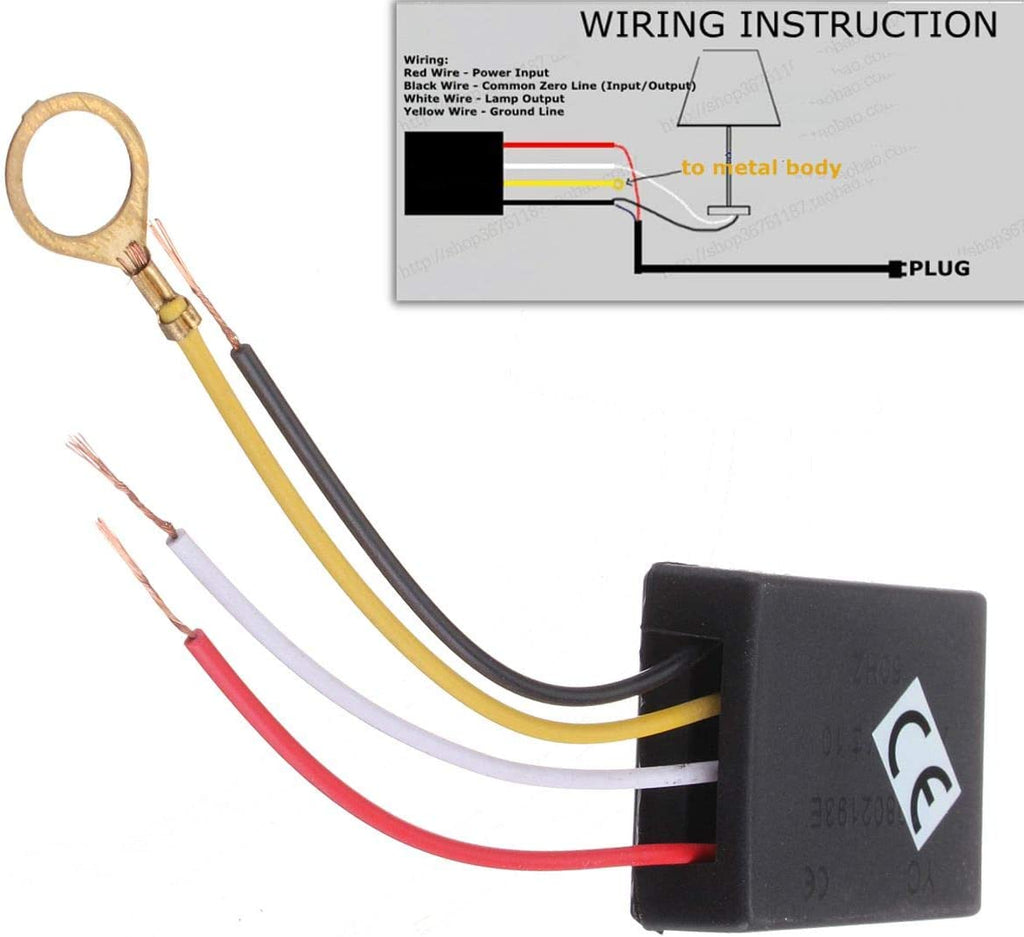

Wiring:
- Red Wire - Power Input
- Black Wire - Common Zero Line (Input/Output)
- White Wire - Lamp Output
- Yellow Wire - Ground Line
- Package includes:
- 1 x 3-way sensor switch.
- Item specifics:
Specifications:
- Switch type: Sensor Switch
- Model number: BNRE-915
- Material: Plastic
- Color: Black

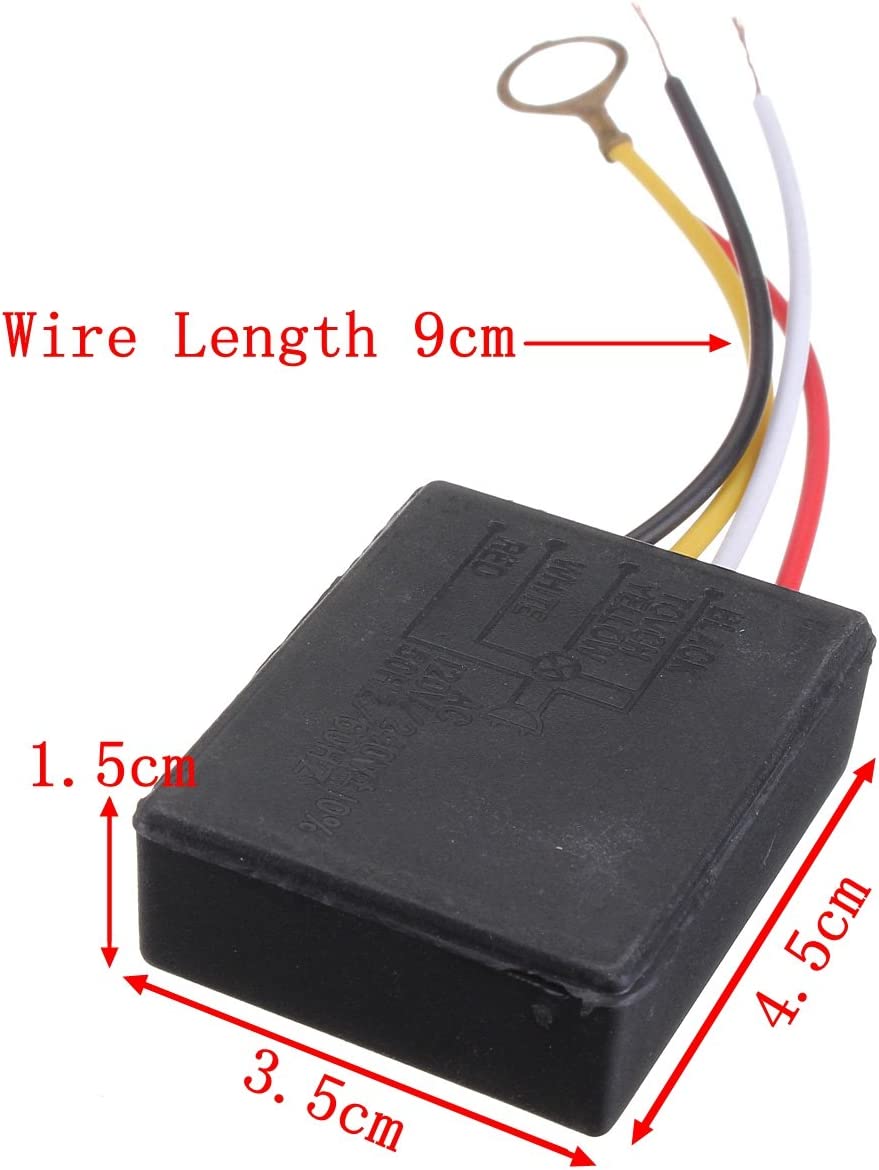

- Size: 4.5cm x 3.5cm x 1.5cm
- Ac: AC110V/220V
- Material: Plastic
- Color: Black
- Size: 4.5cm x 3.5cm x 1.5cm (1.8''x1.4''x0.6'')
- Wire Length: Approx. 9cm (3.5'')
- AC:100-240V 50Hz
- Levels: low, medium, high, then off
