Description

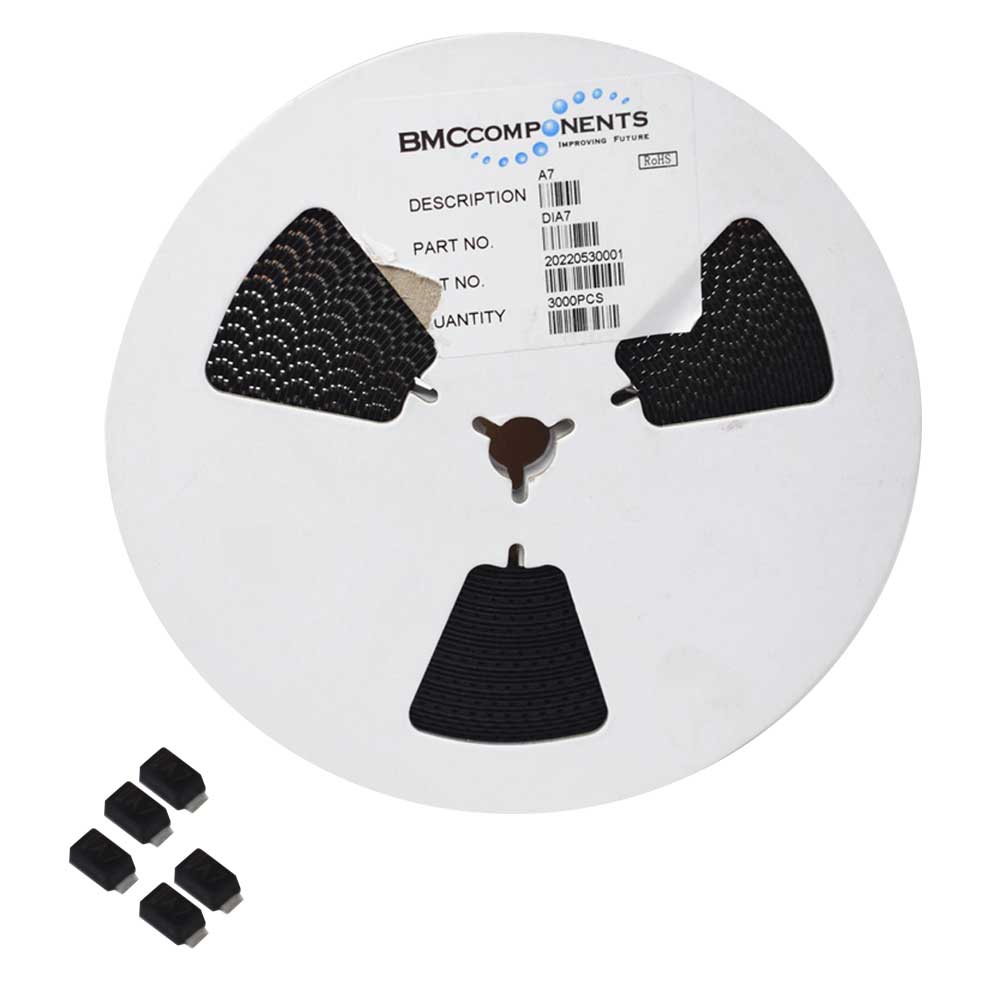

The A7 is a 1N4007 Diode 1.0 Ampere Surface Mount Device in the SOD-123 Package. This diode is a device that allows current flow through only one direction. That is the current should always flow from the anode to the cathode. The DC Reverse Voltage (Vr) (Max) is 1000 Volt with an Average Rectified (Io) is 1.0 Ampere. It is commonly used in rectifier circuits, protection circuits and regulator circuits.
Features
- Glass passivated device
- Ideally Suited for Automatic Assembly
- Surge Overload Rating to 25 A Peak
- Low Power Loss
- Low Forward Voltage Drop, High Efficiency
Specifications
| Model | A7 |
| Brand | BMS Components |
| Mounting Type | SMD |
| Max Peak Repetitive Reverse Voltage | 1000V |
| Maximum RMS Voltage | 700V |
| Maximum DC Blocking Voltage | 1000V |
| Maximum Average Forward Output Current | 1A |
| Operating Temperature Range: | -55 to + 150°C |
| Package | SOD-123 |
| Quantity | 3000 |
| Country of Origin | China |
