Description

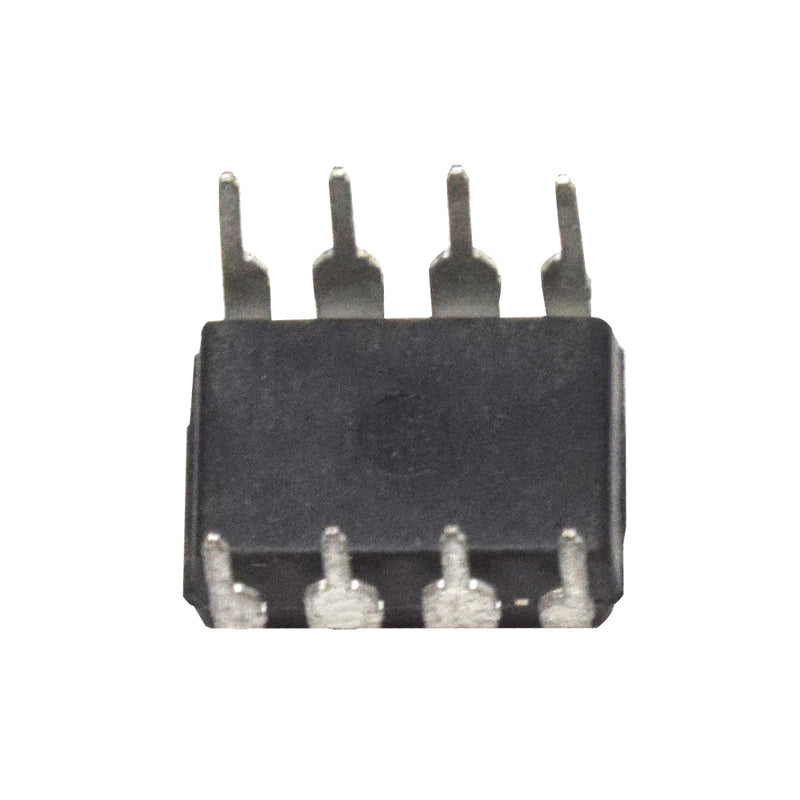

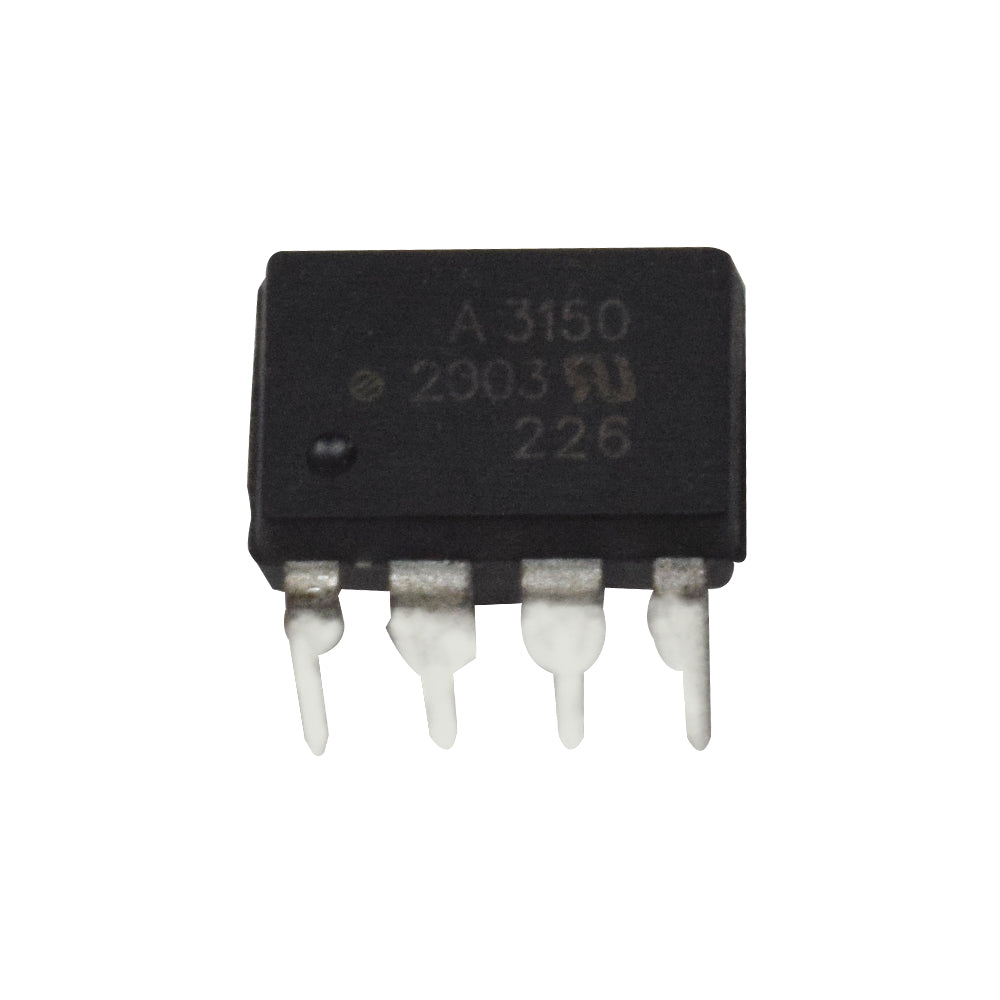

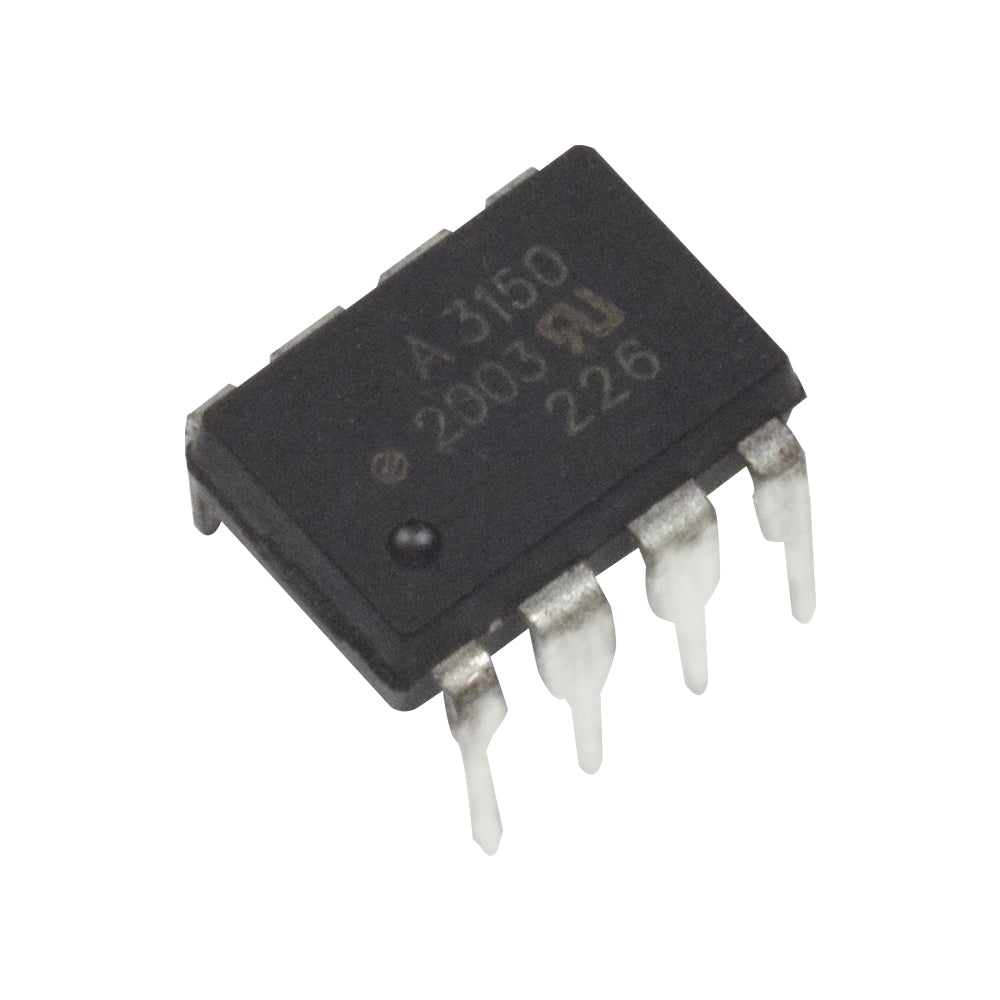

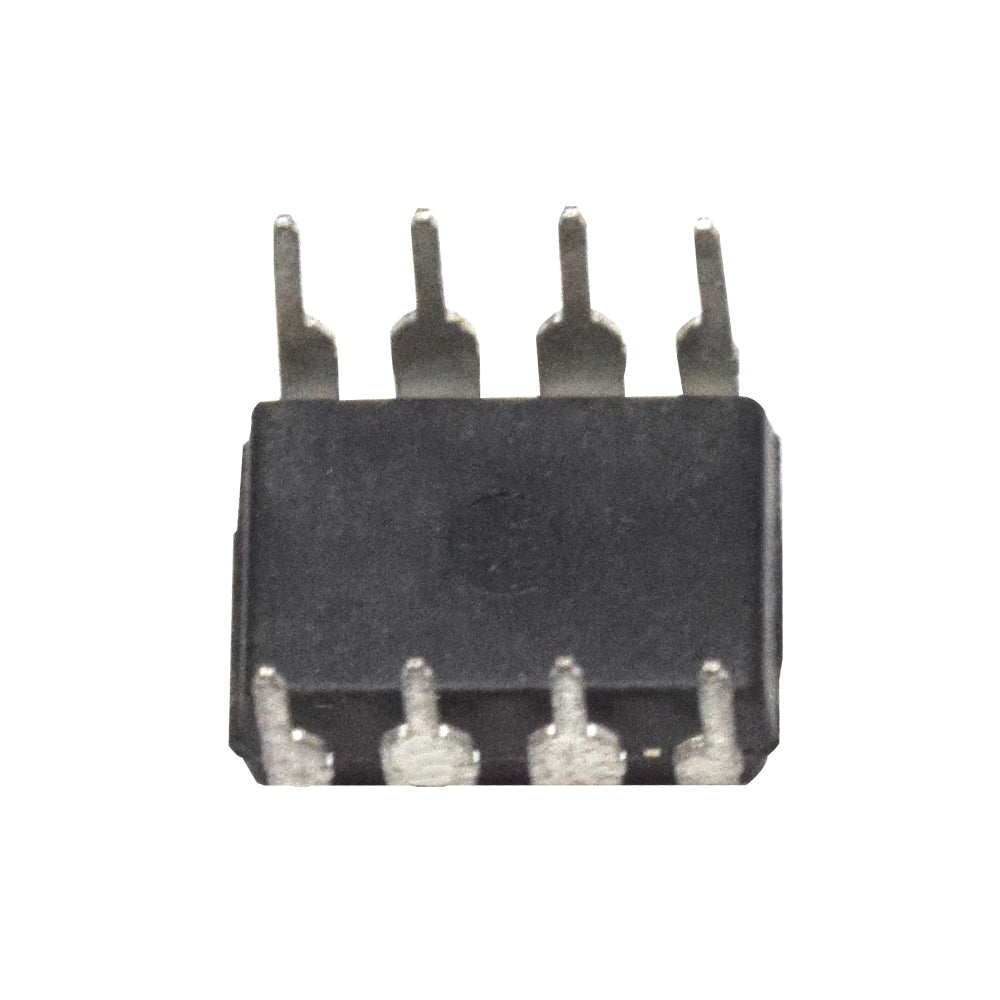

A3150 Optocoupler used in motor control inverter applications, this optocoupler is perfectly suited. The output stage's large operating voltage range supplies the drive voltages needed by gate-controlled devices. This optocoupler is perfectly suited for directly driving IGBTs with ratings up to 1200V/50A due to the voltage and current it supplies. The HCPL-3150/315J can be used to drive a discrete power stage that drives the IGBT gate for IGBTs with greater ratings.
Features
-
0.6A maximum peak output current
-
1.0V maximum low level output voltage (VOL) eliminates need for negative gate drive
-
Under voltage lock-out protection (UVLO) with hysteresis
-
Wide operating VCC range: 15V to 30V
-
±0.35-µs maximum delay between devices/channel
Specification
| Model | A3150 |
| Type | Optocoupler |
| No of Pins | 8 |
| Channels | 1 |
| Package | 8 Pin DIP |
| Output current | 0.5A |
| Maximum switching speed | 500nS |
| Operating voltage range | 15 to 30V |
| Country of Origin | China |
