Description

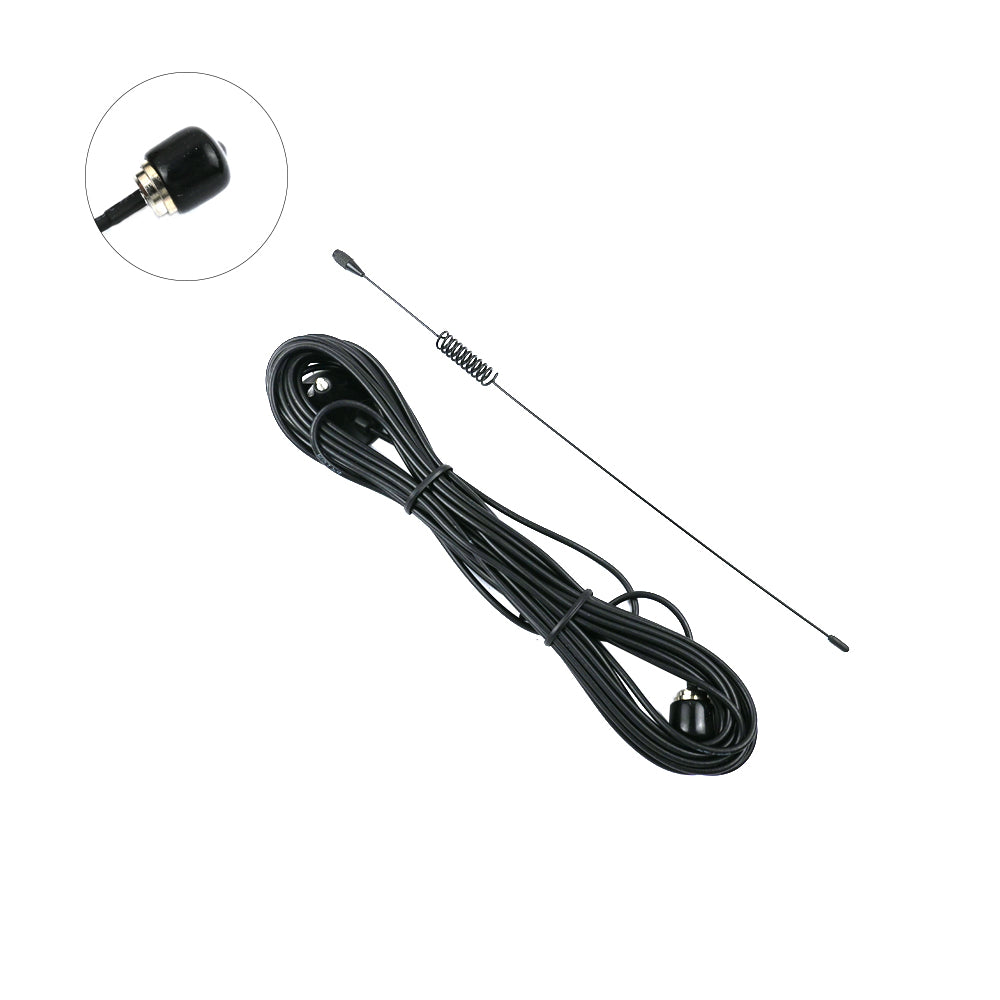

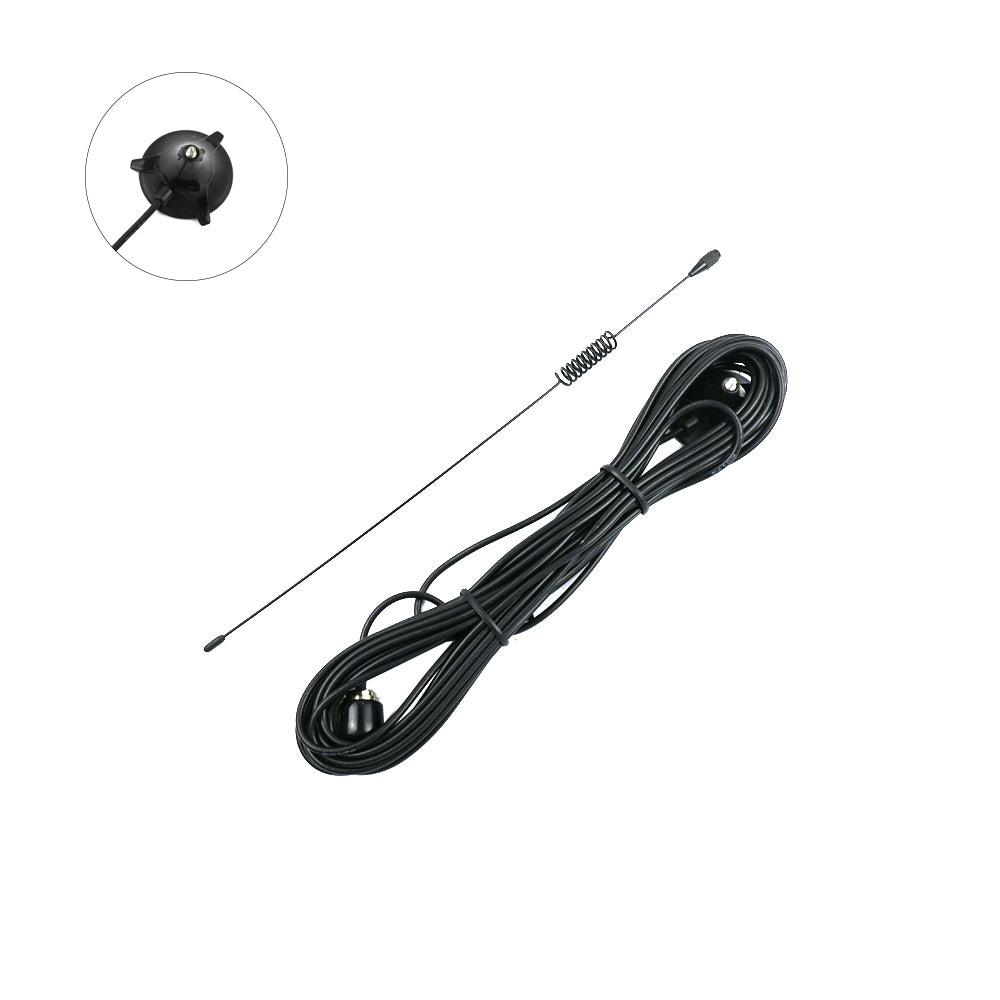

It's a GSM magnetic base antenna for GSM FWP GSM Landline Phone. Its frequency range lies between 900-2200Mhz and its bandwidth is 70/170. This is a vertical polarization types magnetic base antenna whose maximum input power is 50W and the input impedance is 50ohm. This antenna is commonly used in GSM repeater, GSM Module, GSM modems & GSM sensor .
Features
- Magnetic base type
- Low VSWR
- Light Weight
- Easy to Install
- Boosts Data Downloading Speed
Specification
| Product type | GSM magnetic base Antenna |
| Gain ( DBI ) | 3-7 |
| Frequency range | 900-2200Mhz |
| Bandwidth | 70/170Mhz |
| VSWR | ≤2.0 |
| Polarization | Vertical |
| Input Power | 50W |
| Input Impedance | 50 Ohm |
| Dimension | Antenna length- 280mm , Wire- 3meter |
| Country of Origin | China |
