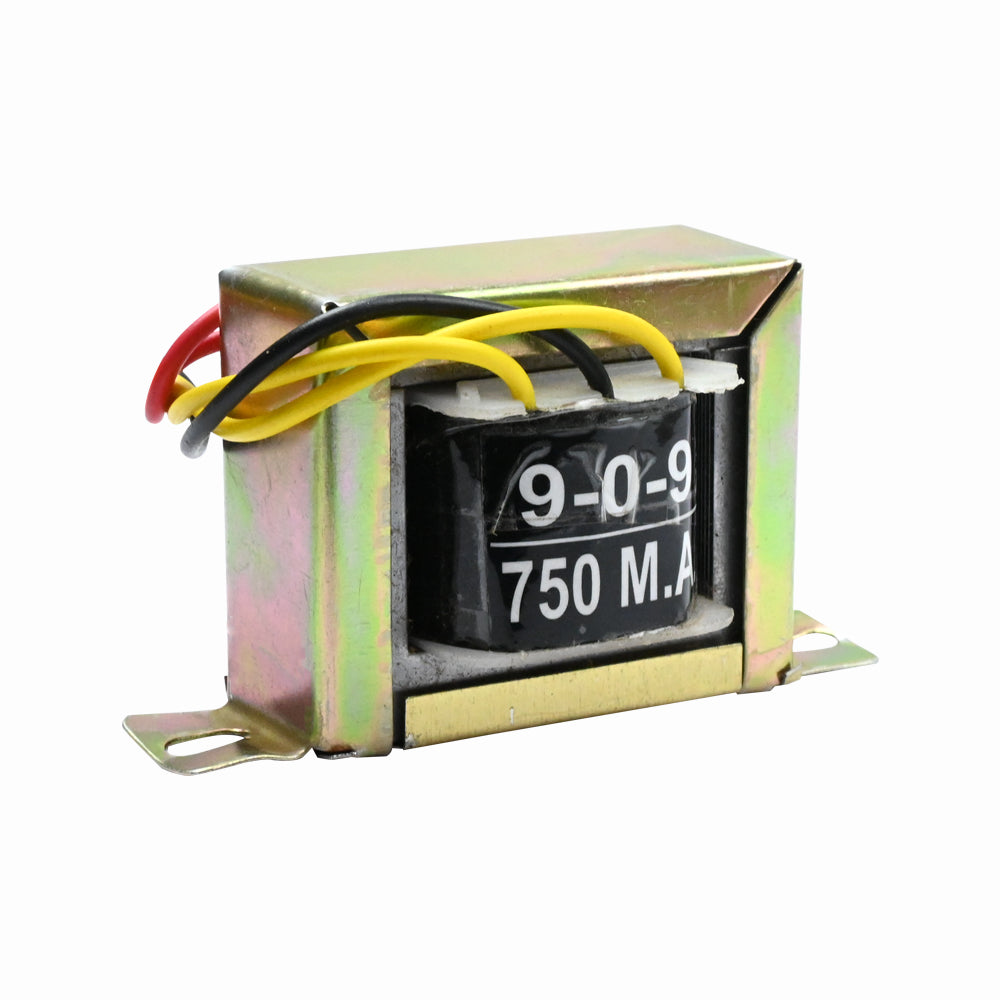

9-0-9V 750ma Center Tapped Step Down Transformer

Save 6%
Sold By: HatchnHackSKU: J04-34

Price:
Sale price₹ 95.00 Regular price₹ 101.00

Tax included Shipping calculated at checkout

Min Qty: 1

Description

9-0-9 9V 750mA Step down Transformer is a general purpose chassis mounting mains transformer. Transformer has 240V primary windings and centre tapped secondary winding. The Transformer act as step down transformer reducing AC - 240V to AC - 9V. The Transformer is a center tapped transformer which gives two outputs of 9V, 9V and 0V. We can connect two 9V loads or one 18V load to the transformer.

Features

  • Soft Iron Core.
  • 750 mA Current Drain
  • Center Tapped Transformer
  • Applications: On chassis AC/AC converter, Designing a battery Charger.
Specifications
Frequency 50/60Hz
Output Current 750mA
Mounting Type Panel Mount
Type Transformer
Dimension 73x35x42mm
Voltage 9-0-9V
