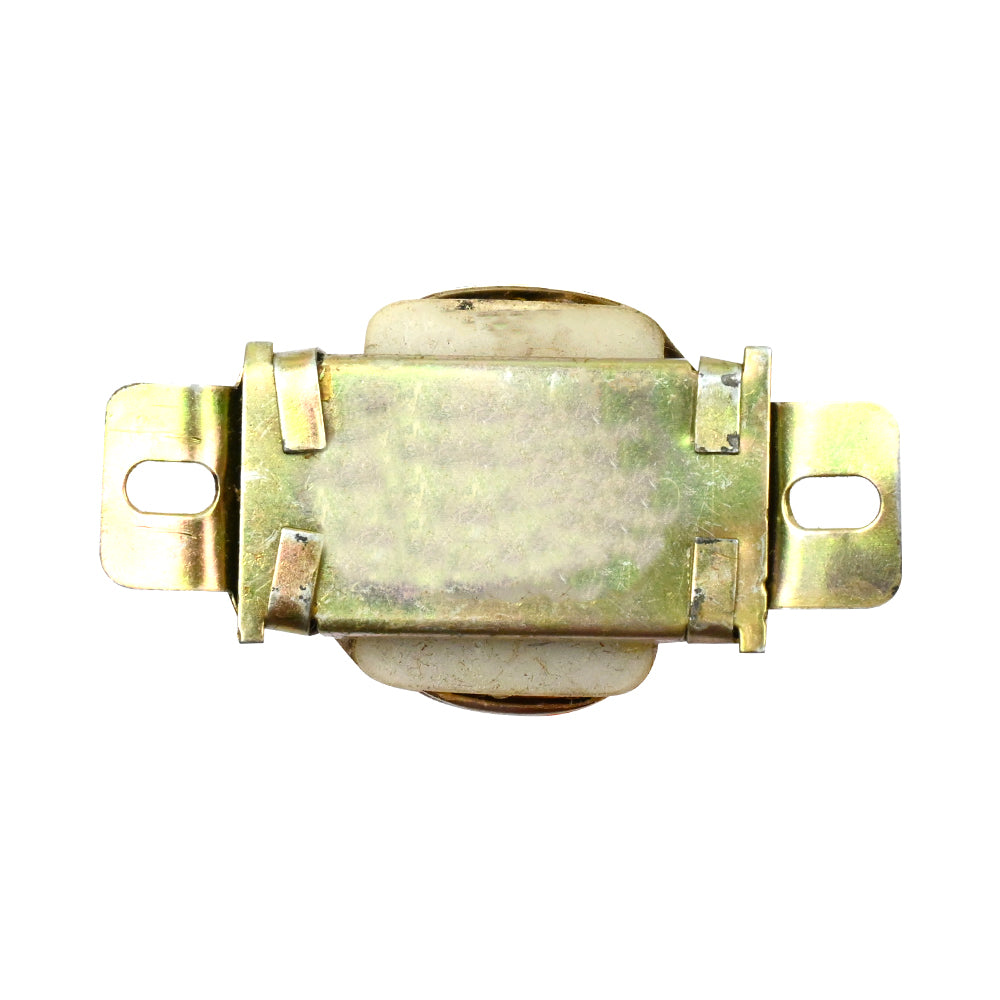

9-0-9V 500ma Center Tapped Step Down Transformer

Save 5%
Sold By: HatchnHackSKU: J04-27

Price:
Sale price₹ 75.00 Regular price₹ 79.00

Tax included Shipping calculated at checkout

Min Qty: 1

Description

9-0-9 9V 500mA Step down Transformer is a general purpose chassis mounting mains transformer. Transformer has 240V primary windings and centre tapped secondary winding. The Transformer act as step down transformer reducing AC - 240V to AC - 9V. The Transformer is a center tapped transformer which gives two outputs of 9V, 9V and 0V. We can connect two 9V loads or one 18V load to the transformer. A center tapped transformer has equal winding in primary and secondary coil, which is mostly prefer to used in Rectification Circuit. Like in full wave rectifier, LED Driver, SMPS, UPS DC motor Driver.

Features

  • Soft Iron Core.
  • 500mA Current Drain
  • Center Tapped Transformer
  • Applications: On chassis AC/AC converter, Designing a battery Charger.
Specifications
Model 9-0-9V
Frequency 50/60Hz
Output Current 500mA
Mounting Type Panel Mount
Type Center Tapped Transformer
Core Type Soft Iron Core
Dimension 40x35x32mm
Voltage 9-0-9V
No. of Pins 2
