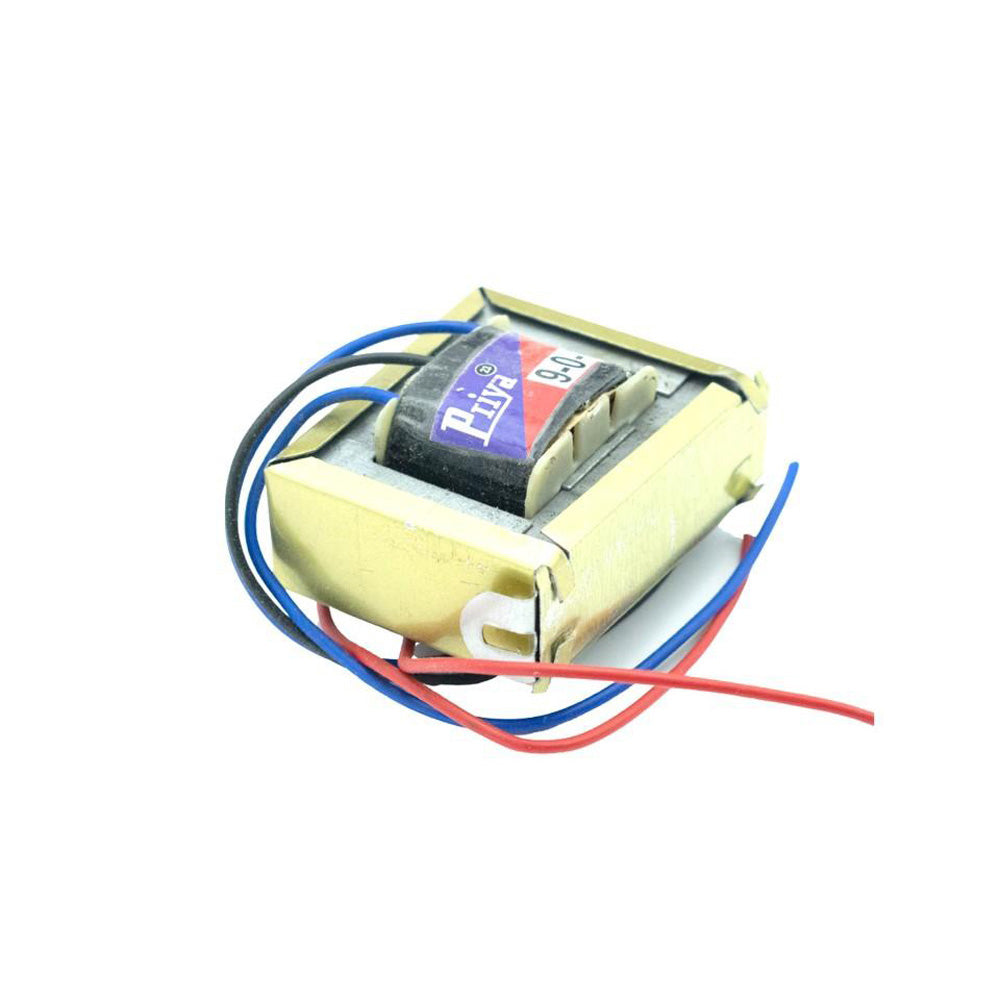

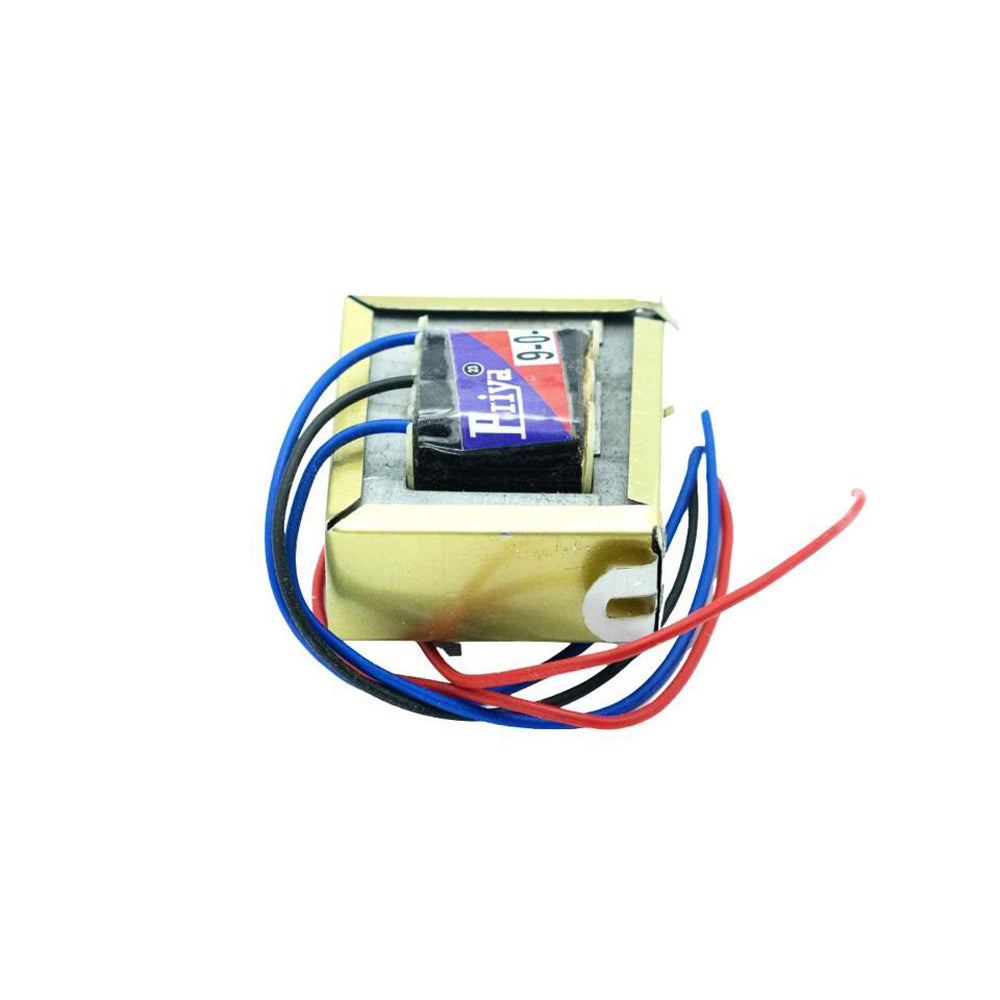

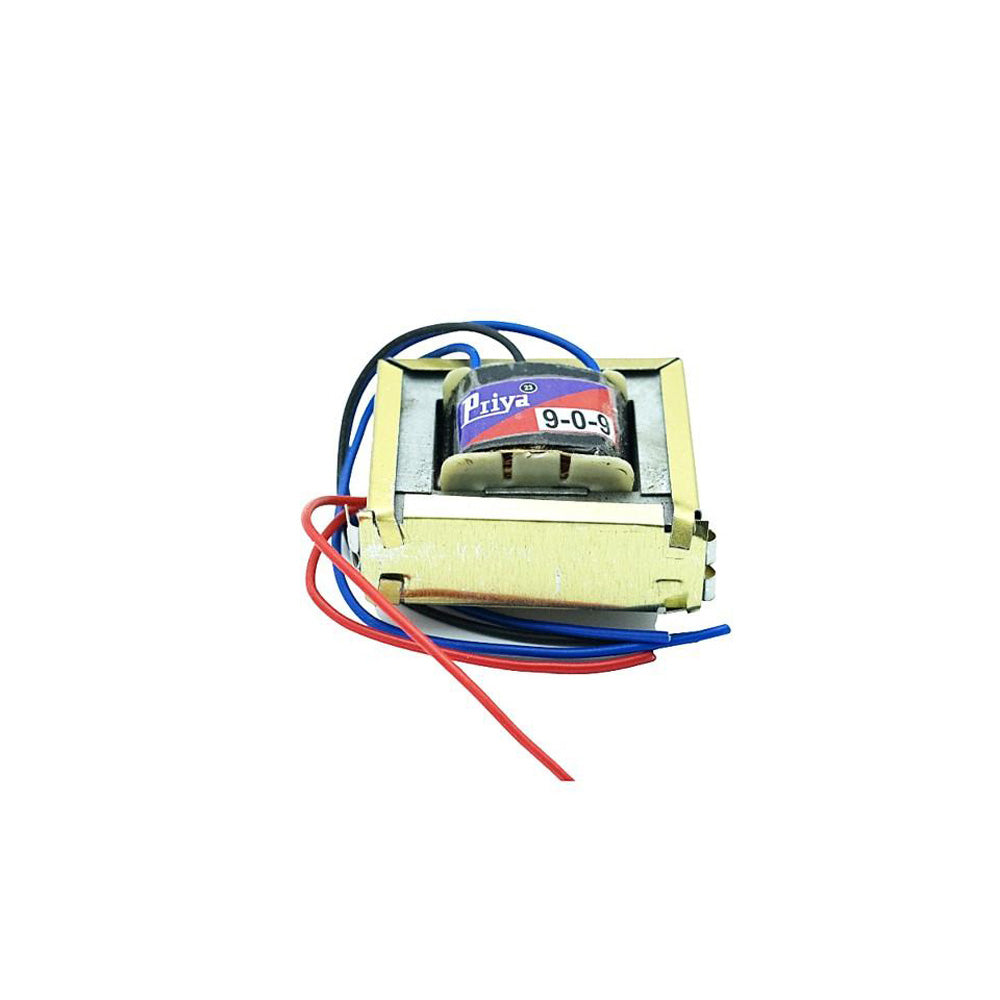

9-0-9 9V 1A Step down Transformer is a general purpose chassis mounting mains transformer. Transformer has 240V primary windings and centre tapped secondary winding. The transformer has flying colored insulated connecting leads (Approx 100 mm long ). The Transformer act as step down transformer reducing AC - 240V to AC - 9V. The Transformer is a center tapped transformer which gives two outputs of 9V, 9V and 0V. We can connect two 9V loads or one 18V load to the transformer.
Features
Soft Iron Core.
1A Current Drain.
Center Tapped Transformer. dr
Applications: On chassis AC/AC converter, Designing a battery Charger.
