Description

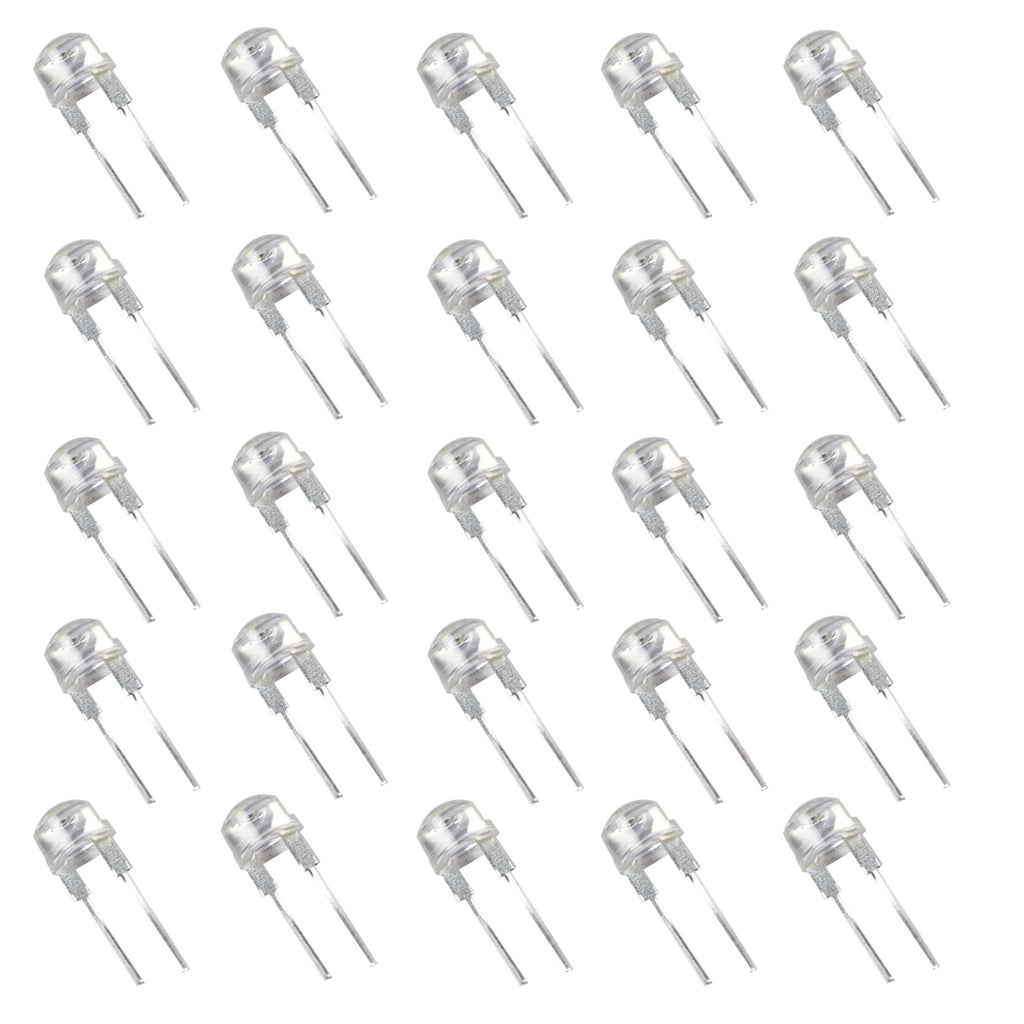

A Straw Hat LED features a special lens that allows it to scatter light similar to an incandescent light bulb. A basic LED emits light from a relatively small region, usually less than 45 degrees. The light from a Straw Hat LED is projected at a significantly broader viewing angle, generally around 120 degrees. Its Forward voltage is 2.8 to 3.4V and it is a Through Hole LED. These LEDs are used for general-purpose in electronic circuits, modules, devices, indicator lights, light Sources, and many other devices. These LEDs have two terminals Anode(+) and Cathode(-). Because of the broader viewing angle, the emitted light is distributed over a larger region, avoiding the need for external lens designs.
Pin Configuration
|
Pin Name |
Description |
|
Anode |
Positive terminal of LED(the big leg of the LED ) |
|
Cathode |
Negative terminal of LED(the small leg of the LED) |
Specifications
| Brand | ENSEE |
| Product | 8mm Warm White StrawHat 3Chip LED |
| Colour | Warm White |
| Forward Voltage | 2.8-3.4V |
| Mounting Type | Through Hole |
| Lens Colour | Clear |
| No. of Pins | 02 |
| Diameter | 8mm |
| Type | StrawHat LED |
| Colour-Temperature (CCT) |
2700-3300K |
| MCD | 2400-2600 mcd |
| Quantity | 500Pcs |
| Country of Origin | China |
