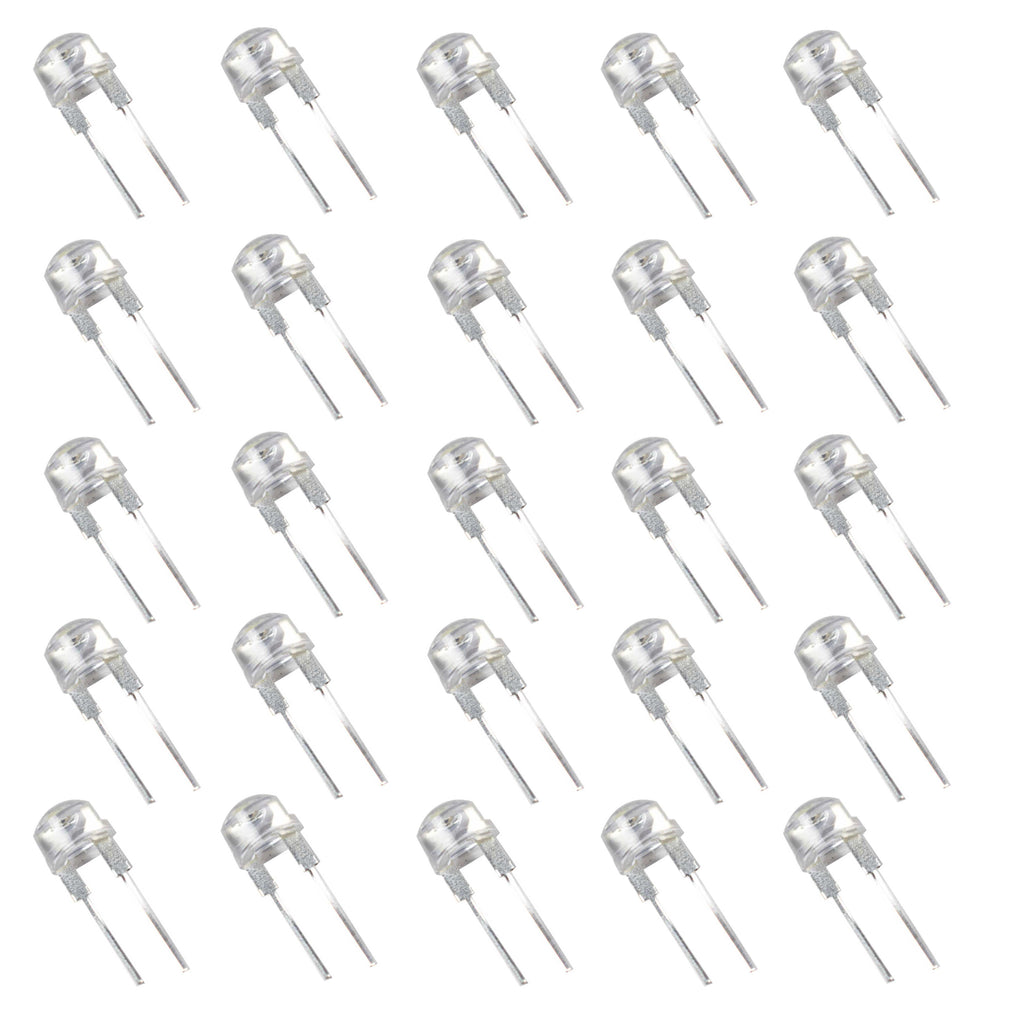

8mm Clear Red Straw Hat LED 3Chip (1800-2200mcd)

Save 25%
Sold By: HatchnHackSKU: A02-08

Price:
Sale price₹ 1.50 Regular price₹ 2.00

Tax included Shipping calculated at checkout

Min Qty: 5

Description

A Straw Hat LED features a special lens that allows it to scatter light similar to an incandescent light bulb. A basic LED emits light from a relatively small region, usually less than 45 degrees. The light from a Straw Hat LED is projected at a significantly broader viewing angle, generally around 120 degrees. Its Forward voltage is 1.8 to 2.4V and it is a Through Hole LED. These LEDs are used for general-purpose in electronic circuits, modules, devices, indicator lights, light Sources, and many other devices. These LEDs have two terminals Anode(+) and Cathode(-).

Because of the broader viewing angle, the emitted light is distributed over a larger region, avoiding the need for external lens designs.


Pin Configuration

Pin Name

Description

Anode

Positive terminal of LED(the big leg of the LED )

Cathode

Negative terminal of LED(the small leg of the LED)


Specifications
Brand ENSEE
Product 8mm Red StrawHat 3Chip LED
Colour Red
Forward Voltage 1.8-2.4V
Mounting Type Through Hole
Lens Colour Clear
No. of Pins 2
Diameter  8mm
Type StrawHat LED
Wavelength 620-625nm
MCD 1800-2200 mcd
Quantity 500Pcs
Country of Origin China
