Description

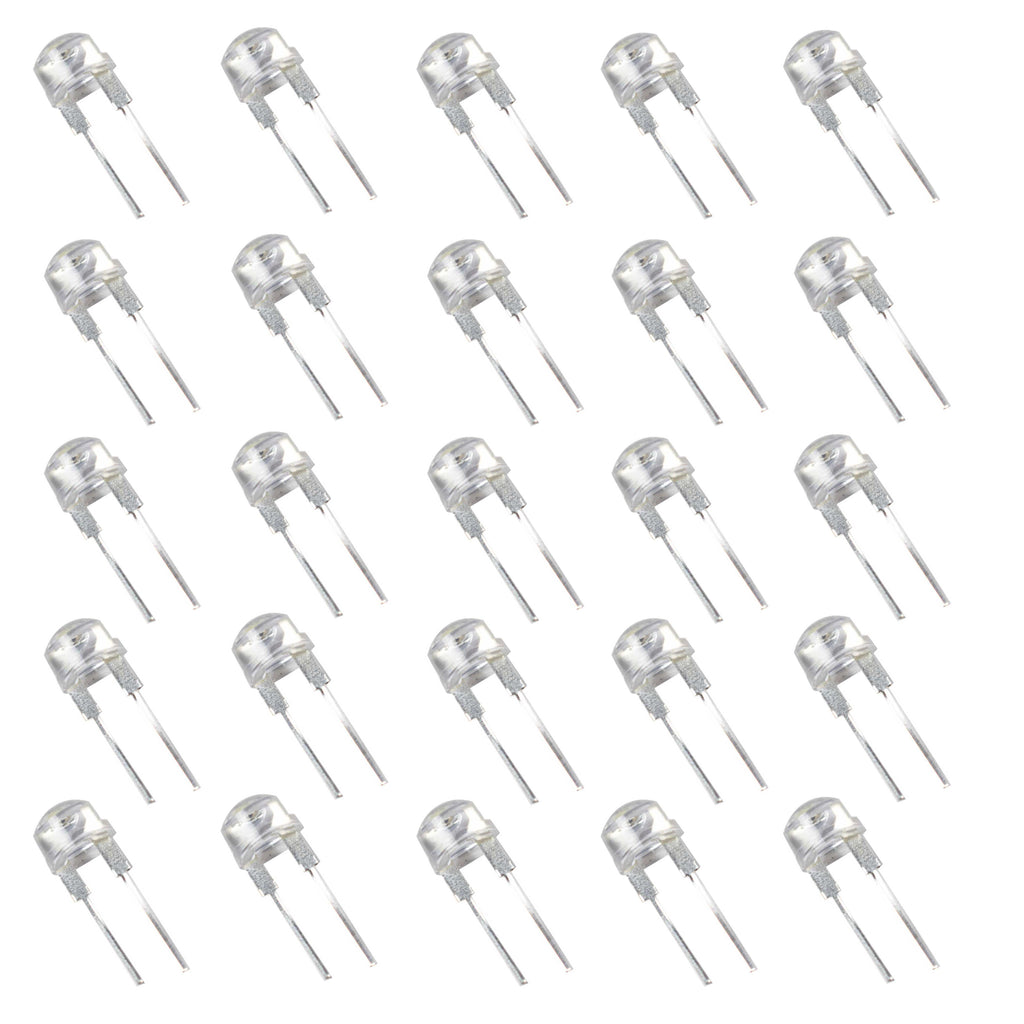

A Straw Hat LED features a special lens that allows it to scatter light, similar to an incandescent light bulb. A basic LED emits light from a relatively small region, usually less than 45 degrees. The light from a Straw Hat LED is projected at a significantly broader viewing angle, generally around 120 degrees. Its Forward voltage is 3.5 to 5.0V, and it is a Through Hole LED. These LEDs are general-purpose in electronic circuits, modules, devices, indicator lights, light Sources, and many other devices. These LEDs have two terminals, Anode(+) and Cathode(-).
Because of the broader viewing angle, the emitted light is distributed over a larger region, avoiding the need for external lens designs.
Pin Configuration
|
Pin Name |
Description |
|
Anode |
Positive terminal of LED(the big leg of the LED ) |
|
Cathode |
Negative terminal of LED(the small leg of the LED) |
Specifications
| Brand | ENSEE |
| Product | 8mm Red/Blue StrawHat LED |
| Colour | Red/Blue Blinking |
| Forward Voltage | 3.5-5.0V |
| Mounting Type | Through Hole |
| Lens Colour | Clear |
| No. of Pins | 2 |
| Diameter | 8mm |
| Type | StrawHat LED |
| Wavelength | 622/455nm |
| MCD | 1800/1800 mcd |
| Quantity | 500Pcs |
| Country of Origin | China |
