Description
An electrical cable that has a common conductive covering wrapped around its conductors for electromagnetic shielding is known as a shielded cable or screened cable. The cable's outermost layer often covers this shield. Foil type (hereafter: metallized film), contra spiraling wire strands (braided or unbraided), or both are the most widely used types of cable shielding. To short out each turn of the dielectric spiral foils, a longitudinal wire might be required.
Features:
- Its colour is Grey
- Its used in security system applications
- Its used to protect from power frequency and radio frequency interference

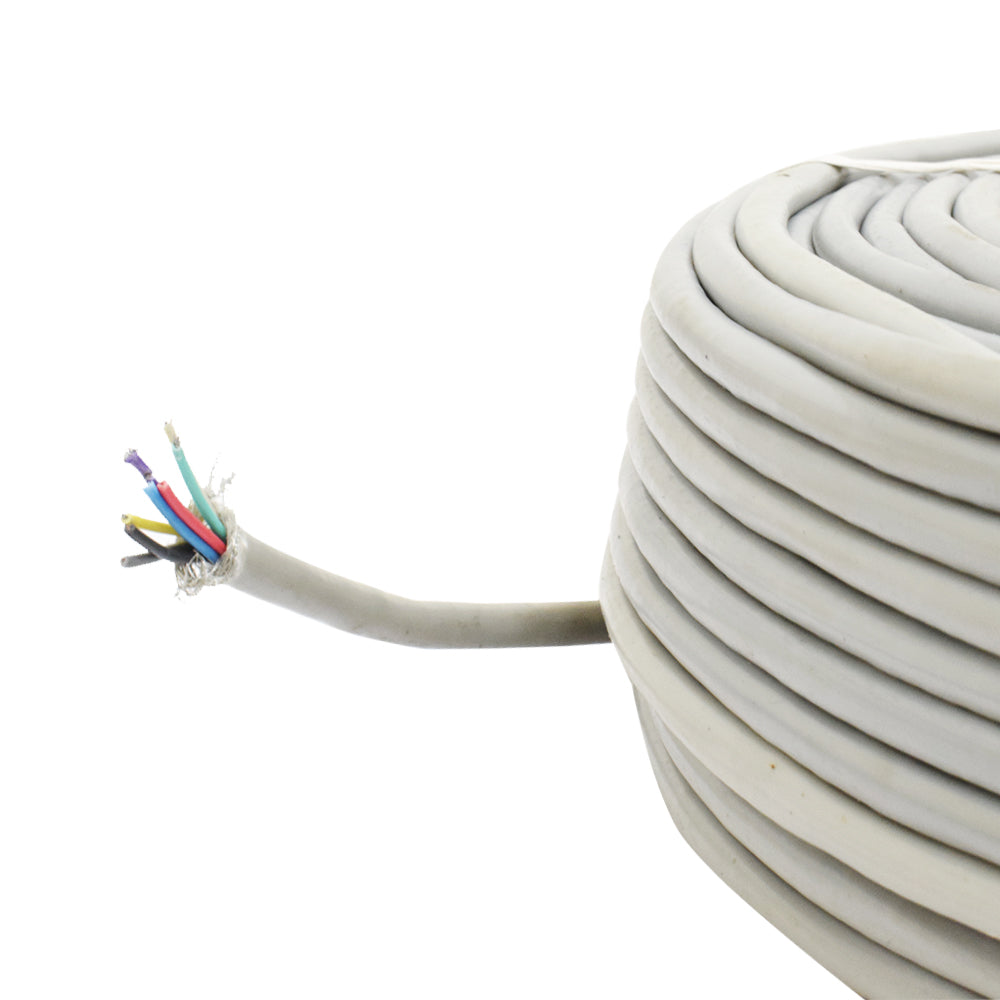

- It has 8 wires Internally The color is (Red, Green, Blue, Yellow, Grey, Purple, White, Black).
- Its has tinned copper Shield.
- It has 14 Stand per wire
Specifications:
| Model | G212R |
| Brand | Pundrik |
| Type | 8 Core Shield |
| Length | 90 Metre |
| Outer Color | Grey |
| Size | 14/.132mm(619) |
| No of Conductor wire in it | 8 |
| Country of Origin | China |
