8 Channel 5V 10A Relay Module with optocoupler
Rated 3.5/5 based on 11 customer reviews
8 Channel 5V 10A Relay Module with optocoupler

8 Channel 5V 10A Relay Module with optocoupler

  • Number of Channels: 8
  • Operating Voltage: 5V
  • Maximum Switching Current (AC): 10A @ 250V AC
  • Maximum Switching Current (DC): 10A @ 30V DC
  • Size: 140x58mm
In Stock
Product SKU: 0L31
325.00
₹ 275.42 + ₹ 49.58 (18% GST)
Wishlist
  • Order within
  • 8 Channel 5V 10A Relay Module with optocoupler
    8 Channel 5V 10A Relay Module with optocoupler ₹ 325.00
This product: 8 Channel 5V 10A Relay Module with optocoupler
₹ 325.00 32500
₹ 325.00

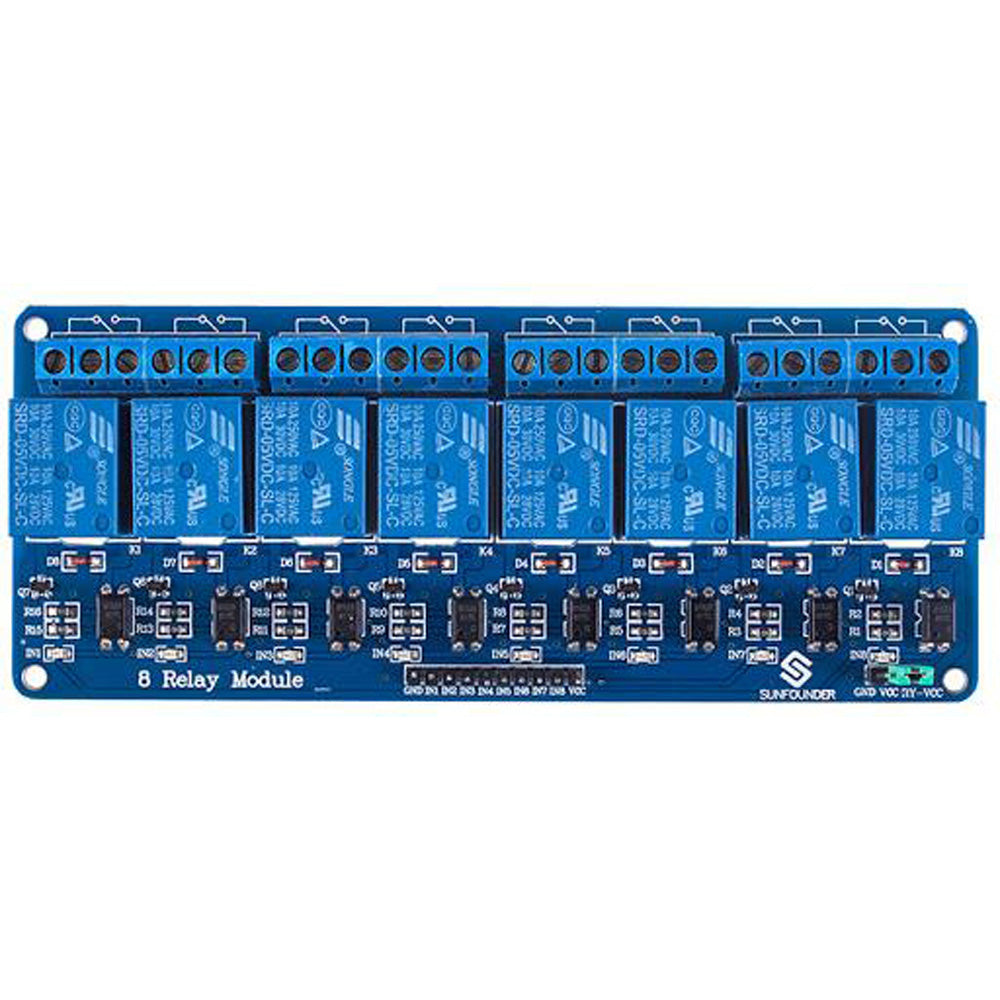

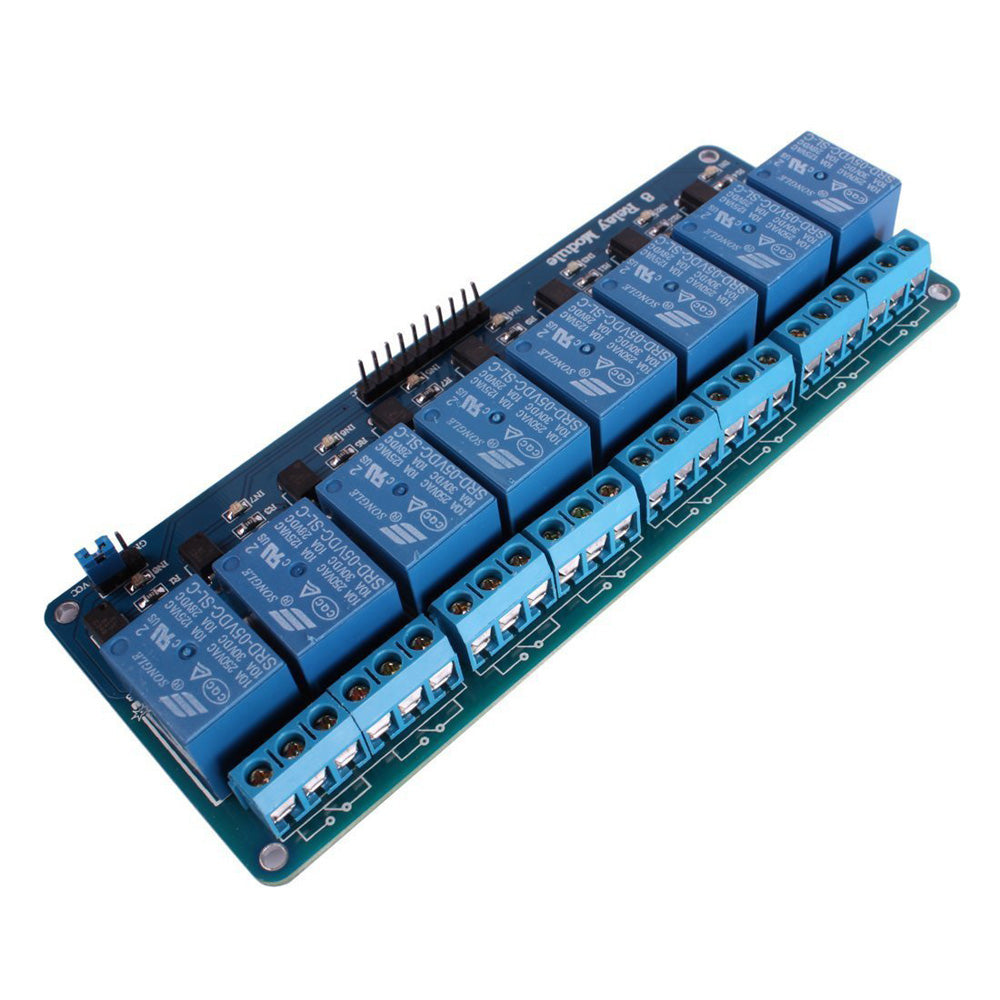

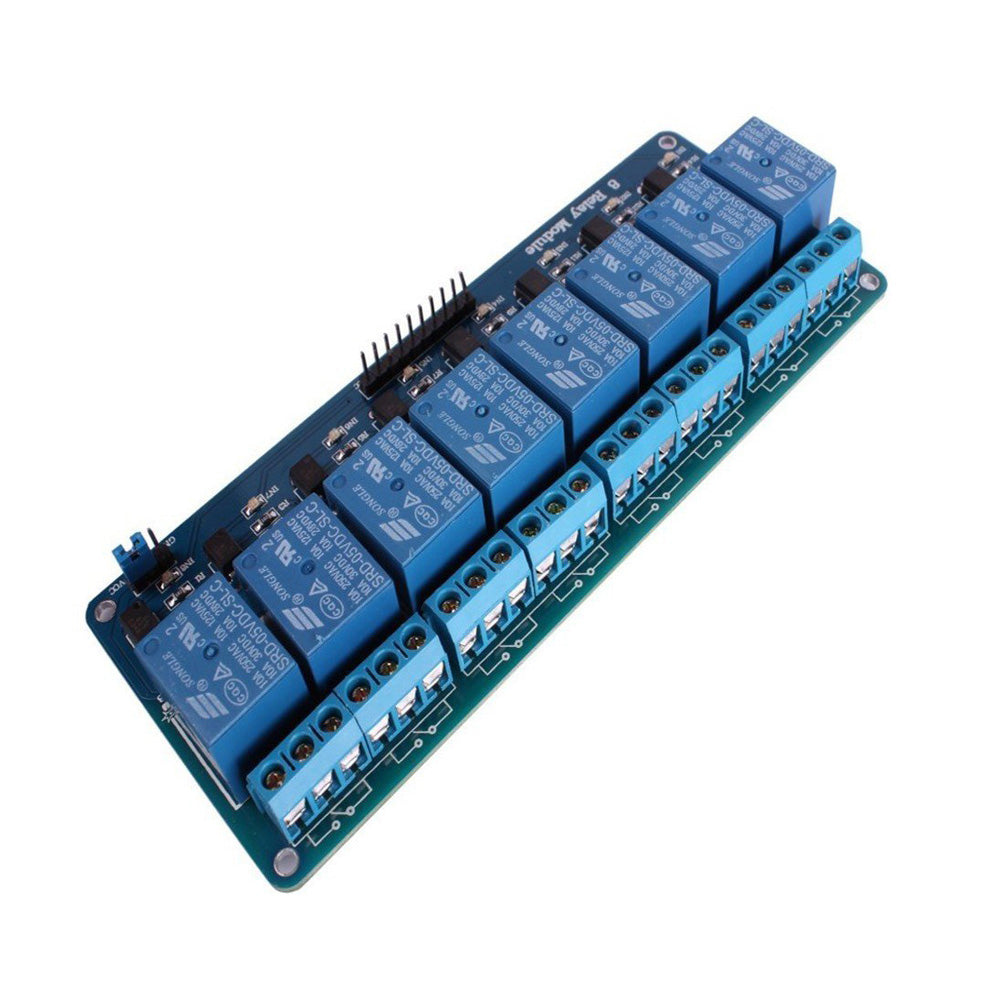

This is an 8 Channel 5V 10A Relay Module with optocoupler. The output rating for each relay is 230 volts 10 Ampere or 10 ampere at 30 volt DC. Since each relay is provided with independent common terminal along with Normally Open (NO) and Normally Closed (NC) pins it is very easy to use. Each trigger pin is isolated from the relay using a opto-coupler thus making sure your circuit is saved.. 8 LED indicators are provided to display the individual Relay Status. The relays can be controlled directly by a wide range of microcontrollers such as Arduino , 8051, AVR, PIC, PLC,DSP, ARM, ARM, MSP430, TTL logic circuits, etc.

This is an 8 Channel 5V 10A Relay Module with optocoupler. The output rating for each relay is 230 volts 10 Ampere or 10 ampere at 30 volt DC. Since each relay is provided with independent common terminal along with Normally Open (NO) and Normally Closed (NC) pins it is very easy to use. Each trigger pin is isolated from the relay using a opto-coupler thus making sure your circuit is saved.. 8 LED indicators are provided to display the individual Relay Status. The relays can be controlled directly by a wide range of microcontrollers such as Arduino , 8051, AVR, PIC, PLC,DSP, ARM, ARM, MSP430, TTL logic circuits, etc.

Channels  8
Operating Voltage 5V
Max Switching Current (AC) 10A @250V AC
Max Switching Current (DC) 10A @30V DC
Dimension (LxW) 140x58 mm
