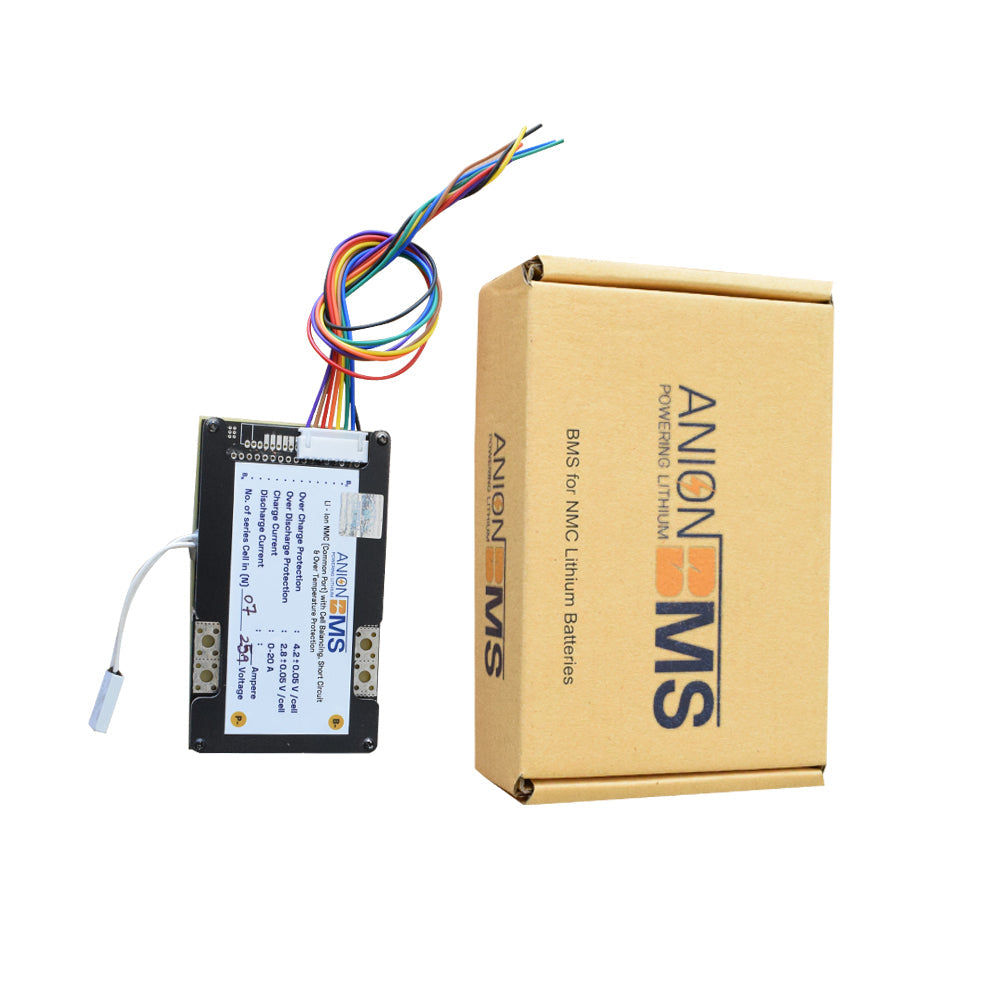

Description
A BMS or protection board is any electronic control circuit that monitors, manages, and regulates the charging and discharging of any rechargeable battery (cell or combination of cells called a battery). The lithium-ion batteries can be used only in specified conditions called the safe operating area, and therefore BMS is necessary in order to monitor the battery state, ensure the safety of operation, long battery life. The battery characteristics to be monitored include its state of charge, safe operating area, voltage, current, temperature, individual cell voltage, battery capacity and many more.
Applications
This protection board is widely used in all kinds of 18650 Li-ion battery packs and offers multi-scenario applications.
- Electric tools
- Electric Vehicle E-Bicycle / E-Scooter/Bike
- Battery backup systems
- Solar/Wind energy storage systems, Solar street lamps

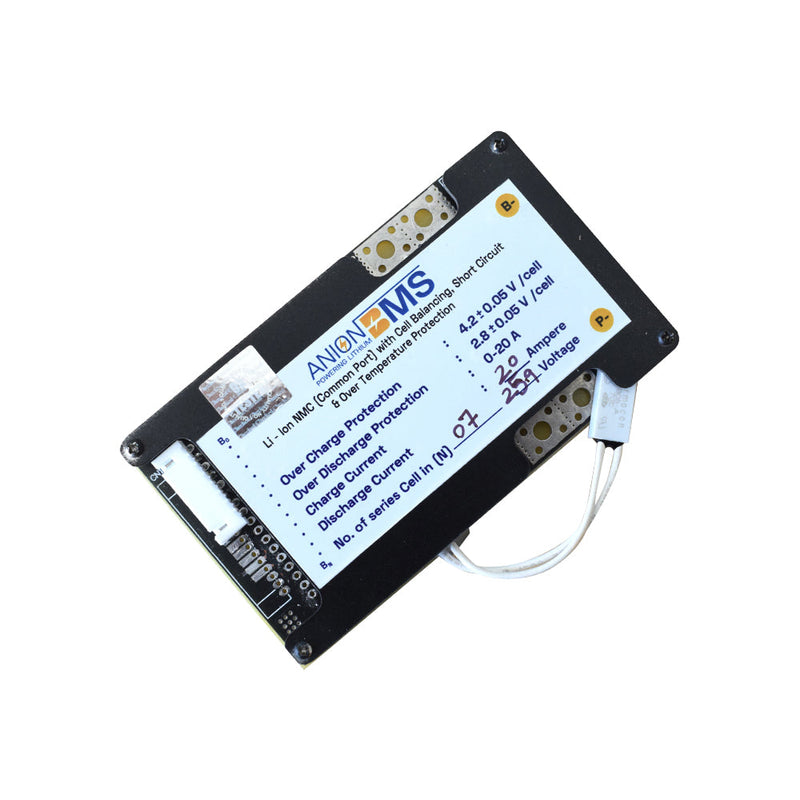

Specifications
| Product Type | Battery Management System (BMS) |
| Brand | Anion BMS |
| Variant | 7S | 25.9 V |
| Overcharge Detect Voltage | 4.2±0.05 V/Cell |
| Over-discharge Detect Voltage | 2.8±0.05 V/Cell |
| Cell Balancing | Yes, (Passive) |
| Short Circuit Protection | Yes |
| Temperature Protection | 70°C |
| Charge Current | 0-20A |
| Discharge Current | 40A |
| Size | 105.8x62x12mm |
| Country of Origin | India |
