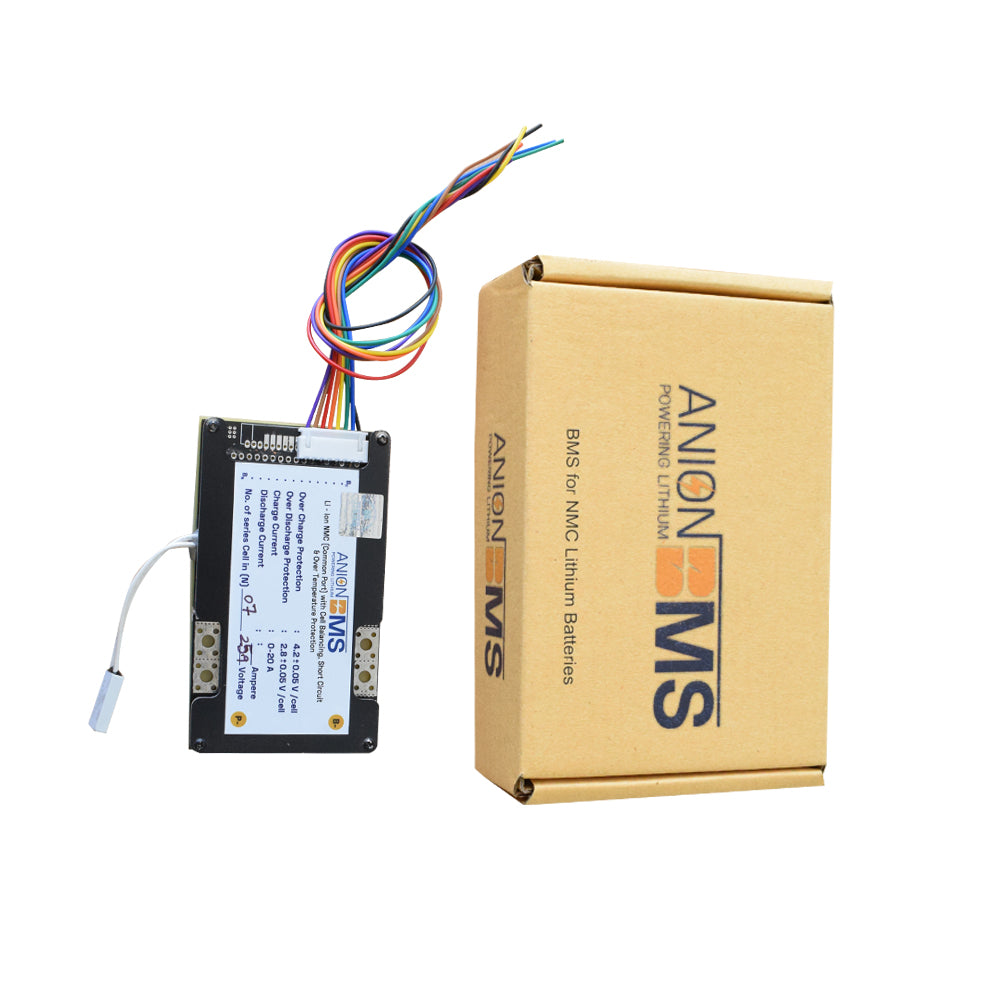

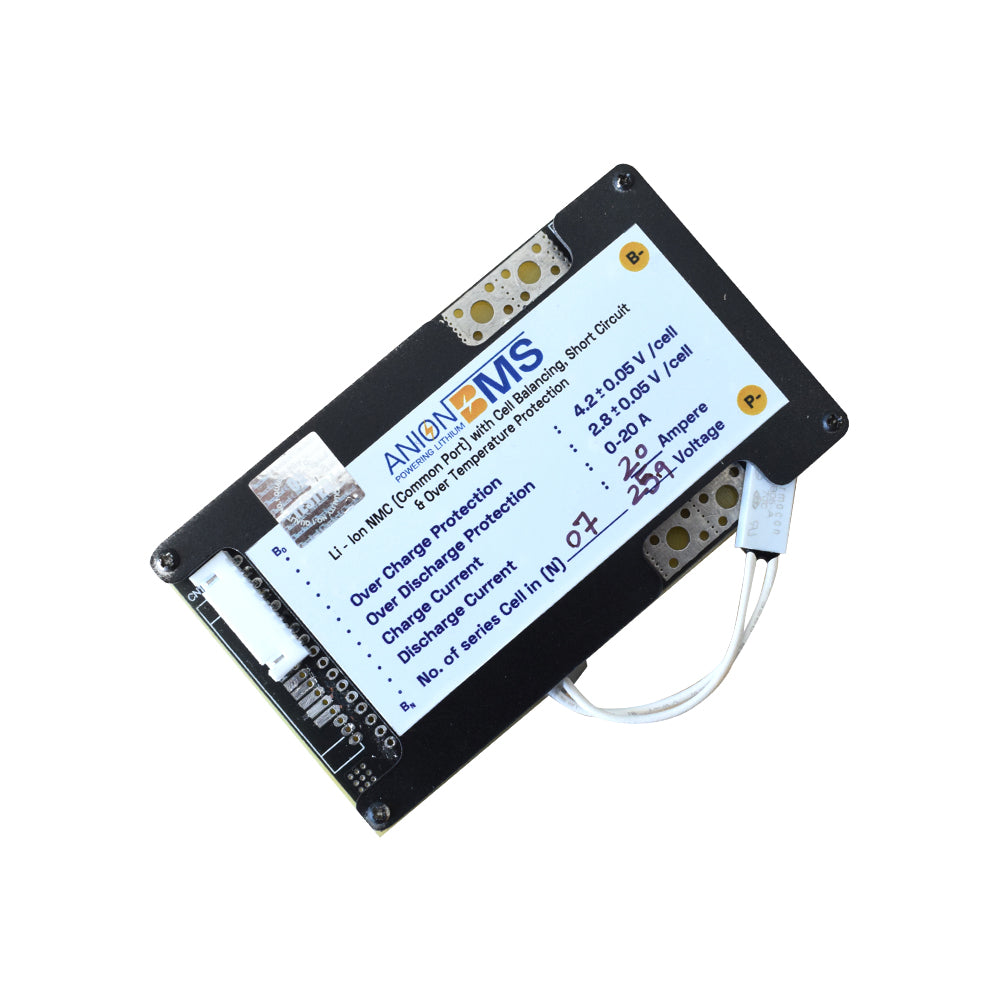

7S 25.9V 20A BMS for Lithium Ion NMC Battery With Cell Balancing (Common Port)

Save ₹ 111.00
Sold By: MS InstrumentationSKU: ANION - 0001

Style: 20A
Price:
Sale price₹ 789.00 Regular price₹ 900.00

Tax included Shipping calculated at checkout

Min Qty:

Description

A BMS or protection board is any electronic control circuit that monitors, manages, and regulates the charging and discharging of any rechargeable battery (cell or combination of cells called a battery). The lithium-ion batteries can be used only in specified conditions called the safe operating area, and therefore BMS is necessary in order to monitor the battery state, ensure the safety of operation, long battery life. The battery characteristics to be monitored include its state of charge, safe operating area, voltage, current, temperature, individual cell voltage, battery capacity and many more.

The main task of battery management systems is to ensure the optimal use of the residual energy present in a battery. In order to avoid loading of batteries, BMS protects the battery from:

  • Deep discharge due to extremely high discharge current.
  • Over-voltage due to extremely fast charge.
  • Cell balancing in the case of multi-cell batteries by monitoring and regulating the charging and discharging of individual cells.
  • High Temperature
  • Short circuit of external load.

Protection

This BMS offers below mentioned protection of utmost importance.

  • Overcharge Protection
  • Temperature Sensor Protection
  • Over-discharge Protection
  • Overcurrent Protection
  • Short Circuit Protection
  • Cell Balancing Function

Applications

This protection board is widely used in all kinds of 18650 Li-ion battery packs and offers multi-scenario applications.

  • Electric tools
  • Electric Vehicle E-Bicycle / E-Scooter/Bike
  • Battery backup systems
  • Solar/Wind energy storage systems, Solar street lamps
Specifications
Product Type Battery Management System (BMS)
Brand Anion BMS
Variant 7S | 25.9 V
Overcharge Detect Voltage 4.2±0.05 V/Cell
Over-discharge Detect Voltage 2.8±0.05 V/Cell
Cell Balancing Yes, (Passive)
Short Circuit Protection Yes
Temperature Protection 70°C
Charge Current  0-20A
Discharge Current 20A | 30A
Size  105.8x62x12mm
Country of Origin  India
