7MBR35SB120-50 IGBT

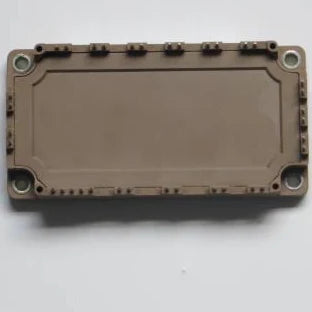

The 7MBR35SB120-50 is a power module containing insulated-gate bipolar transistors (IGBTs) designed for high-efficiency switching applications. It operates at a voltage rating of 1200V and a current rating of 35A. This module is commonly used in industrial drives, inverters, and motor control systems due to its low power loss and high-speed switching capabilities. Its compact design facilitates easy integration into various electronic systems.

Specifications:

1. Collector-Emitter Voltage (Vce): 1200V
2. Collector Current (Ic): 35A
3. Gate-Emitter Voltage (Vge): ±20V
4. Collector Dissipation (Pc): 200W
5. Operating Temperature: -40°C to 150°C
6. Storage Temperature: -40°C to 125°C
7. Insulation Voltage: 2500V AC for 1 minute
8. Collector-Emitter Saturation Voltage (Vce(sat)): 2.1V
9. Turn-on Time: 0.8µs
10. Turn-off Time: 1.0µs
11. Module Type: High Power IGBT Module
12. Application: Inverters, motor drives, industrial power control
13. Package: Industrial standard package with integrated IGBT and freewheeling diodes
14. Weight: Approximately 150g
15. Mounting: Screw terminals for secure connections
