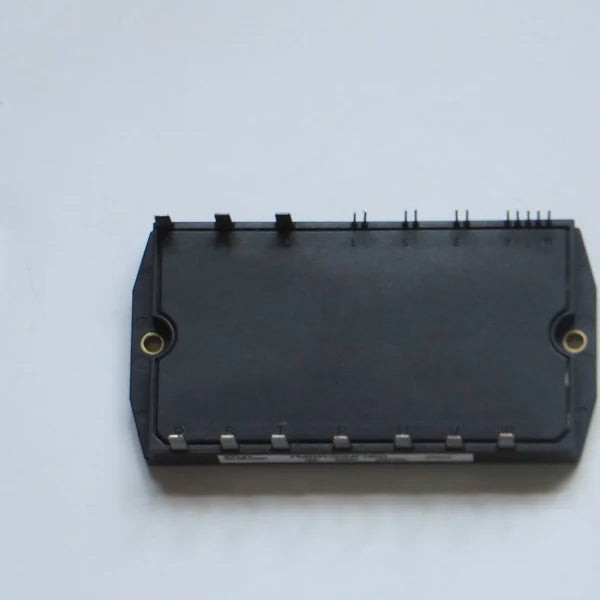

Fuji Electric 7MBR30SA06-7G IGBT

The 7MBR30SA06-7G is a new IGBT (Insulated Gate Bipolar Transistor) module from Fuji Electric (FE). It features a voltage rating of 600V and a current rating of 30A. This module is designed for high-efficiency power switching applications, offering robust performance and reliability in industrial and commercial systems.

Specifications:

1. Voltage Rating: 600V
2. Current Rating: 30A
3. Collector-Emitter Voltage (V_CE): 600V
4. Collector Current (I_C): 30A
5. Gate-Emitter Voltage (V_GE): ±20V
6. Collector Dissipation (P_C): 125W
7. Junction Temperature (T_j): -40°C to +150°C
8. Storage Temperature (T_stg): -40°C to +125°C
9. Thermal Resistance (R_thJC): 1.0°C/W
10. Mounting: Screw type
11. Package: Standard IGBT module package
12. Applications: Industrial motor drives, inverters, and power supplies
