Description

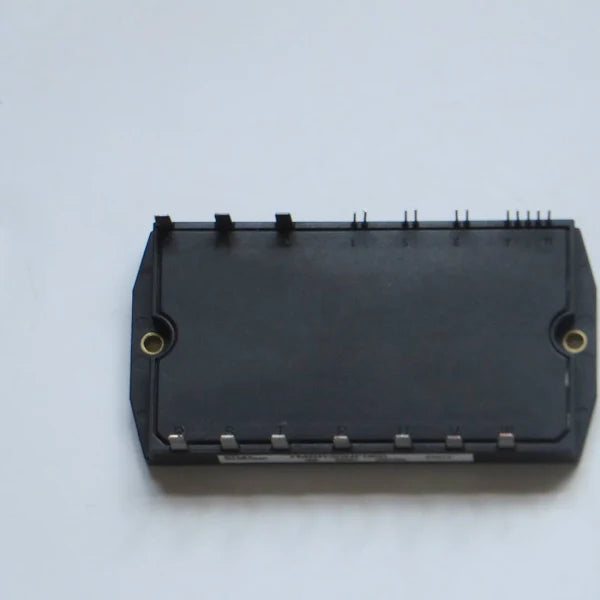

The 7MBR30NF060 is an Insulated Gate Bipolar Transistor (IGBT) module from Fuji Electric. It features a voltage rating of 600V and a current rating of 30A. This module is designed for high-speed switching applications, offering low saturation voltage and low power dissipation, ideal for inverters and motor drives.
Specifications:
- Maximum Collector-Emitter Voltage (Vce): 600V
- Collector Current (Ic): 30A
- Collector Power Dissipation (Pc): 160W
- Gate-Emitter Voltage (Vge): ±20V
- Collector-Emitter Saturation Voltage (Vce(sat)): 1.7V (typical)
- Total Switching Time (ton + toff): 0.7µs (typical)
- Operating Temperature Range: -40°C to 150°C
- Isolation Voltage: 2500VAC (1 minute)
- Module Configuration: Six IGBTs in one package
