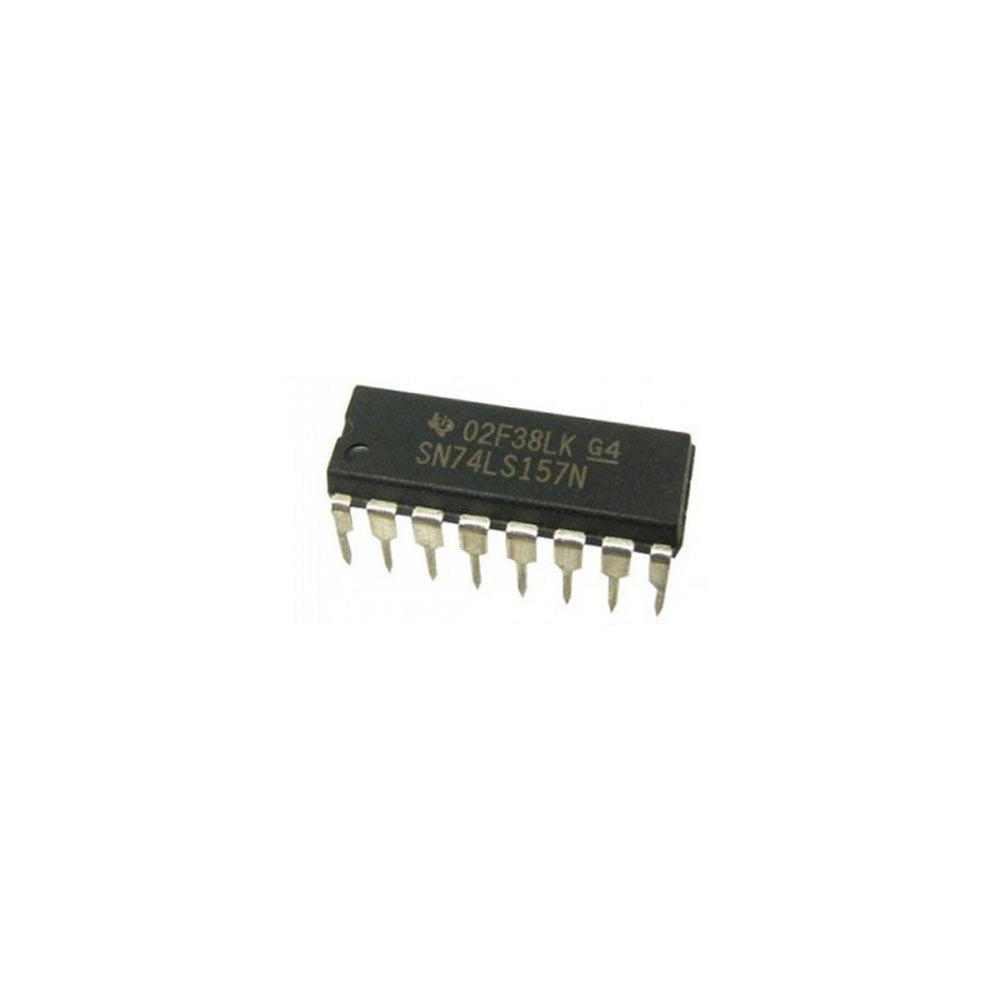

74LS157 Quad 2-Input Multiplexer IC (74157 IC) DIP-16 Package
Rated 3.5/5 based on 11 customer reviews
74LS157 Quad 2-Input Multiplexer IC (74157 IC) DIP-16 Package

74LS157 Quad 2-Input Multiplexer IC (74157 IC) DIP-16 Package

  • Operating Voltage Range: 4.5-5.5V
  • Package: DIP-16
  • Propagation Delay: 9ns
  • Temperature Range: -65°~150°C
In Stock
Product SKU: 2EE21
19.00
₹ 16.10 + ₹ 2.90 (18% GST)
Wishlist
  • Order within
  • 74LS157 Quad 2-Input Multiplexer IC (74157 IC) DIP-16 Package
    74LS157 Quad 2-Input Multiplexer IC (74157 IC) DIP-16 Package ₹ 19.00
This product: 74LS157 Quad 2-Input Multiplexer IC (74157 IC) DIP-16 Package
₹ 19.00 1900
₹ 19.00


74LS Series ICs are High-Speed Logic gates, ideally a little faster than 74HC series but more power consumption is required. They are implemented with a Low-Power Schottky diode technology to achieve high switching speed. 74LS157 is one of the 74LS series IC. 74LS157 ICs contain four 2-Input Multiplexer. This device has a common active-high select input pin (A'/B) and active-low enable pin (G)’. When G’ is HIGH, all of the outputs (Y) are forced LOW regardless of all other inputs. A common use of the LS157 is the moving of data from two groups of registers to four common output busses.

The 74LS157 ICs have an operating range of VCC from 4.5 V to 5.5 V. Maximum current consumption is 16 mA through Icc and 0.8 mA per input pin. And the maximum propagation delay is 9 ns. They can provide 0.4 mA at High Input and 8 mA at Low Input. They allow inputs and outputs up to VCC. The recommended operating VCC is 5 V.

Specification:

Operating Voltage Range 4.5 V to 5.5 V
Package DIP−16
Input Current 0.8 mA
Powering Current 16 mA
Propagation Delay 9 ns
Temperature Range -65 °C - 150 °C


Pin Configuration:

Input (1A, 1B, 2A, 2B, 3A, 3B, 4A, 4B) 2, 3, 5, 6, 11, 10, 14, 13
Output (1Y, 2Y, 3Y, 4Y) 4, 7, 9, 12
Enable (G') 15
Select Input (A'/B) 1
Power Supply (VCC) 16
Ground (GND) 8


Application:

  • Expand any data input point
  • Multiplex dual data buses
  • Generate four functions of two variables (one variable is common)
  • Source programmable counters


    74LS Series ICs are High-Speed Logic gates, ideally a little faster than 74HC series but more power consumption is required. They are implemented with a Low-Power Schottky diode technology to achieve high switching speed. 74LS157 is one of the 74LS series IC. 74LS157 ICs contain four 2-Input Multiplexer. This device has a common active-high select input pin (A'/B) and active-low enable pin (G)’. When G’ is HIGH, all of the outputs (Y) are forced LOW regardless of all other inputs. A common use of the LS157 is the moving of data from two groups of registers to four common output busses.

    The 74LS157 ICs have an operating range of VCC from 4.5 V to 5.5 V. Maximum current consumption is 16 mA through Icc and 0.8 mA per input pin. And the maximum propagation delay is 9 ns. They can provide 0.4 mA at High Input and 8 mA at Low Input. They allow inputs and outputs up to VCC. The recommended operating VCC is 5 V.

    Specification:

    Operating Voltage Range 4.5 V to 5.5 V
    Package DIP−16
    Input Current 0.8 mA
    Powering Current 16 mA
    Propagation Delay 9 ns
    Temperature Range -65 °C - 150 °C


    Pin Configuration:

    Input (1A, 1B, 2A, 2B, 3A, 3B, 4A, 4B) 2, 3, 5, 6, 11, 10, 14, 13
    Output (1Y, 2Y, 3Y, 4Y) 4, 7, 9, 12
    Enable (G') 15
    Select Input (A'/B) 1
    Power Supply (VCC) 16
    Ground (GND) 8


    Application:

    • Expand any data input point
    • Multiplex dual data buses
    • Generate four functions of two variables (one variable is common)
    • Source programmable counters
