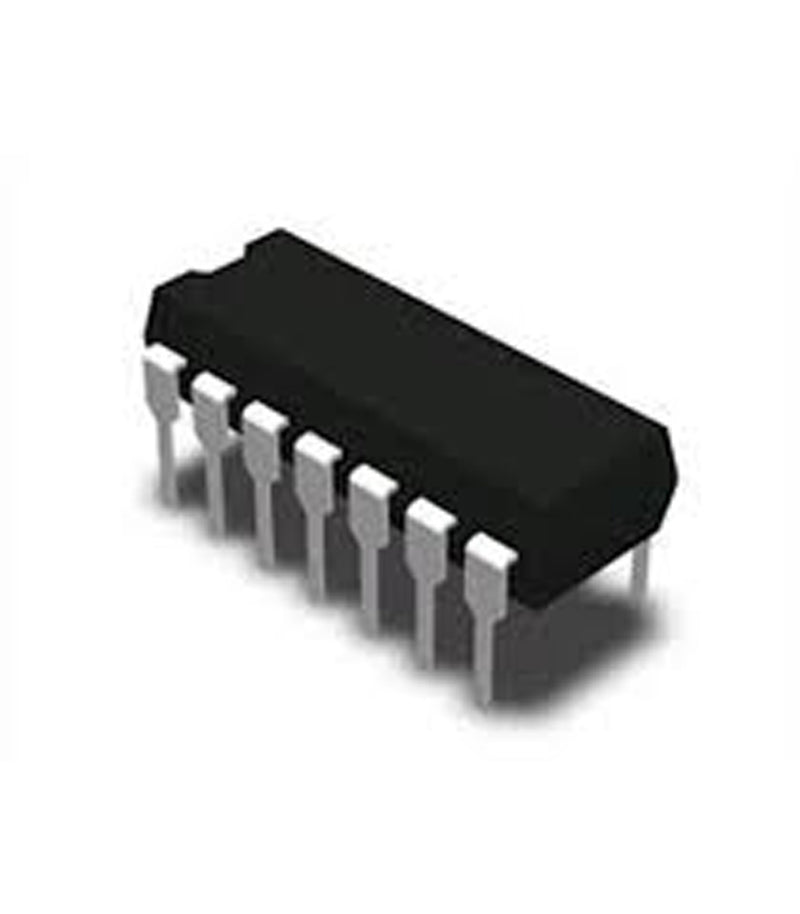

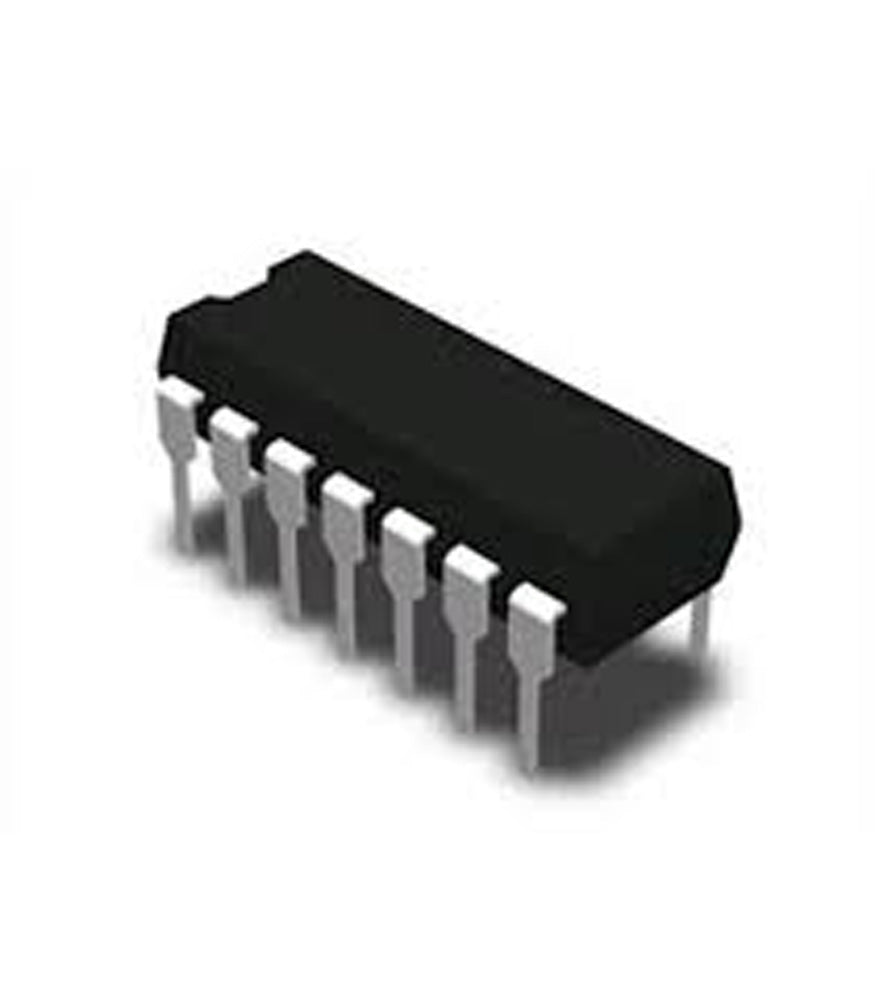

74HCT74 Two D Flip-Flop IC (7474 IC) DIP-14 Package

Save 8%
Sold By: HatchnHackSKU: C07-21

Price:
Sale price₹ 11.00 Regular price₹ 12.00

Tax included Shipping calculated at checkout

Out of stock

Description

The ’HC74 and ’HCT74 utilize silicon gate CMOS technology to achieve operating speeds equivalent to LSTTL parts. They exhibit the low power consumption of standard CMOS integrated circuits, together with the ability to drive 10 LSTTL loads. This flip-flop has independent DATA, SET, RESET and CLOCK inputs and Q and Q outputs. The logic level present at the data input is transferred to the output during the positive-going transition of the clock pulse. SET and RESET are independent of the clock and are accomplished by a low level at the appropriate input.

Application

  • Ultrasound System
  • Fans
  • Lab Instrumentation
  • Vacuum Cleaners
  • Video Communications System
  • IP Phone: Wired
Specification
Operating Voltage Range 4.5 V-5.5 V DC
Package DIP14
Typical Frequency (Fmax) 50 MHz
Input Current 20 mA
Powering Current 25 mA
Temperature Range -65 °C - 150 °C


Pin Configuration

Input (1D, 2D) 2, 12
Inverting Output  (1Q', 2Q') 6, 8
Non-Inverting (1Q, 2Q) 5, 9
Clock (1CLK, 2CLK) 3, 11
Enable Pin (ENP, ENT) 4, 10
RESET (R') 1,13
Power Supply (VCC) 14
Ground (GND) 7
Country of Origin China
