Description

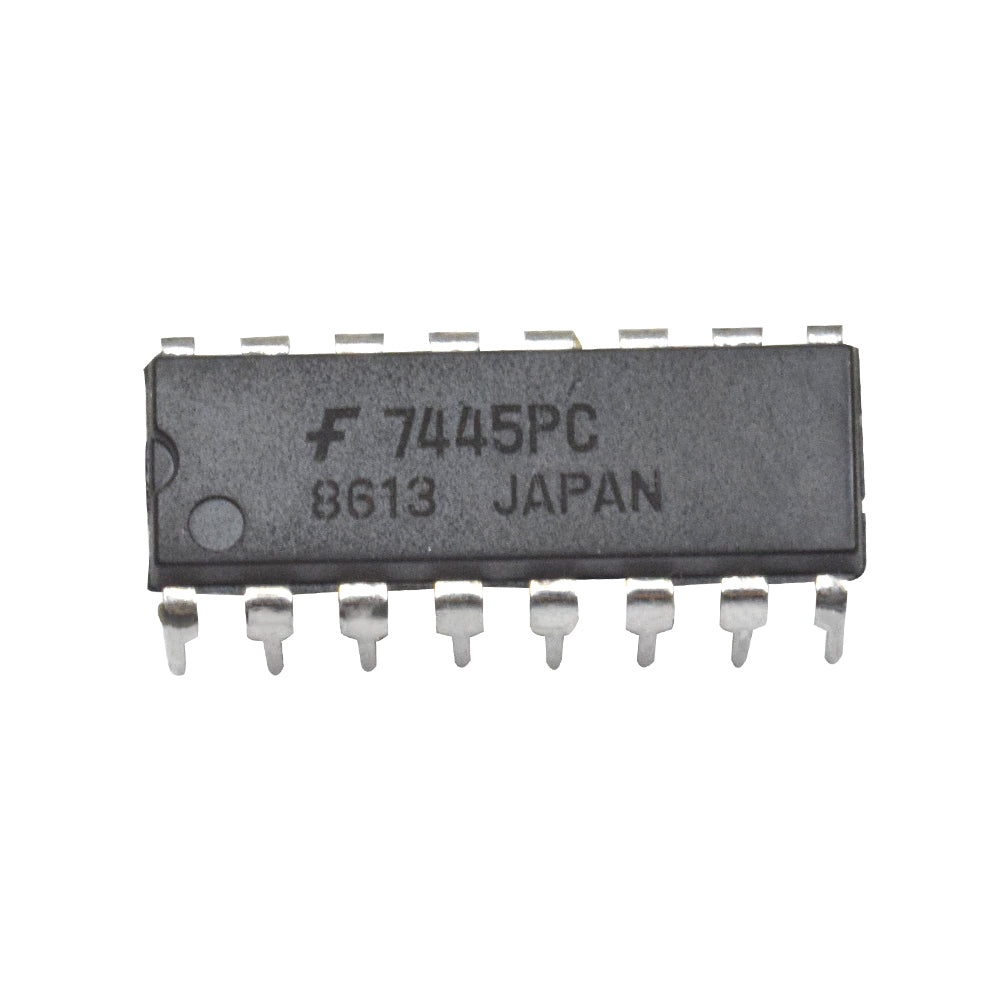

This is a 7445PC BCD to Decimal Decoders/Drivers IC. The Eight inverters and ten four-input NAND gates make up these BCD-to-decimal decoders/drivers. The inverters are connected in pairs to provide BCD input data for decoding by the NAND gates. For all invalid(10-15) binary input conditions, full decoding of BCD input logic ensures that all outputs remain OFF. These decoders have high-performance NPN output transistors that can be used as indicator/relay drivers or open-collector logic-circuit drivers.
Features
-
Full decoding of input logic
-
80 mA sink-current capability
-
All outputs are off for invalid BCD input conditions
Specifications
| Model | 7445PC |
| Type |
BCD to Decimal Decoders/Drivers IC |
| Mounting Type |
Through Hole |
| Supply Voltage |
5V |
| Pitch |
2.5mm |
| Number of pins | 16 |
| Package | DIP-16 |
| Country of Origin | China |
