Description

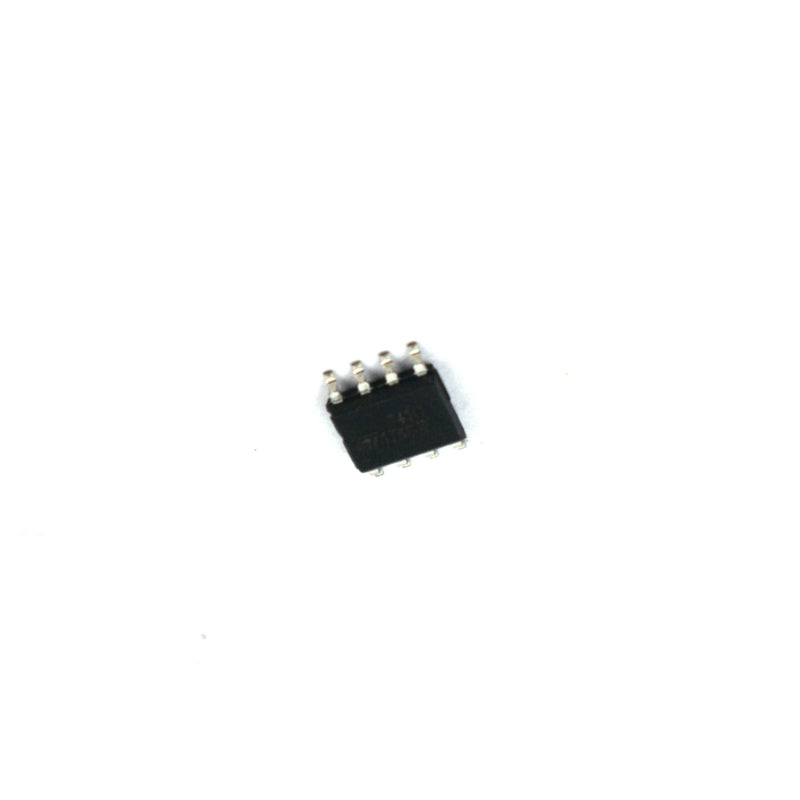

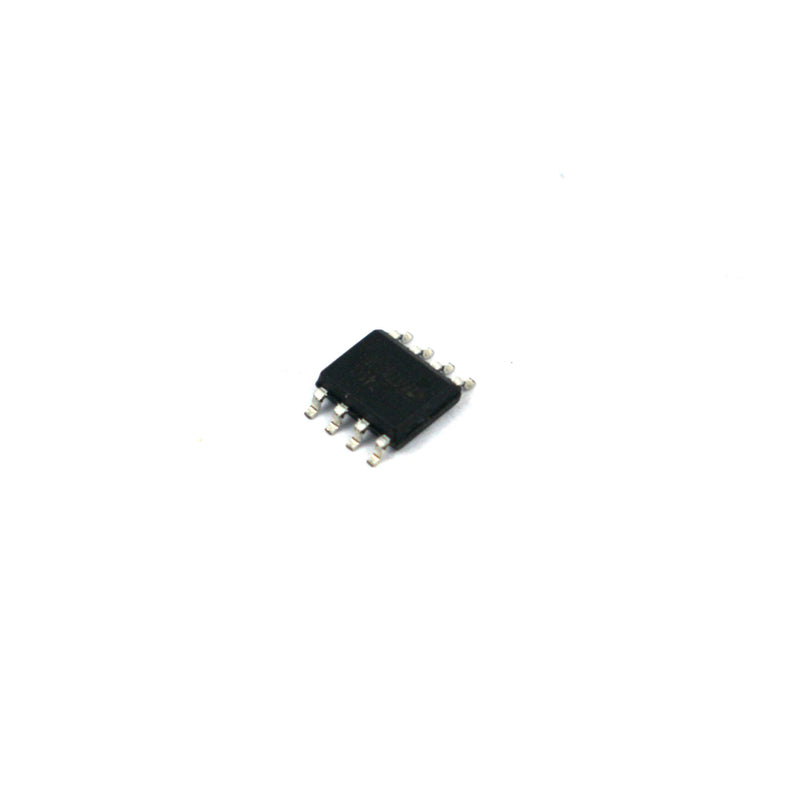

The 741C is a single silicon chip monolithic operational amplifier with high performance. It is intended for use in a variety of analog applications. Superior performance in integrators, summing amplifiers, and general feedback applications is provided by the high gain and wide operating voltage range. The internal compensation network (6 dB/octave) ensures closed-loop circuit stability.
Features
- Large input voltage range
- No latch-up
- High gain
- Short-circuit protection
- No frequency compensation required
- Same pin configuration as the UA709
Applications
- Summing amplifiers
- Voltage followers
- Integrators
- Active filters
- Function generators
Specifications
| Model | UA741C |
| Brand | STMicroelectronics |
| Mounting Type | SMD |
| No. of Pins | 8 |
| Package | SO8 |
| Storage Temperature Range | 0°C to +70°C |
| Supply Voltage | 5V to 40V |
| Common Mode Input Voltage Range | ±12V |
| Country of Origin | China |
