Description

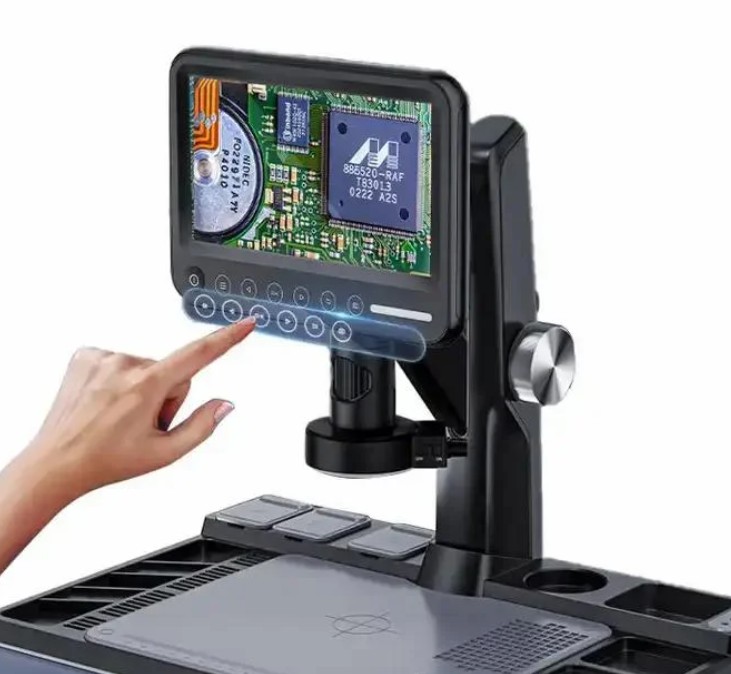

The 7-inch LCD Digital Microscope GI318 is an ideal tool for mobile repair and PCB inspection tasks. With its powerful 1600X magnification, it provides detailed views of intricate components. The photo mode offers customizable settings such as photo delay for precise timing, adjustable photo pixel and quality settings for high-resolution images, and options for sharpness and color adjustment. It also includes ISO and exposure compensation controls for optimal image capture in various lighting conditions. The microscope's photo-assisted settings and date label options further enhance workflow efficiency. Overall, the GI318 is a versatile and reliable tool for professionals in electronics repair and inspection.
Feature
- Digital 1600X Profocal Electron Microscope
- Industrial grade profocal lens * Touch control
- 12 million HD pixels
- 2.4G wireless remote control
- LED shadowless lamp
- Support photography and video
- 1600x magnification
- Maintenance workbench
- 7inch IPS screen
- 3000mAh battery
- Support 128G memory card
Specification:
- Theory: Video Microscope
- Drawtube: Monocular
- Light: LED shadow-less lamp
- Viewing screen: 7-inch IPS HD display
- Pixel: 1200P
- Magnification: 1600X
- Knob focus range: 10MM-50MM
- Support System: Windows XP, Vista, Win7/8/10/11,Mac11.0 or above
- Video format: AVI
- Material: ABS, multi-coated optical glass lens
Application: Electronic component amplification
Function Mobile repair, biological research, Jewelry
inspection
