Description
- Ideal for Through-hole applications.
- Used in the fields of electronic products, household appliances and more.
-

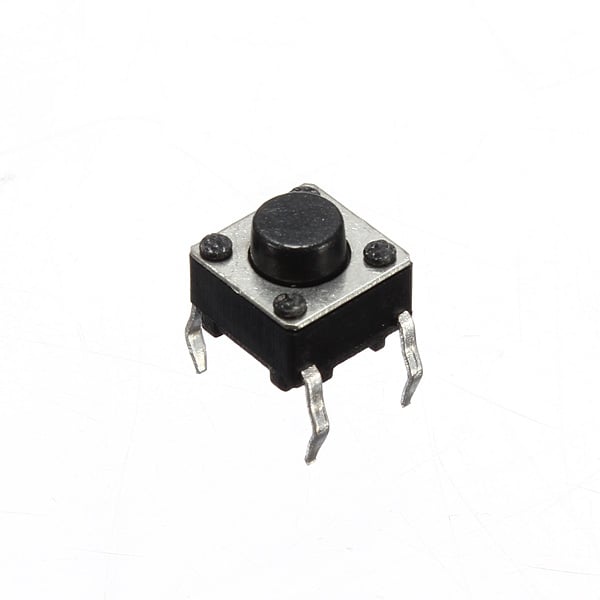

This light touch switch is waterproof, prevent oil, anti-pollution, anti-static interference.
Operating Voltage (VDC) 12
Max. Operating Current (mA) 50mA
On/Off Function Push to ON
Switch Type Momentary
Contact Type Through-hole
Contact Material Brass
Contact Resistance 50mΩ
Insulation Resistance (MΩ) 100
Operating Temperature (°C): -20 to 70
Operation Force 1.56 +/- 0.5 N
Operation Stroke 0.25+0.2/-0.1mm
Body Material Plastic
Mech. & Electrical Lifecycle ≈ 50000
Protection Standard IP65
Length (mm): 12
Width (mm): 12
Height (mm): 7
Weight (g): 1 (approx) (each)
Shipping Weight 0.02 kg Shipping Dimensions 8 × 6 × 5 cm
