Description

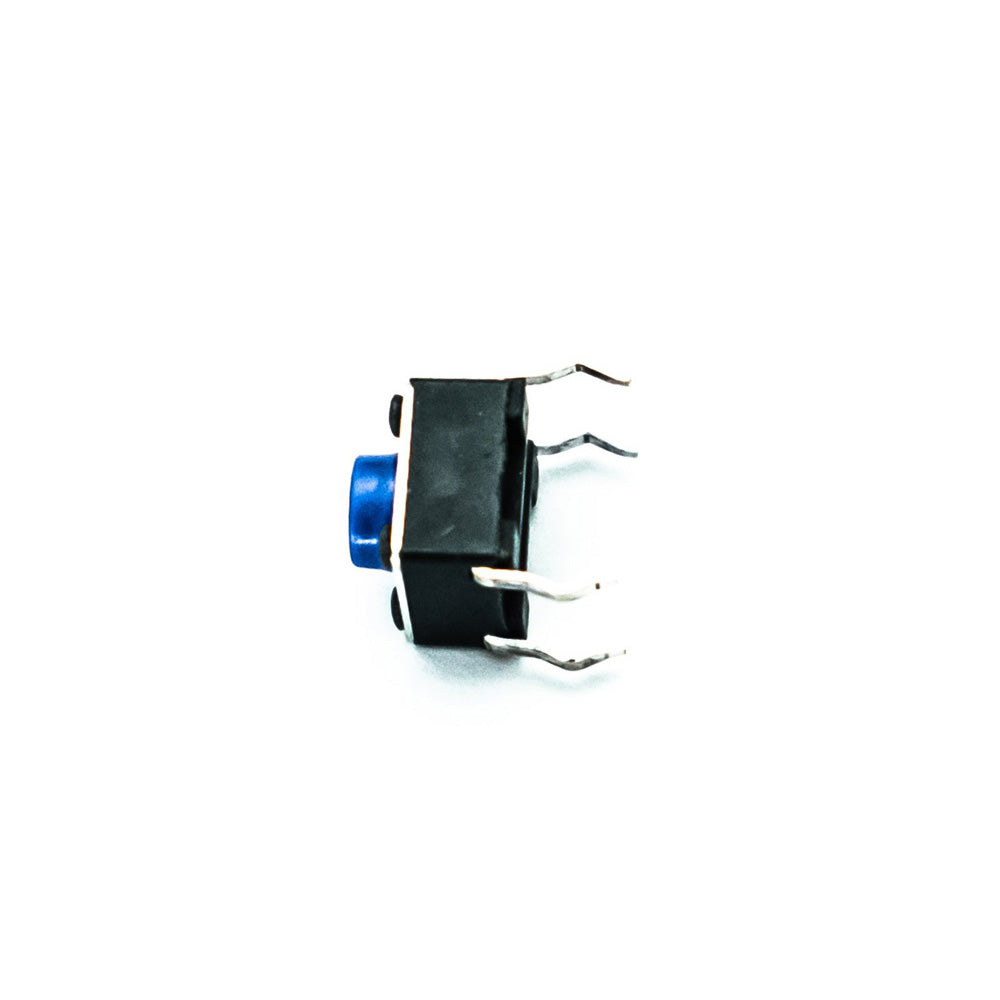

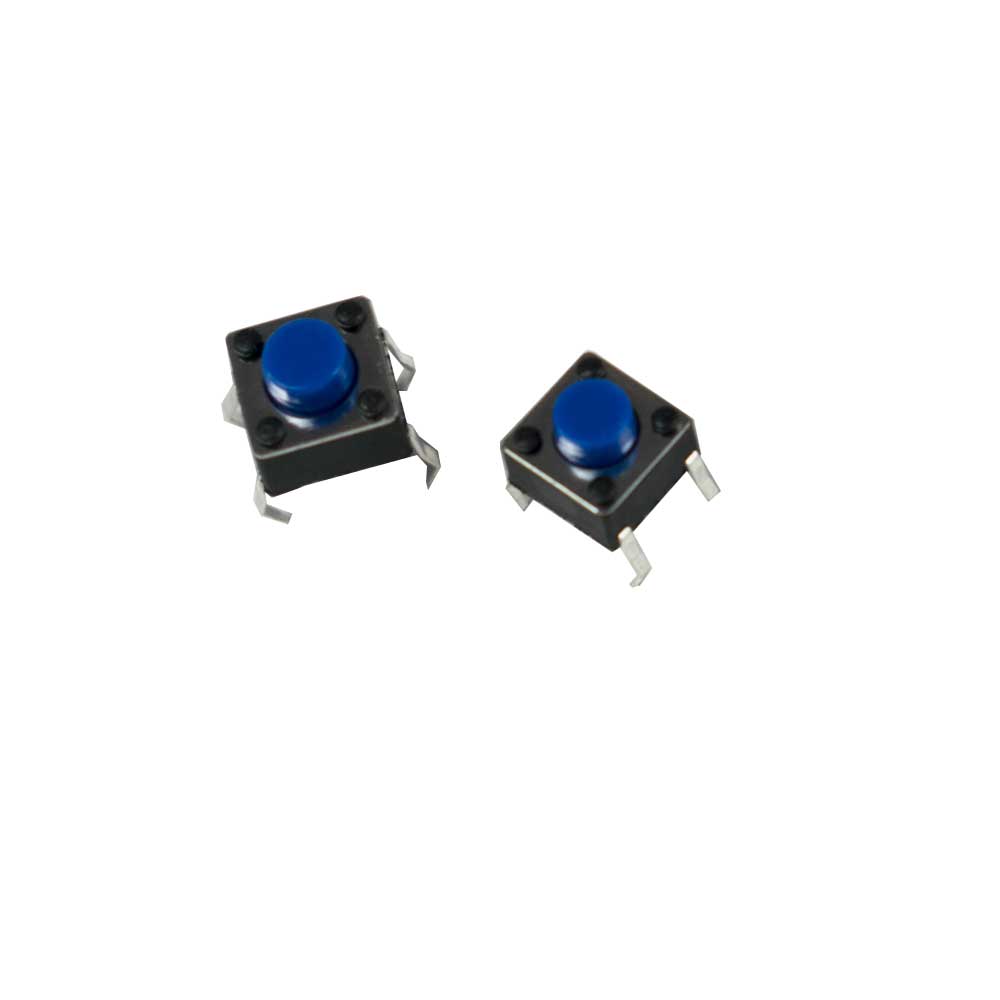

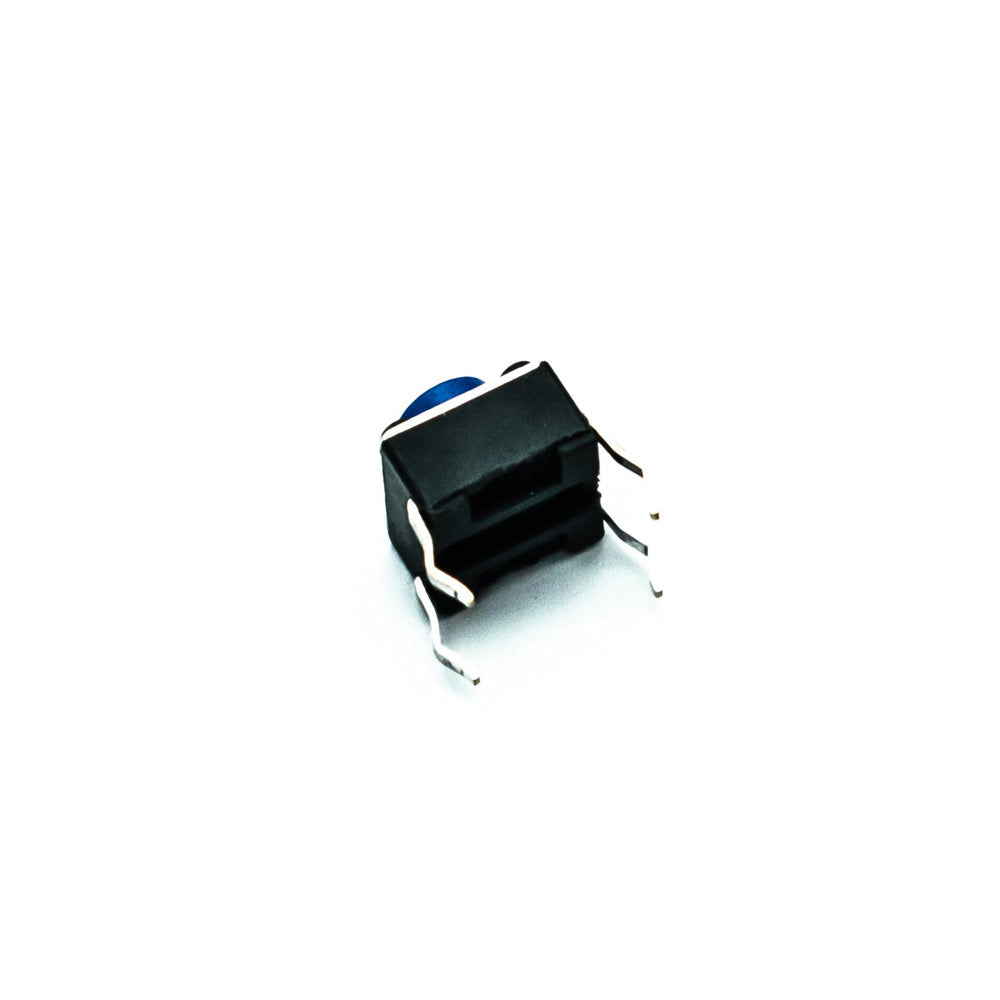

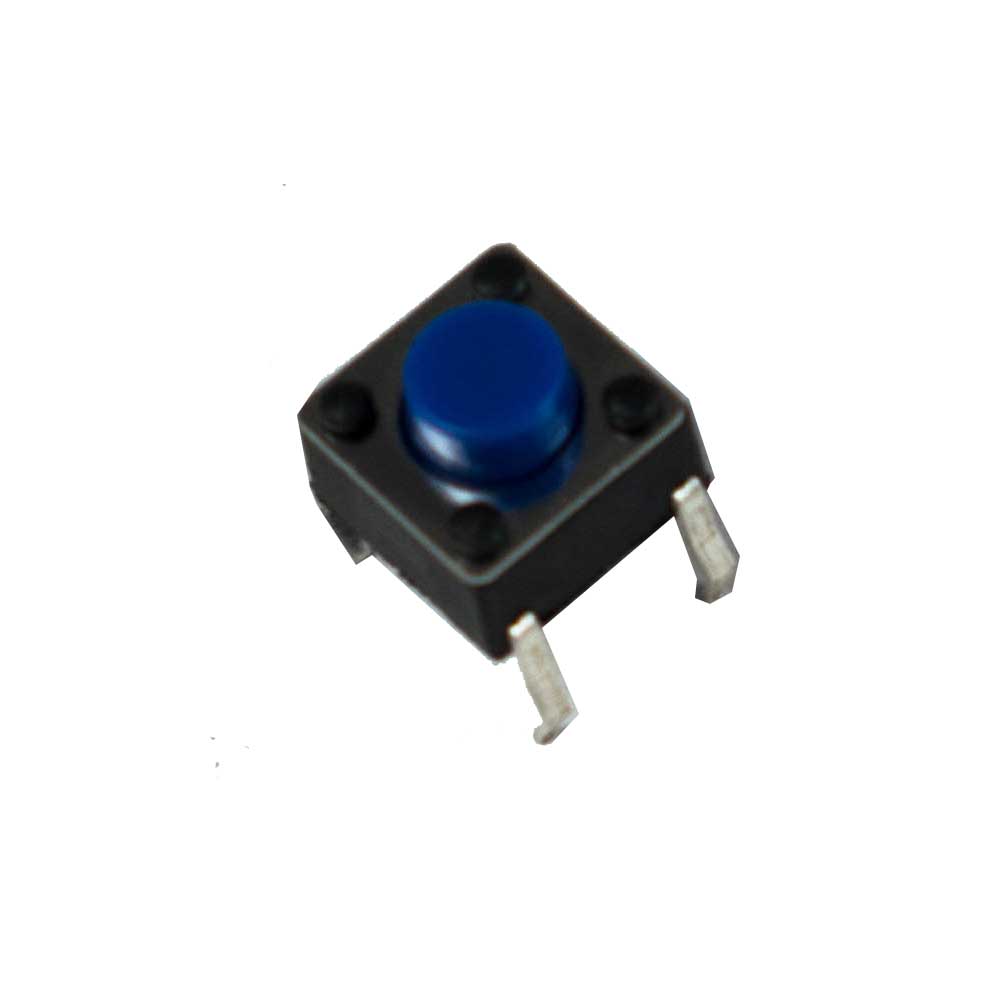

It's a 6mm Tactile Push Button 10xx Blue.The pins are normally open (disconnected) and when the button is pressed they are momentarily closed.
Features
- Up to 1 Million operations
- Blue in Colour from the top
- Actuation force of 1.6N to 2.5N
- Small PCB footprint
- Low profile
- 0.25 Actuation travel
- Operating temperatures of -35° up to +85°
- Switches | SPST Switches | Tactile Switches
Specifications
| Package | 10xx |
| Length | 6 mm |
| Width | 6 mm |
| Colour | Blue |
| Insulation | >100 MΩ |
| Contact resistance life | 100000 times |
| Country of Origin | China |
