Description

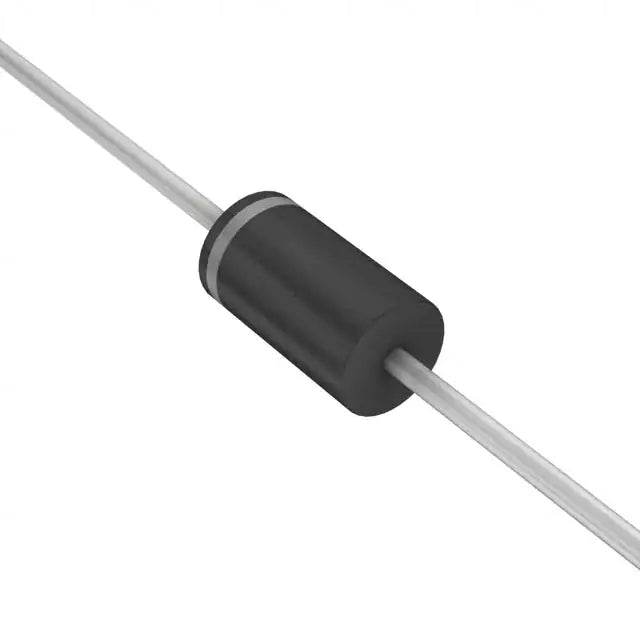

6A10 is a 1000 Volt 6 Ampere Power Diode that enables uncontrolled rectification of electricity and is used in applications such as battery charging and DC power supply, as well as AC rectifiers and inverters. 6A10 diode for medium power, low frequency applications. Max Reverse Voltage is 1000V, Forward Current is 6.0A, Surge Current is 400A and Forward Voltage is 0.9V. This diode is a low-cost general-purpose diode used in circuit protection and voltage converters.
Features:
- Low power loss.
- Fast switching.
- High efficiency.
- High surge capability.
- High current capability.
- Low forward voltage drop.
Applications:
- Polarity protection applications.
- For high frequency.
- Inverters.
- Converters.
- Free wheeling diode.
Specifications:
| Model | 6A10 R-6 Silicon Rectifier Diode |
| Package | R-6 |
| Type | Silicon Rectifier Diode |
| Current | 6A |
| Voltage | 1000V |
| Maximum RMS Voltage | 700V |
| Number of Terminals | 2 |
| Maximum DC Blocking Voltage | 1000V |
| Maximum Average Forward Rectified Current | 6A |
| Maximum Surge Current | 400A |
| Minimum Operating Temperature | -65 Degree Celcius |
| Country of Origin | China |
