Description

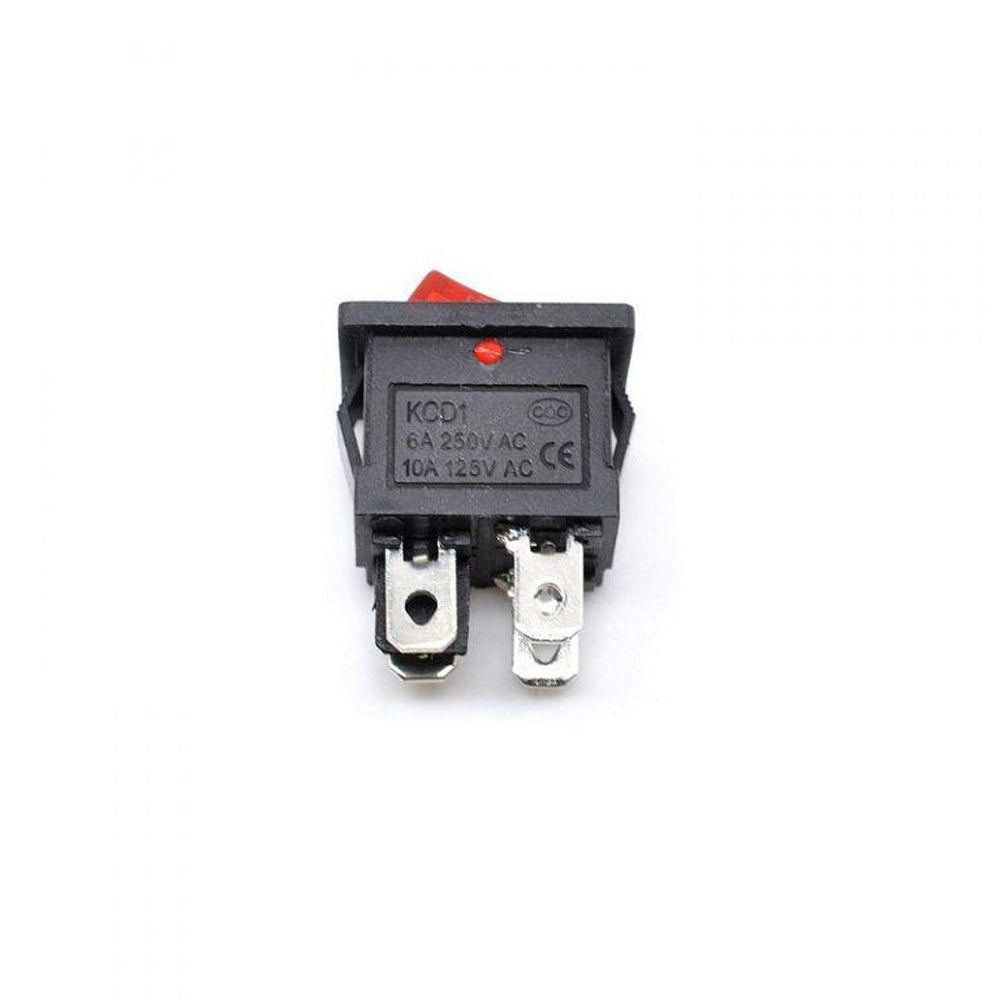

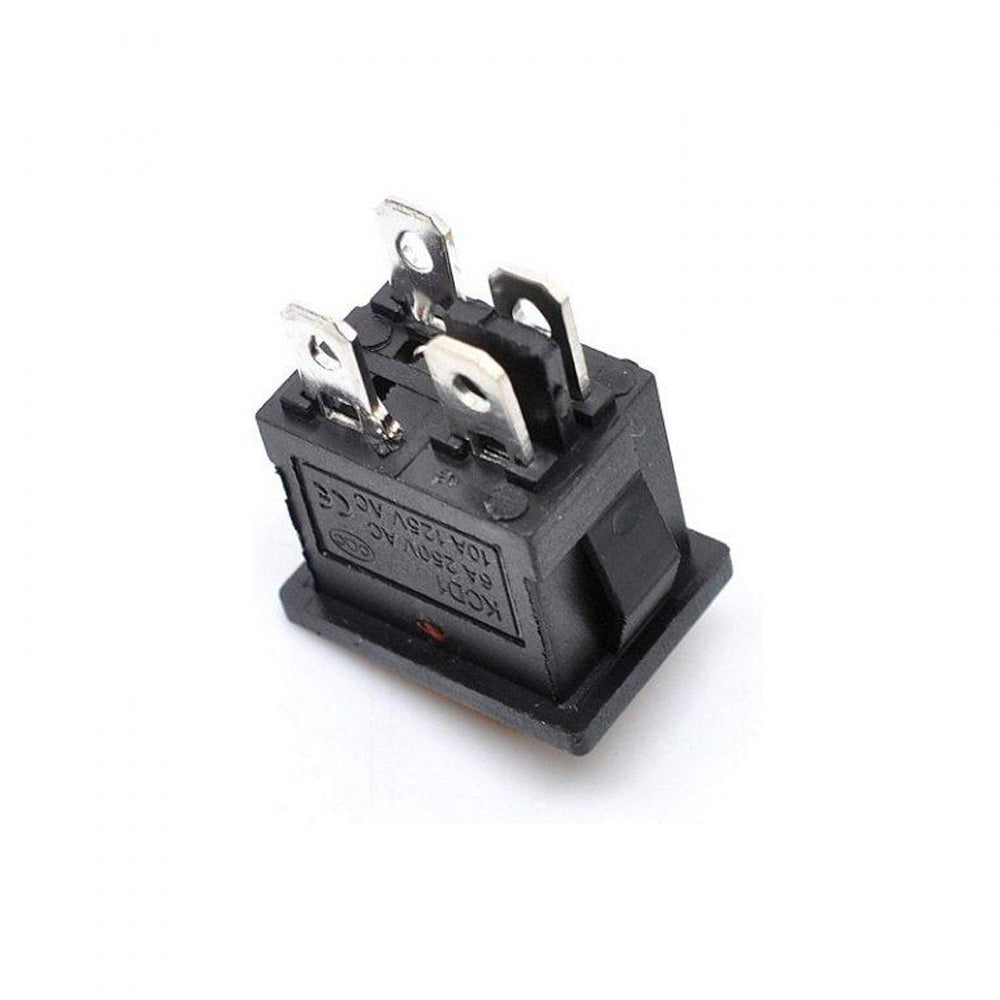

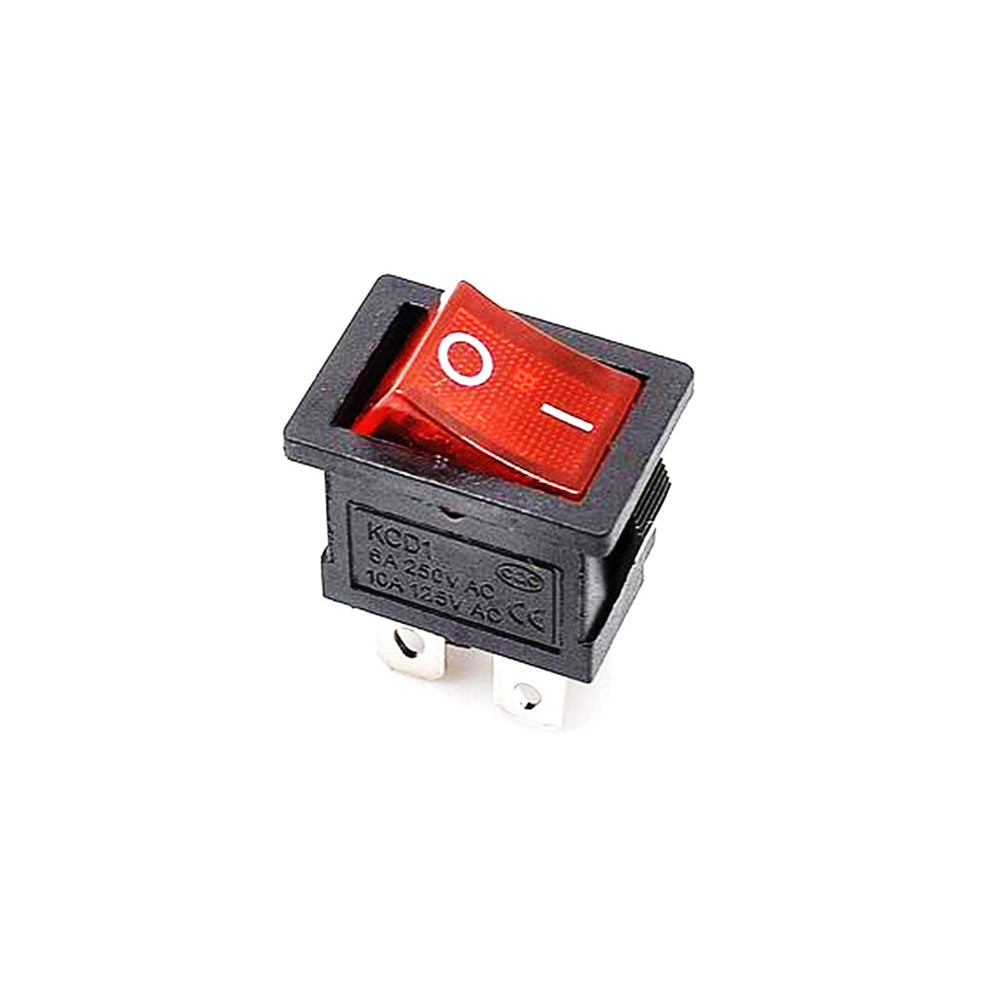

SPDT (Single Pole Double Throw) Rocker switch is the most basic power control switch. SPDT rocker switch requires no nut-bolts or screw for its installation. This switch also features a Red LED light in it. There are two positions of this switch i.e, ON and OFF which are also marked on it as I and O respectively which helps users to detect its position. This switch is rated for 6A 250V AC and 10A 125V AC. This switch has a long switching life of around 50000 to 100000.
Specifications
| Voltage and Current Rating | Max 6A at 250VAC and 10A at 125VAC |
| Switching Mode | ON-OFF |
| Structure | SPDT |
| Colour | Red |
| Number of Pins | 4 |

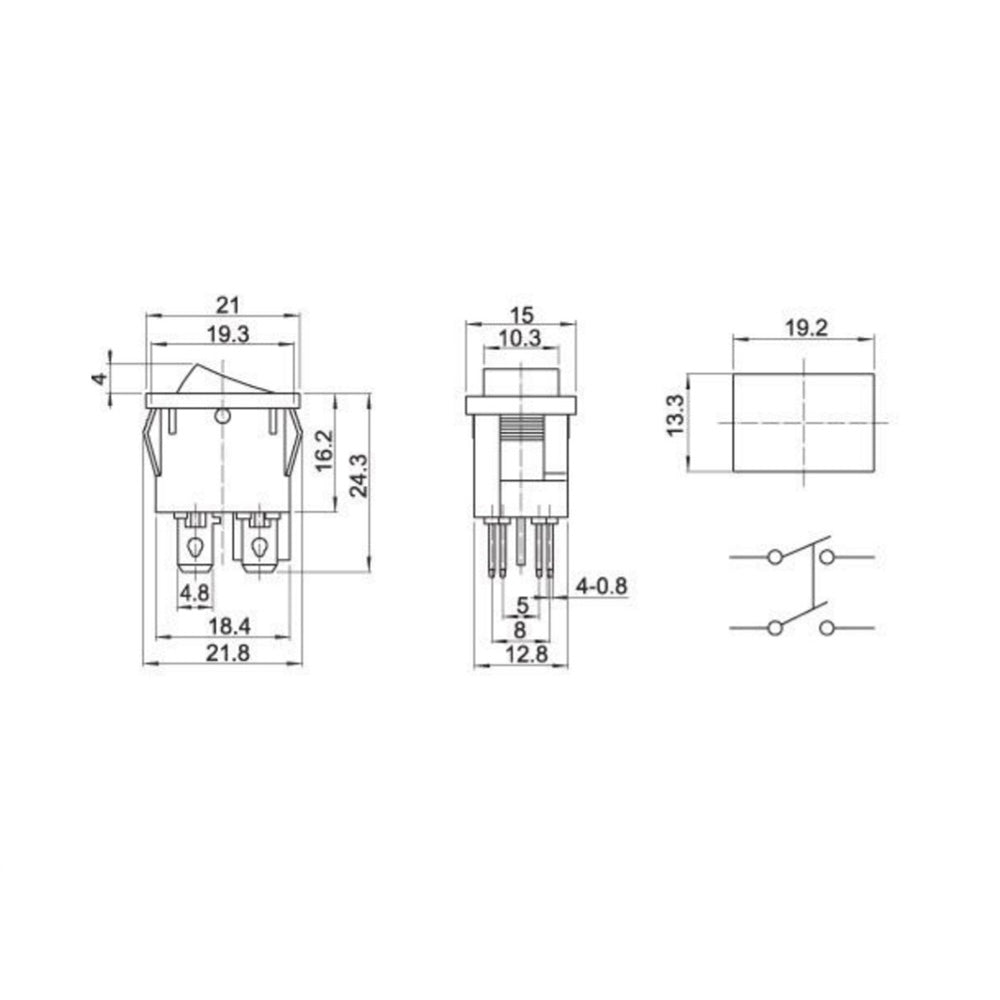

| Dimension (LxWxH) | 21x15x16 (mm) |
| Panel Cut-Out(LxW) | 17x13 (mm) |
| Model Number | KCD1-104 |
| Country of Origin | China |
