Description

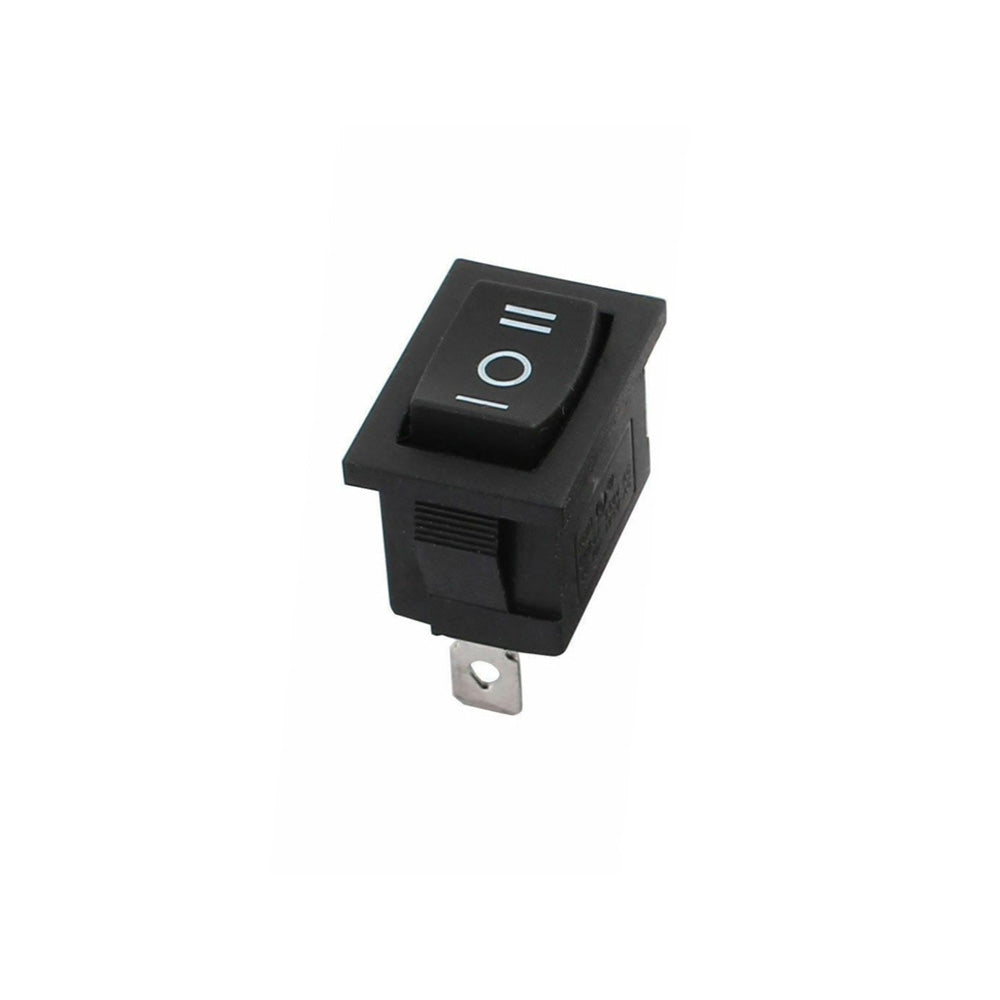

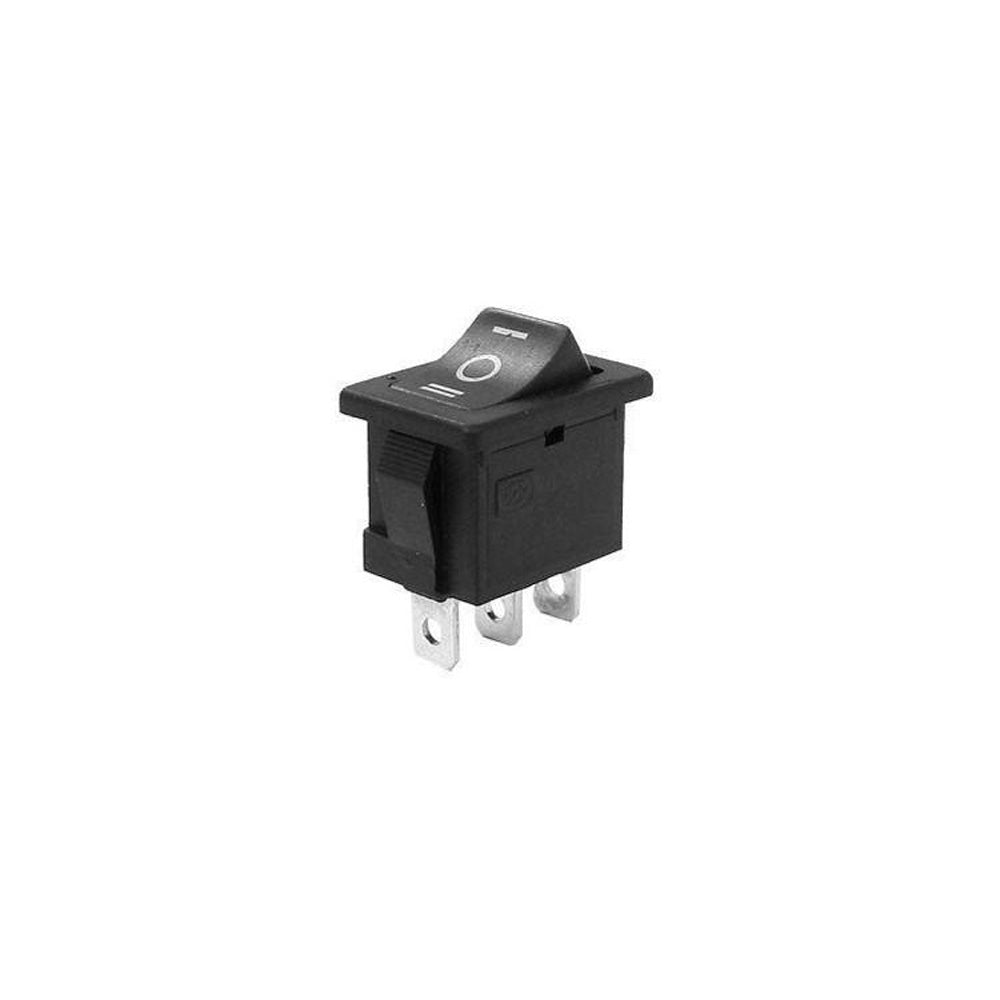

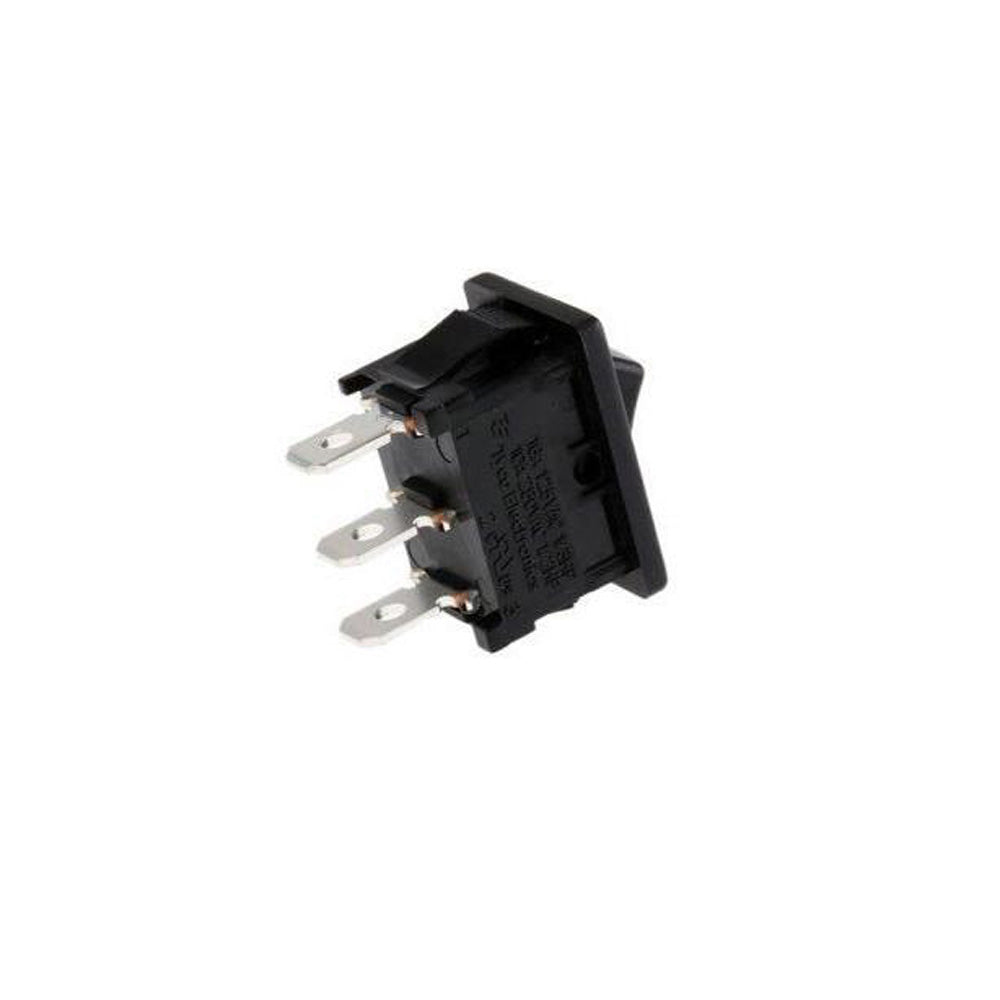

This is an SPDT (Single Pole Double Throw) switch which has three positions ON, OFF and ON. SPDT mini Rocker switch is rated for a load of 6A 250V and 10A 125V. This switch has three terminals in it. Positions are clearly marked on the button to make it easy for users to identify its position. ON, OFF and ON are marked as I, O and II respectively. This switch can be used to control the clockwise and anti-clockwise motion of a motor.
Specifications
| Rating | 6A @ 250VAC 10A @ 125VAC |
| Switching Mode | ON-OFF-ON |
| Structure | SPDT |
| Number of Pins | 3 |
| Material | Plastic and Metal |
| Mounting hole diameter | 20-30 mm |
| Dimension (LxWxH) | 21x15x23 (mm) (Including Pins Height) |
| Panel Cut-out(mm) | 17x13 (mm) |
| Country of Origin | China |
